Product Details
Place of Origin: Shenzhen, China
Brand Name: ZKMNET
Certification: CE,ISO9001
Model Number: ZKManet1102R
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD 9999~10999
Packaging Details: Brown Carton
Delivery Time: 5-8 working days
Payment Terms: T/T, Western Union, Western Union
Supply Ability: 10000 pieces per year
Frequency: |
300MHz-2.7GHz Customizable |
Modulation Type: |
QPSK(4QAM), 16QAM, 64QAM |
Bandwidth: |
2-8MHz |
Range: |
1~3KM |
Video Compression: |
H.264 |
Encryption: |
AES256 |
RF Interface: |
N-F |
Dimensions: |
300*200*30mm |
Frequency: |
300MHz-2.7GHz Customizable |
Modulation Type: |
QPSK(4QAM), 16QAM, 64QAM |
Bandwidth: |
2-8MHz |
Range: |
1~3KM |
Video Compression: |
H.264 |
Encryption: |
AES256 |
RF Interface: |
N-F |
Dimensions: |
300*200*30mm |

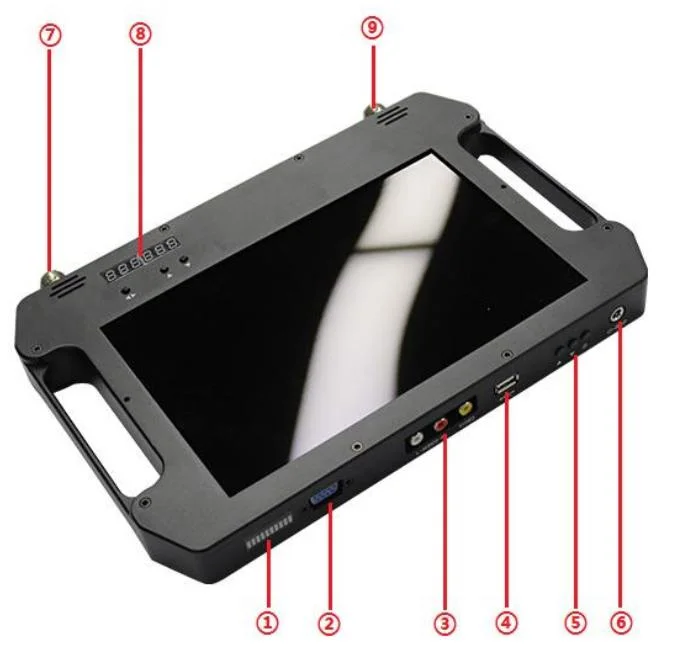

1W COFDM AES Handheld 10.1 Inch Radio Vido Data Receiver with Memory TF Card

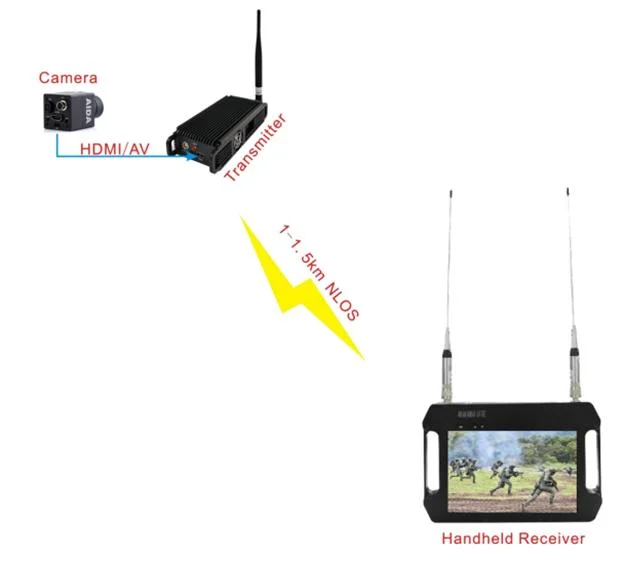

The ZKManet1102R is a completely portable handheld COFDM HD video receiver. Its lightweight and compact design, powered by batteries, makes it ideal for users seeking a discreet and fully mobile surveillance solution. The smart design minimizes setup time while ensuring dependable reception of both video and audio in non-line-of-sight (NLOS) conditions. Users can enhance the range by choosing different reception modes, booster amplifiers, and antenna types. Additionally, the unit can be paired with various antennas and RF accessories to extend its range even further.
* Support 300MHz-2.7GHz customization
* Portable design for easy operation
* 10.1 inch high brightness HD display
* Receiving signal under high-speed and NLOS conditions
* With AV output for connecting to external large display
* AES256 encryption
* Built-in battery up to 4 hours endurance
* Compact size and light weight
| Model | ZKManet1102R | |
| RF Parameters | Frequency | 300MHz-2.7GHz Customizable |
| Modulation | QPSK(4QAM),16QAM,64QAM | |
| Bandwidth | 2-8MHz | |
| Receiving Sensitivity | -106dBm | |
| Encryption | AES | |
| Range | 1-3km | |
| RF Interface | N-F | |
| Video Parameters | Screen | 10.1 inches HD |
| Video Output | HD:HDMI | |
| SD:RCA-F | ||
| Video Modulation | HD:1080P@60 | |
| SD:720*480 | ||
| Video Compression | H.264 | |
| Video Memory | TF Card(128G Max); | |
| File system:FAT32 | ||

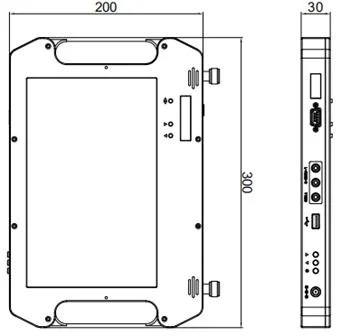

| Physical/Environment | Dimensions | 300*200*30mm |
| Weight | 1.5kg | |
| Working Temp | -10ºC~+65ºC | |
| Electronic Parameters | Power Supply | DC 12V |
| Battery Capacity | 4000mAh | |
| Power Consumption | <40dBm | |
