43dBm Rugged IP66 Manpack With 10~20km Long Range Radio Based Station Transmitter

 43dBm Rugged IP66 Manpack With 30km Long Range Radio Based Station Transmitter

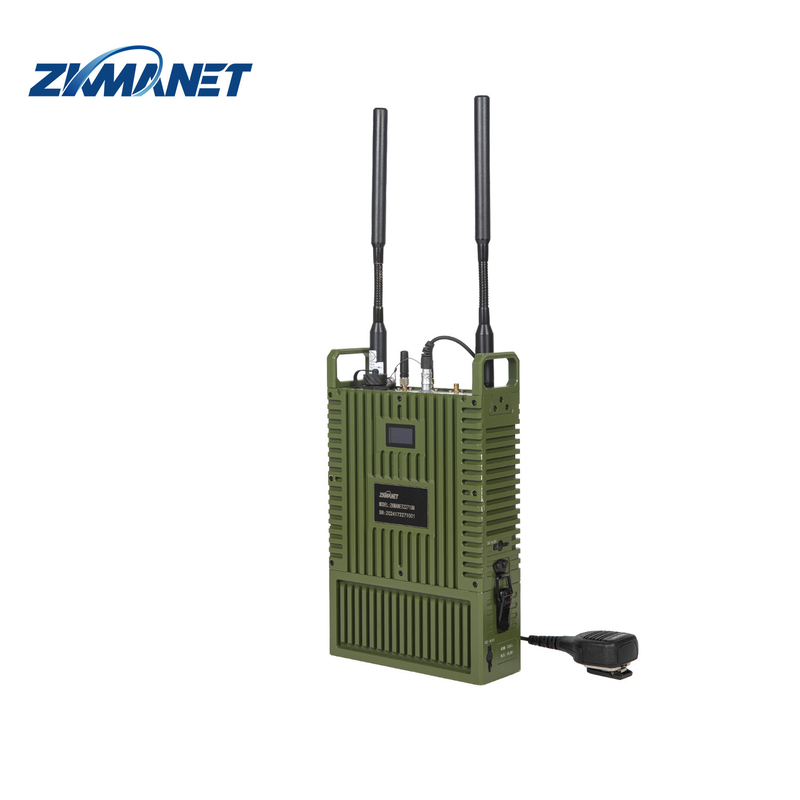

The ZKManet2271UM is a high-power MESH with an integrated design to provide more stable emergency networks and longer transmission distances in complex situations. The device has a data display screen, which can display the device status and device connection status in real time; It can be used individually, can also be used as a relay using a tripod, and can also be installed at a fixed point. With lithium battery power supply, the product appearance is simple and generous, easy to use, powerful function, high reliability.

* With SIM card slot, support 4G/5G
* Large bandwidth, point to point not less than 82Mbps
* Operating temperature range -40~+70ºC,Rugged IP66
* Support WIFI, GPS/BD positioning, PTT voice intercom

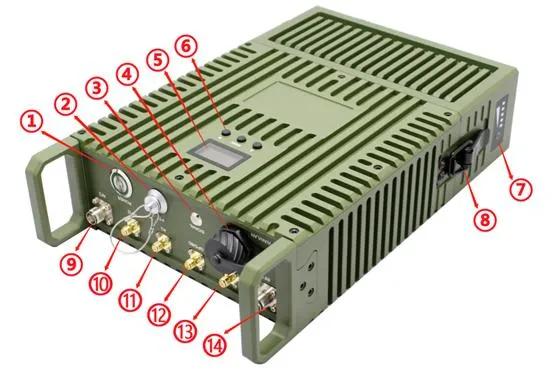

1. Power push button
2. PTT (Mic)
3. MESH signal indicator

SNR	Link Quality	Topology Color
SNR ≥ 17	Excellent	Deep Green
12 ≤ SNR < 17	Good	Light Green
7 ≤ SNR <12	Fine	Yellow
2 ≤ SNR <7	Medium	Orange
-10 < SNR <2	Bad	Red
SNR = -10	Disconnected	N/A

1. LAN interface, RJ45
2. Digital LCD indicator
3. Configuration buttons (optional) - set frequency, bandwidth and distance parameters.
4. Battery Indicator
5. Battery butterfly clasp
6. MESH antenna interface-2
7. WIFI antenna interface-2
8. 4G antenna interface
9. GPS/BD antenna interface
10. WIFI antenna interface-1
11. MESH antenna interface-1

1. Battery charging port
2. Main body power input port

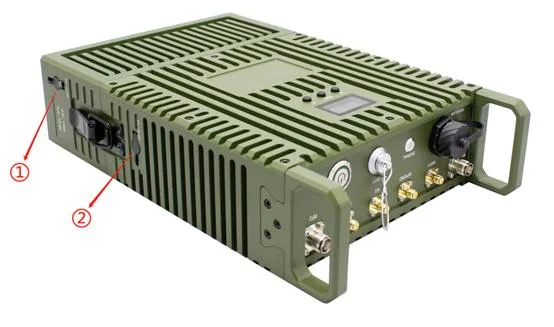

1. Battery charging port
2. Main body power input port

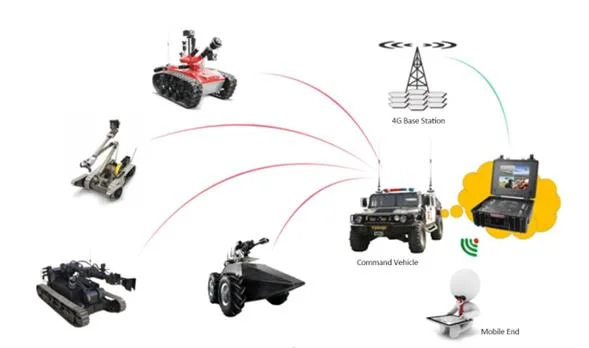

Zhongke Lianxun (Shenzhen) Technology Co., Ltd is a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, and police investigation communication systems, and police noncombat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc., suitable for law enforcement forces and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime. Especially the intelligent communication products of special robots have solved the long-distance communication and control problems of robots in complex environments.
