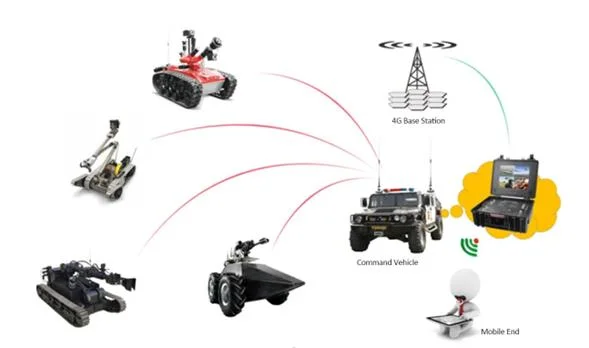

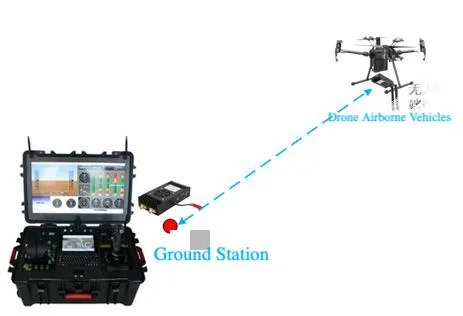

ZKManet2421UM is a compact and portable airborne device with HD and stable image quality. It adopts the current leading OFDM modulation technology, allowing for capturing high-quality images in high-speed motion and real-time transmission over non-line-of-sight (NLOS) conditions. During transmission, encryption is applied to the images and data, supporting frequency hopping at 800MHz, 1.4GHz, and 2.4GHz, with a transmission rate of 30Mbps and a range of 5-15KM for air-to-ground transmission. It is well-suited for long-term and high-data-flow wireless transmission applications.
* Range up to 5~15km(LOS)
* Supports 3 bands (800MHz/1.4GHz/2.4GHz)
* Supports FHSS
* IP transparent data transmission
* Compact size and light weight
* Rugged aluminum alloy housing
* Low power consumption
| Model |
ZKManet2421UM |
Brand |
ZKMANET |
| RF Parameters |
Frequency |
800MHz/1.4GHz /2.4GHz |
| Bandwidth |
1.4MHz/3MHz/5MHz/10MHz/20MHz |
| RF Channel |
1T2R |
| Output Power |
25dBm |
| Range |
5-15km (LOS) |
| Network Parameters |
Network Mode |
One-to-one and one-to-many |
| Data Rate |
30Mbps(Max) |
| Encryption |
ZUC/SNOW3G/AES Optional |
| Conflict Handling |
frequency adjustment or bandwidth reduction |
| Physical/Environment |
Dimensions |
102*52*21.5mm |
| Weight |
124g |
| Working Temp |
-40ºC~+65ºC |
| Electronic Parameters |
Power Supply |
DC12V |
| Power Consumption |
<37dBm |
| Other |
Data Interface |
RJ45*2,TTL*1 |

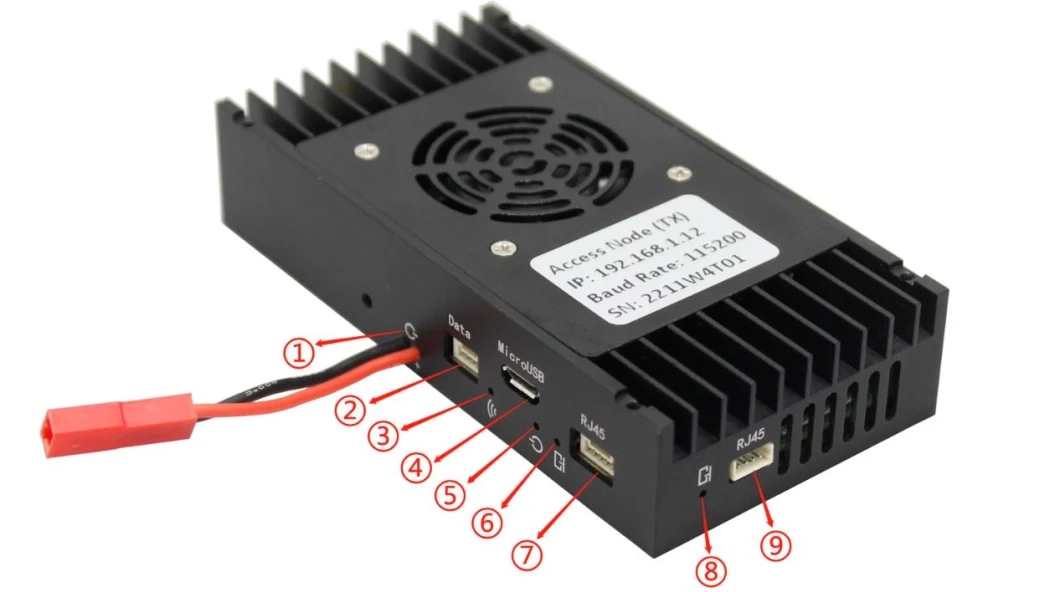

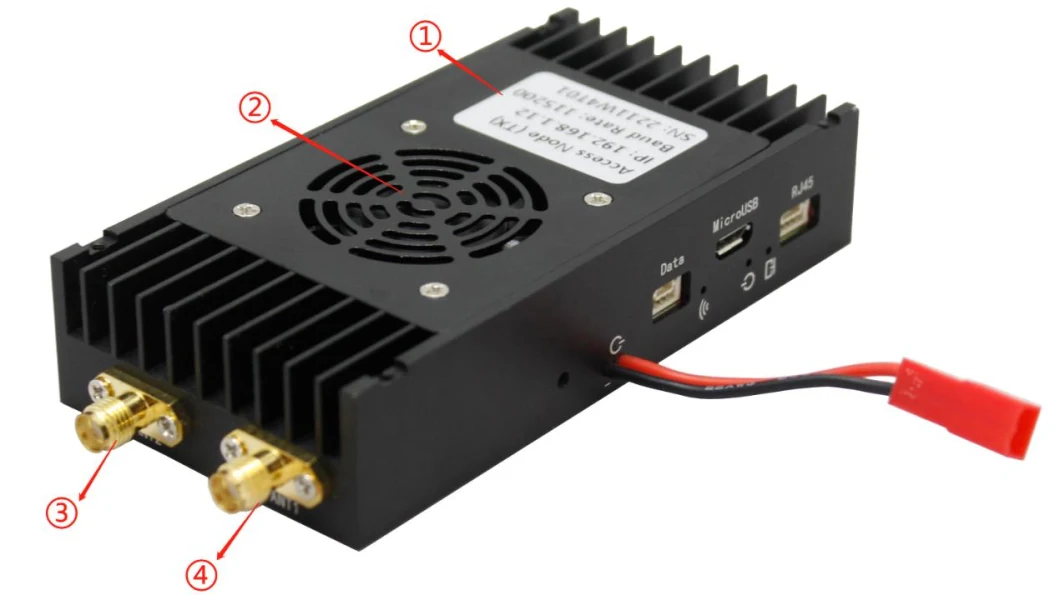

- Power Cables - power supply input line, red is VDD, black is GND
- Data UART Port (GND, Rx, Tx) - 3.3V TTL
- Link Status Indicator - When the device works as an access node, if the connection with the central node is normal, the indicator will be always on. When the device works as a central node, this indicator is off.
- Micro USB Port - For device software maintenance.
- Indicator (Red) for Power - Always on during normal operation.
- Indicator for Ethernet Port 2 - Flashes according to the data flow when works normally.
- Ethernet Port 2 (RN, RP, TN, TP) - Ethernet port 1 and 2 are internally bridged.
- Indicator for Ethernet Port 1 - Flashes according to the data flow when works normally.
- Ethernet Port 1 (RP, RN, TP, TN) - Ethernet port 1 and 2 are internally bridged.
- Product Label
- Air Inlet - for the cooling fan
- ANT2 Port - Auxiliary antenna, works as auxiliary receiving, NO transmitting.
- ANT1 Port - Main antenna, work mode is TDD transmitting/receiving.
