Light Weight 124g 300mW Long Range 5-15km Drone Video Data Link Radio Transmitter

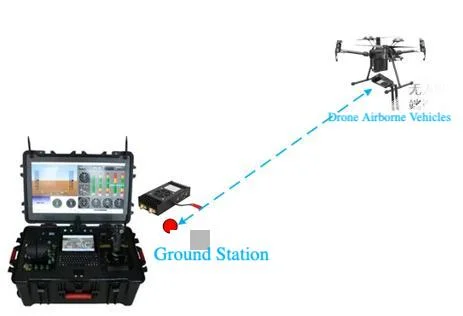

ZKManet2421UM is a compact and portable airborne device with HD and stable image quality. It adopts the current leading OFDM modulation technology, allowing for capturing high-quality images in high-speed motion and real-time transmission over non-line-of-sight (NLOS) conditions. During transmission, encryption is applied to the images and data, supporting frequency hopping at 800MHz, 1.4GHz, and 2.4GHz, with a transmission rate of 30Mbps and a range of 5-15KM for air-to-ground transmission. It is well-suited for long-term and high-data-flow wireless transmission applications.

* Range up to 5~15km(LOS)
* Supports 3 bands (800MHz/1.4GHz/2.4GHz)
* Supports FHSS
* IP transparent data transmission
* Compact size and light weight
* Rugged aluminum alloy housing
* Low power consumption

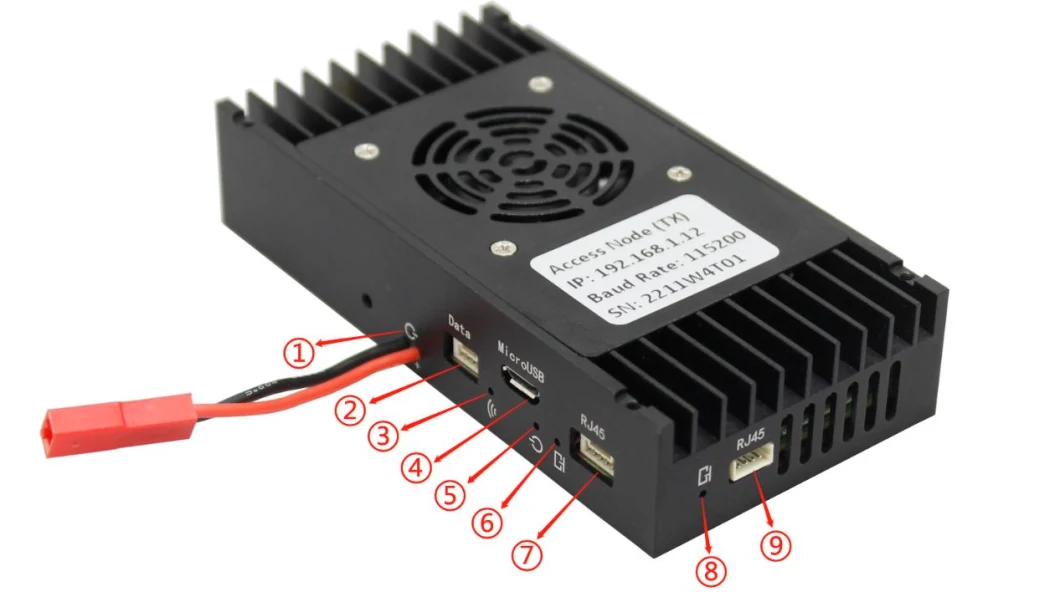

1. Power Cables - power supply input line, red is VDD, black is GND
2. Data UART Port (GND, Rx, Tx) - 3.3V TTL
3. Link Status Indicator - When the device works as an access node, if the connection with the central node is normal, the indicator will be always on. When the device works as a central node, this indicator is off.
4. Micro USB Port - For device software maintenance.
5. Indicator (Red) for Power - Always on during normal operation.
6. Indicator for Ethernet Port 2 - Flashes according to the data flow when works normally.
7. Ethernet Port 2 (RN, RP, TN, TP) - Ethernet port 1 and 2 are internally bridged.
8. Indicator for Ethernet Port 1 - Flashes according to the data flow when works normally.
9. Ethernet Port 1 (RP, RN, TP, TN) - Ethernet port 1 and 2 are internally bridged.

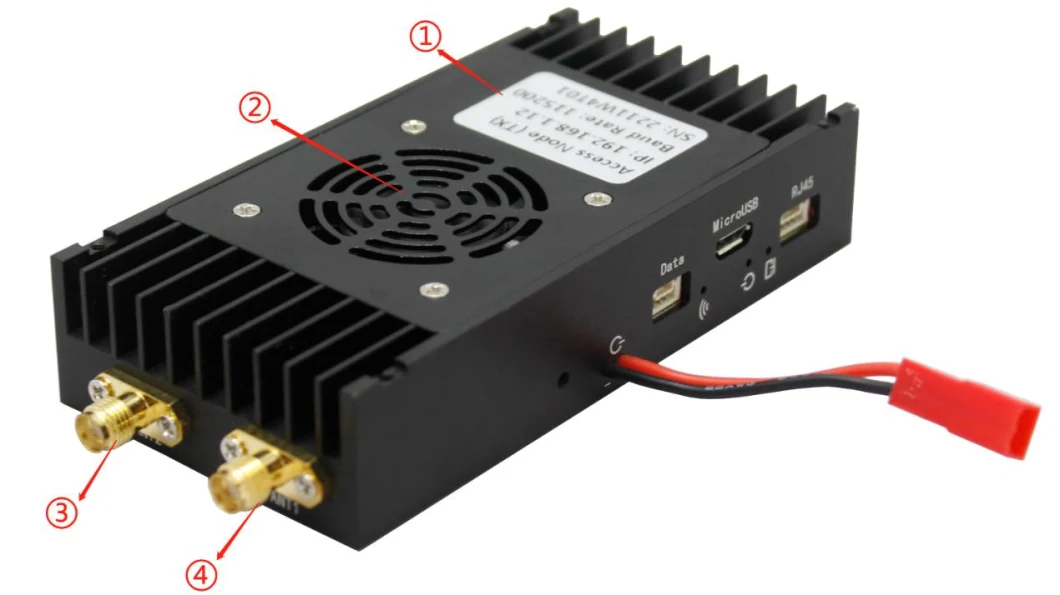

1. Product Label
2. Air Inlet - for the cooling fan
3. ANT2 Port - Auxiliary antenna, works as auxiliary receiving, NO transmitting.
4. ANT1 Port - Main antenna, work mode is TDD transmitting/receiving.
