360 Degree Horizontally 90 Degree Vertically GPS/BD UAV Video Data Communication Auto-Tracking Antenna Ground Terminal

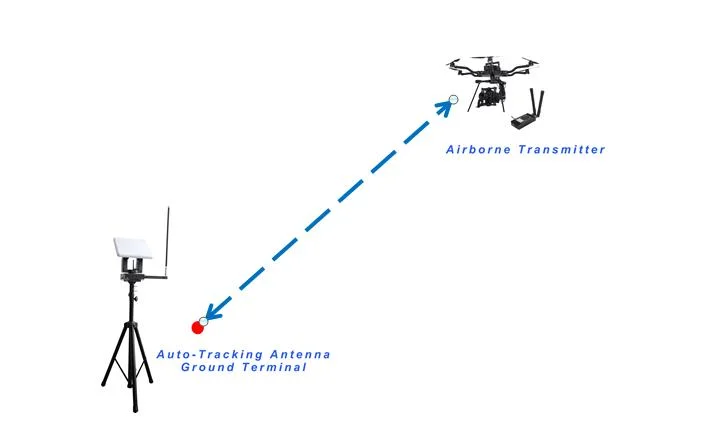

The ZKManet2401 is a ground terminal specifically crafted for long-range video data transmission. It incorporates an integrated GPS tracking module along with a wireless communication module. The airborne GPS module transmits GPS/BD coordinate data to the wireless communication module via a serial port, enabling seamless transmission. The ground terminal determines the pointing angle by comparing its own latitude and longitude with those of the airborne module. This alignment ensures that the ground panel antenna consistently points towards the airborne module, optimizing wireless reception and significantly enhancing the operational range. It features a 1T2R dual-antenna system, utilizing a high-gain directional antenna for both transmitting and receiving, as well as an omnidirectional antenna for improved signal reception, thereby enhancing overall transmission efficiency.

* 316mw power output for up to 20km range
* Automatic calibration algorithm at startup
* With main and sub (LoRa) dual links to ensure timely refreshing of GPS data
* Using 1T2R dual-antenna for more reliable transmission
* 360-degree twist-free slip ring

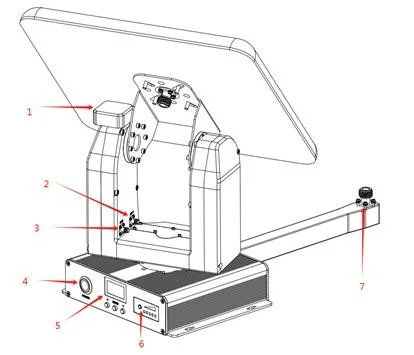

1. GPS Antenna
2. Directional panel antenna interface, SAM F
3. LoRa link antenna interface, SMA F
4. Power button
5. OLED screen (1.3") and configuration buttons (up, down and menu)
6. Battery indicator
7. Omnidirectional antenna interface, SAM F

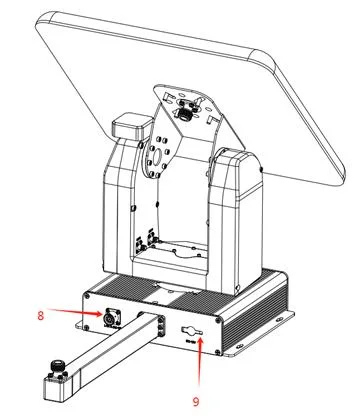

8. LAN & Serial port - 9 pin aviation connector (4 pins for LAN, 3 pins for TTL and 2 pins not used)
9. DC power input interface, waterproof
