Product Details
Place of Origin: Shenzhen, China
Brand Name: ZKMANET
Certification: CE, ISO9001
Model Number: ZKManet7561
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD 1999~4999
Packaging Details: Brown Carton
Delivery Time: 4 working weeks
Payment Terms: T/T, Western Union
Supply Ability: 10000 pieces per year
Working Mode: |
TDD LTE |
Modulation: |
QPSK/16QAM/64QAM |
Frequency: |
1447-1467MHz （400M/600M/ 1.4G/1.8G Customizable） |
Bandwidth: |
5/10/20MHz |
RF Channel: |
2T2R |
Output Power: |
43dBm |
Sensitivity: |
≤-101.5dBm |
Range: |
10-20km |
Working Mode: |
TDD LTE |
Modulation: |
QPSK/16QAM/64QAM |
Frequency: |
1447-1467MHz （400M/600M/ 1.4G/1.8G Customizable） |
Bandwidth: |
5/10/20MHz |
RF Channel: |
2T2R |
Output Power: |
43dBm |
Sensitivity: |
≤-101.5dBm |
Range: |
10-20km |

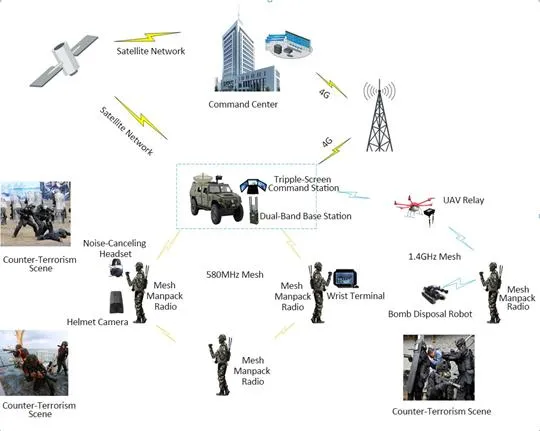

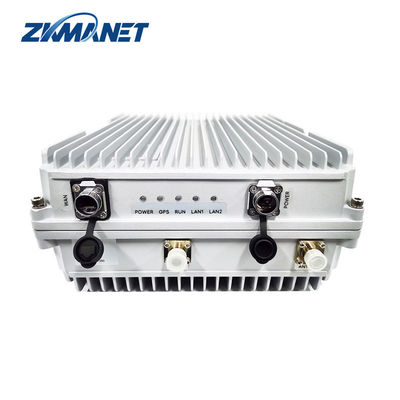

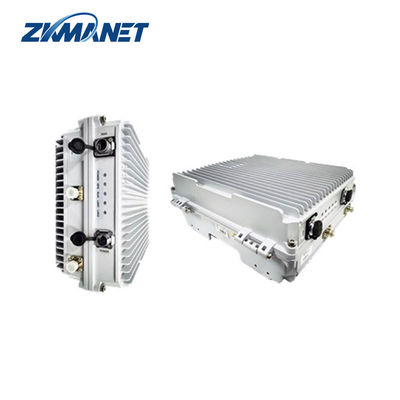

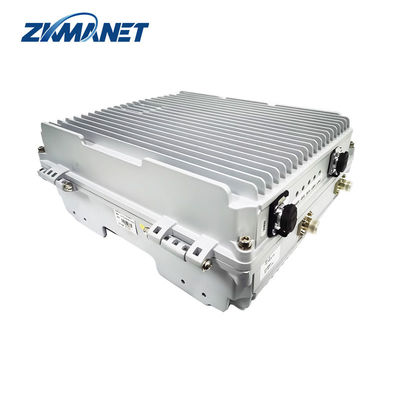

The ZKManet7561 is a highly integrated private network base station, mainly composed of baseband processing unit (BBU), remote radio remote unit (RRU) and EPC. It is a miniaturized LTE private network base station specially developed according to the needs of the private network communication market, supports dual-channel antenna configuration, works in the 1.4GHz band (400M/600M/1.4G/1.8G can be customized), supports 5MHz, 10MHz, 20MHz bandwidth. It is especially suitable for providing wireless coverage solutions for various industries in the private network communication market, such as smart cities, intelligent transportation, subways, tunnels, mines, petroleum, ports, armed police, civil air defense, emergency and other environments.
* Highly integrated EPC, BBU and RRU
* Based on TD-SCDMA technology
* MIMO dual-stream beamforming technology
* High safety USIM quintuple authentication and encryption
* Supports GPS/BD
* Rugged IP67
| RF Characteristics | |
| System Mode | TDD LTE |
| Frequency | 1447-1467MHz (400M/600M/1.4G/1.8G Customizable) |
| RF Channel | 2T2R |
| Output Power | 2*40dBm |
| 3GPP | Release 9 |
| Sensitivity | ≤-101.5dBm |
| Network Characteristics | |
| Authentication | USIM Quintuple Authentication |
| Up/Downlink rate | 40/80Mbps |
| Time Slot Ratio | cfg0,1,2,3 … 10 |
| Maximum Concurrent | 128 |
| Encryption | AES |
| Electrical Characteristics | |
| Working Voltage | AC 100-240V |
| Power Consumption | ≤1High Power |
| Physical Characteristics | |
| Weight | 15kg |

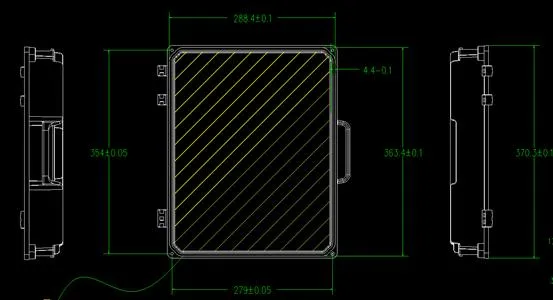

| Dimensions | 370*295*150mm |
| IP Rating | IP66 |
| Storage Temp. | -45ºC~85ºC |
| Working Temp. | -40ºC~75ºC |
Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.
Our Patents

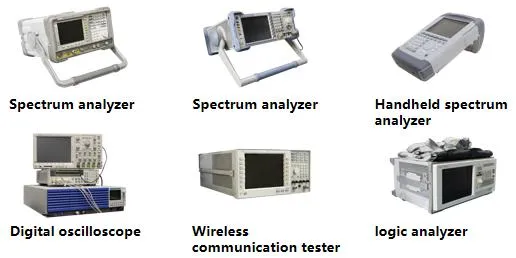

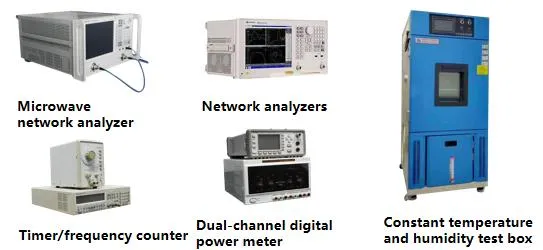

Test Equipments
