4W Long Range Customizable 56Mbps GPS/BD WIFI MESH Hdmi Video Transmitter And Receiver

Product Details

Place of Origin: Shenzhen, China

Brand Name: ZKManet

Certification: CE, ISO9001

Model Number: ZKManet3451

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 1999~9999

Packaging Details: Brown Carton

Delivery Time: 4 working weeks

Payment Terms: T/T, Western Union

Supply Ability: 10000 pieces per year

Get Best Price
Highlight:

wifi hdmi transmitter and receiver

,

hdmi video transmitter and receiver

,

hdmi video transmitter receiver

Frequency:
1300-1500MHz (70MHz-6GHz Customizable)
Channel Bandwidth:
2.5M/5M/10M/20MHz (40MHz Optional)
Output Power:
2x2W
Receive Sensitivity:
-100dBm@2.5MHz
FHSS:
Optional (>1000 Hop/s)
IFS:
Optional
Network Size:
8 Nodes Customizable
Range:
Long Range Customizable
Data Rate:
56Mbps
Delay:
7ms
Frequency:
1300-1500MHz (70MHz-6GHz Customizable)
Channel Bandwidth:
2.5M/5M/10M/20MHz (40MHz Optional)
Output Power:
2x2W
Receive Sensitivity:
-100dBm@2.5MHz
FHSS:
Optional (>1000 Hop/s)
IFS:
Optional
Network Size:
8 Nodes Customizable
Range:
Long Range Customizable
Data Rate:
56Mbps
Delay:
7ms
4W Long Range Customizable 56Mbps GPS/BD WIFI MESH Hdmi Video Transmitter And Receiver

4W Long Range Customizable 56Mbps GPS/BD WIFI MESH Hdmi Video Transmitter And Receiver

Product Description

The ZKManet3451 is an airborne Mesh radio that utilizes an FPGA solution. It supports adaptive frequency hopping and selection, automatically choosing the optimal frequency in the presence of electromagnetic interference. This enables broadband network self-organization and transmission in complex scenarios. It can be used in various communication combinations for different usage scenarios, such as on moving UAVs or USVs, allowing for easy plug-and-play operation without the need for configuration or parameter changes. It is primarily used for multimedia interconnection between drones and base stations, as well as serving as a Mesh relay node.

Features

* Data rate up to 56Mbps
* Full transparent IP data transmission
* With HDMI input
* Supports GPS/BD
* Supports 8 nodes cuatomizable
* With TTL and LAN interface



Quick Deployment

Mesh self-organizing network technology enables rapid mobile deployment, allowing for the establishment of a reliable wireless communication network in a short period of time to meet the timeliness requirements of emergency communications.



Strong Stability

Mesh self-organizing network technology features self-healing capabilities, ensuring that even if some devices fail, the entire network can continue to operate stably, preventing communication interruptions.



High Security

Advanced encryption algorithms and security authentication mechanisms are employed to effectively safeguard the security and confidentiality of communication data, preventing information leakage and malicious attacks. With FHSS of over 1000hops/s, it has strong capabilities for anti-search, anti-interception, and anti-jamming.



Specifications

RF Parameters
Default Frequencies 1300-1500MHz (70MHz-6GHz customizable)
Channel Bandwidth 2.5M/5M/10M/20MHz (40MHz optional)
RF Waveform TDD-COFDM (2T2R)
Output Power 2x2W, 1dBm step adjustable
Receive Sensitivity -100dBm@2.5MHz
Modulation Type BPSK/QPSK/16QAM/64QAM (adaptive)
FHSS Optional (>1000 hop/s)
IFS Optional
Network Parameters
Network Size 8 nodes customizable
Multi-hop Capability 15 hops (short message); 10 hops (voice); 8 hops (video)
Range Long range customizable
Data rate Up to 28Mbps@10MHz & 56Mbps@20MHz
Delay 7ms@2.5MHz/hop
Movement Speed >1000km/h
Start Time 27s
Positioning GPS/BD/GLONASS (GNSS)
Network Access Time <1s
Network Extension WIFI AP
Electrical Parameters
Working Voltage 12-36V DC
Power Consumption ≤237dBm
Physical/Environment
Weight 475g
Dimensions 120*90*40mm
Working Temp. -40°C~70°C
Interface
LAN Interface *1
Serial Interface RS232*1 (Or TTL)
Video Interface Mini HDMI*1

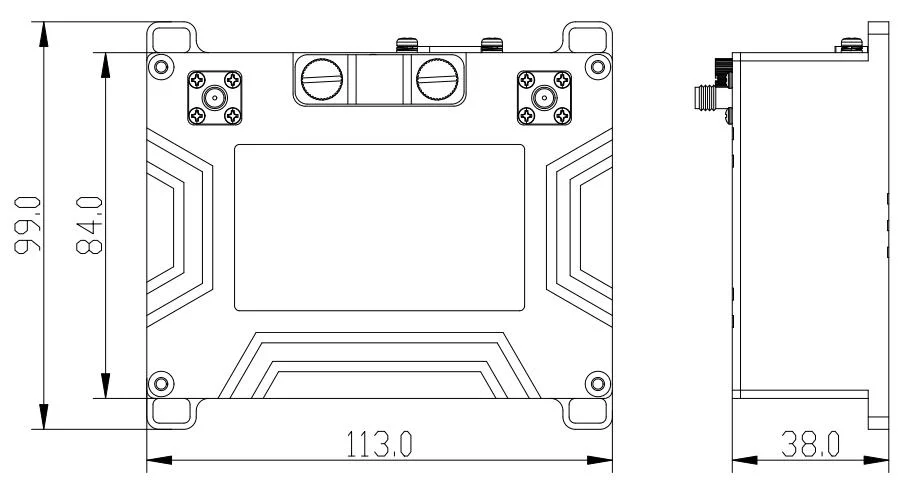

Dimensions

4W 56Mbps Long Range 70~120km Uav Radio Video Data Link Transmitter

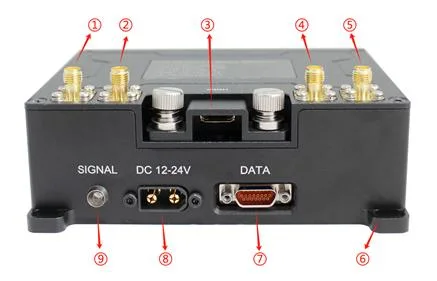

Panel Description

4W 56Mbps Long Range 70~120km Uav Radio Video Data Link Transmitter
  1. MESH antenna interface-2, SMA F
  2. WIFI/LoRa antenna interface, SMA F
  3. HDMI input interface, Mini HDMI
  4. GPS antenna interface, SMA F
  5. MESH antenna interface-1, SMA F
  6. Mounting hole x4
  7. LAN/TTL interface
  8. Power input interface (XT60)
  9. Signal Indicator
SNR Link Quality Topology Color
SNR ≥ 17 Excellent Deep Green
12 SNR < 17 Good Light Green
7 SNR <12 Fine Yellow
2 SNR <7 Medium Orange
-10 < SNR <2 Bad Red
SNR = -10 Disconnected N/A

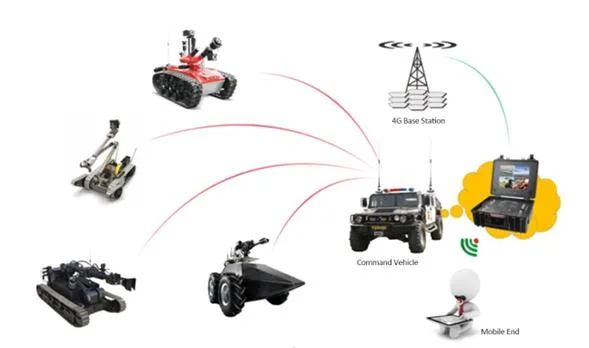

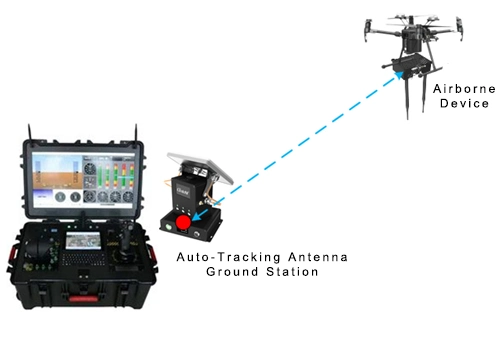

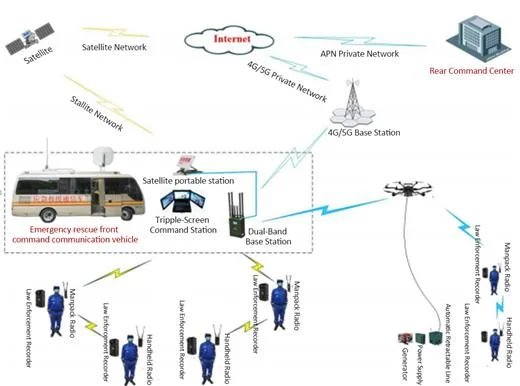

Application

4W 56Mbps Long Range 70~120km Uav Radio Video Data Link Transmitter
4W 56Mbps Long Range 70~120km Uav Radio Video Data Link Transmitter



Company Profile

Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.
