30Mbps FHSS Light Weight And Compact UAV Data Link Radio for 15km Transmission

Name: 30Mbps FHSS Light Weight And Compact UAV Data Link Radio for 15km Transmission
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet2421UM
Price: 1,499.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet2421UM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 999~1999 per piece

Packaging Details: carton

Delivery Time: 3-7 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                30Mbps Data Link, Uav Data Link, Unmanned Vehicle


Frequency:	800MHz,1.4GHz ,2.4GHz	RF Bandwidth:	1.4MHz/3MHz/5MHz/10MHz/20MHz
RF Channel:	1T2R	Transmission Power:	25dBm
Coverage Distance:	5-15km	Working Method:	Point To Point, Point To Others
Max Throughput:	30Mbps(Max)	Encryption:	ZUC,SNOW3G,AES
FHSS:	Support	Weight:	124g

Frequency:	800MHz,1.4GHz ,2.4GHz
RF Bandwidth:	1.4MHz/3MHz/5MHz/10MHz/20MHz
RF Channel:	1T2R
Transmission Power:	25dBm
Coverage Distance:	5-15km
Working Method:	Point To Point, Point To Others
Max Throughput:	30Mbps(Max)
Encryption:	ZUC,SNOW3G,AES
FHSS:	Support
Weight:	124g

30Mbps FHSS Light Weight And Compact UAV Data Link Radio for 15km Transmission

Product Description

ZKManet2421UM is a compact and portable airborne device with HD and stable image quality. It adopts the current leading OFDM modulation technology, allowing for capturing high-quality images in high-speed motion and real-time transmission over non-line-of-sight (NLOS) conditions. During transmission, encryption is applied to the images and data, supporting frequency hopping at 800MHz, 1.4GHz, and 2.4GHz, with a transmission rate of 30Mbps and a range of 5-15KM for air-to-ground transmission. It is well-suited for long-term and high-data-flow wireless transmission applications.

* The Frequency supports 800M/Hz1.4GHz/2.4GHz; supports FHSS
* Long Range up to 5~15km(LOS)
* Low latency and low power consumption
* IP transparent data transmission
* Tough aluminum metal case

Model	ZKManet2421UM
RF parameters	Frequency	800MHz/1.4GHz /2.4GHz
	Bandwidth	1.4MHz/3MHz/5MHz/10MHz/20MHz
	RF Channel	1T2R
	Output Power	25dBm
Network parameters	Network model	One-to-one and one-to-many
	Data Rate	30Mbps
	Encryption	ZUC/SNOW3G/AES as Optional
	Conflict Handling	frequency adjustment or bandwidth reduction
	Range	5-15km (LOS)
Physics/Environment	Dimensions	1025221.5mm
	Weight	124g
	Working Temp	-40ºC +65ºC
	IP Rating	IP67
Electrical parameters	Power supply	DC12V
Electrical parameters	Power Consumption	<37dBm
Other	Data Interface	RJ452,TTL1

30Mbps Low Lantency Uav Data Link for Video Data Transmitter

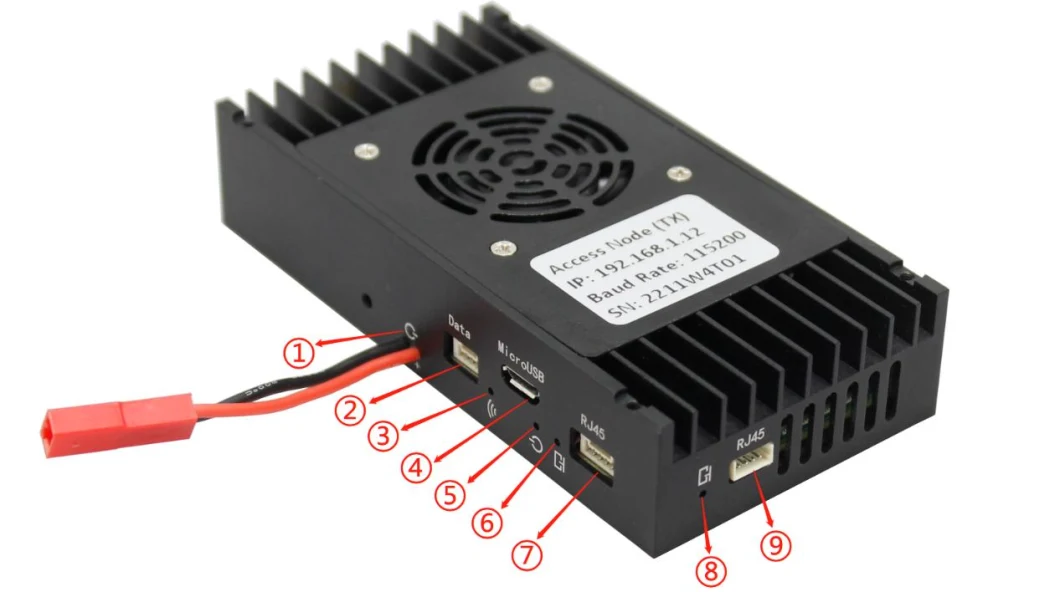

Power Cables - power supply input line, red is VDD, black is GND
Data UART Port (GND, Rx, Tx) - 3.3V TTL
Link Status Indicator - When the device works as an access node, if the connection with the central node is normal, the indicator will be always on. When the device works as a central node, this indicator is off.
Micro USB Port - For device software maintenance.
Indicator (Red) for Power - Always on during normal operation.
Indicator for Ethernet Port 2 - Flashes according to the data flow when works normally.
Ethernet Port 2 (RN, RP, TN, TP) - Ethernet port 1 and 2 are internally bridged.
Indicator for Ethernet Port 1 - Flashes according to the data flow when works normally.
Ethernet Port 1 (RP, RN, TP, TN) - Ethernet port 1 and 2 are internally bridged.

Product Label
Air Inlet - for the cooling fan
ANT2 Port - Auxiliary antenna, works as auxiliary receiving, NO transmitting.
ANT1 Port - Main antenna, work mode is TDD transmitting/receiving.

Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.

30Mbps Low Lantency Uav Data Link for Video Data Transmitter
