Product Details
Place of Origin: Guangdong, China
Brand Name: ZKMANET
Certification: CE, ISO9001
Model Number: ZKManet1241T
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD 1399~2399 per piece
Packaging Details: carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per year
Working Frequency: |
Image Transfer Support 300MHz-2.7GHz Customize. Audio145Mhz |
Constellation Mode: |
QPSK(4QAM), 16QAM, 64QAM (Factory Default QPSK) |
Transmit Power: |
2W |
Working Bandwidth: |
2-8MHz Adjustable |
Encryption: |
AES |
Transmission Distance: |
1.5-3km |
Dimension: |
220*120*45(mm)(L×W×H)(Included Battery) |
Weight: |
1.3kg(Included Battery) |
Working Temperature: |
-20ºC~+65ºC |
Working Frequency: |
Image Transfer Support 300MHz-2.7GHz Customize. Audio145Mhz |
Constellation Mode: |
QPSK(4QAM), 16QAM, 64QAM (Factory Default QPSK) |
Transmit Power: |
2W |
Working Bandwidth: |
2-8MHz Adjustable |
Encryption: |
AES |
Transmission Distance: |
1.5-3km |
Dimension: |
220*120*45(mm)(L×W×H)(Included Battery) |
Weight: |
1.3kg(Included Battery) |
Working Temperature: |
-20ºC~+65ºC |

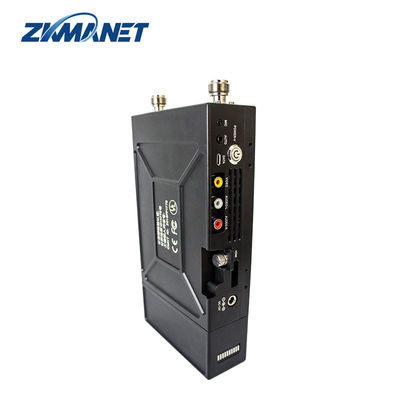

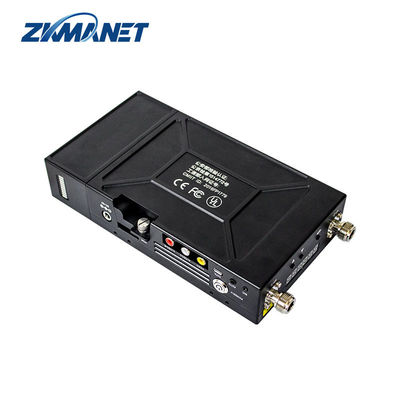

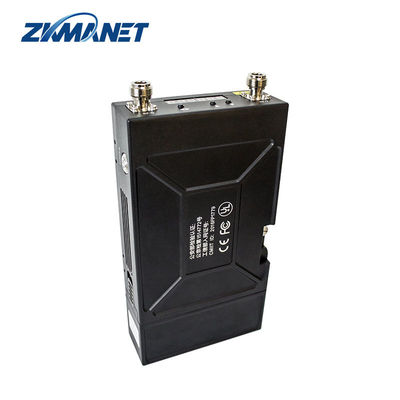

ZKManet1141T is a compact and portable backpack transmitter developed by our company with high definition and stable image quality.

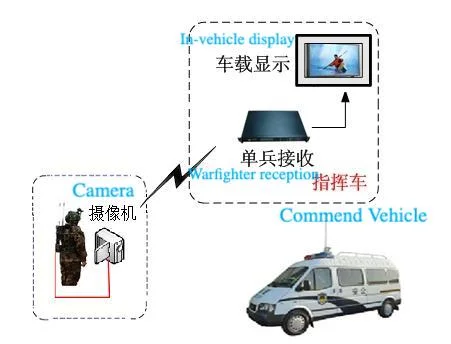

Adopting COFDM modulation technology, it can realize the shooting and real-time transmission of high-quality images in non-line-of-sight (non-visual), high-speed mobile, encrypting images and data during transmission, and it can be used with receiver ZCXH1302, which is especially suitable for the use in complex environments and places where there are relatively many obstacles, and it can be used in public security, armed police, and other major activities such as on-site security, emergency response and rescue, and other day-to-day operations.

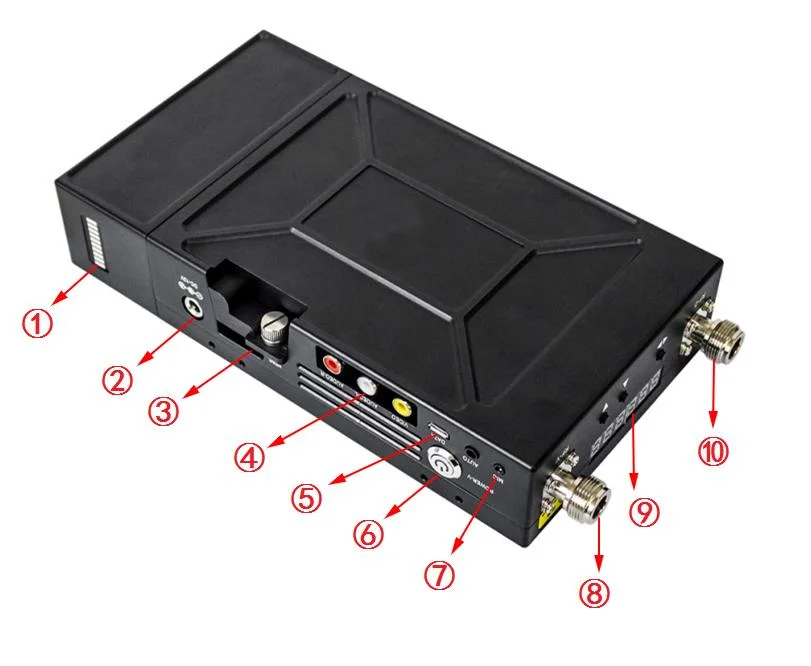

1. Compact and portable, backpack design, aluminum alloying with good thermal conductivity and impact resistance;
2. Adopts COFDM all-digital modulation and demodulation technology, strong anti-interference ability, stable transmission of images and signals in complex electromagnetic environment;
3. Much larger than 1.5-3km transmission distance, ground-to-air transmission more than 15KM;
4. Supports a variety of video sources, compatible with HDMI + AV two interfaces;
5. Supports two-way voice intercom transmission, real-time intercom between transmitter and receiver, stable communication quality;

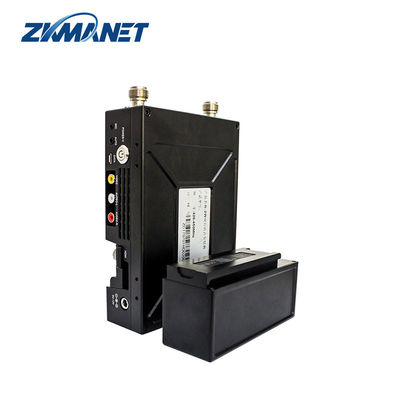

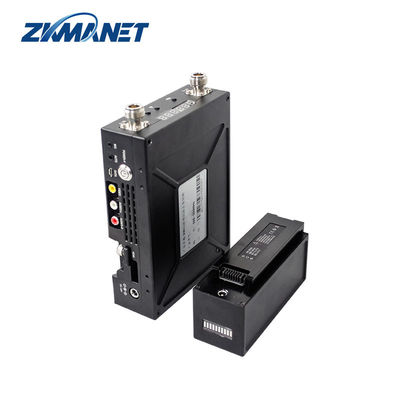

6. Battery can meet the equipment for 4 hours of continuous work, removable, replaceable battery, comes with power display
End-to-end delay is less than 100ms;
Working frequency band 300MHz~2700MHz customizable;
Powerful NLOS non-line-of-sight transmission capability;
Anti-electromagnetic interference performance, anti- multipath fading performance;
Stable transmission of image and voice under high-speed movement and multipath interference.
| Item No. | ZKManet1141T | Band | ZKMANET |
| RF Parameters | Working Frequency | Image Transfer Support 300MHz-2.7GHz customize. Audio145Mhz |
|
| Constellation mode | QPSK(4QAM), 16QAM, 64QAM (Factory Default QPSK) | ||
| Transmit Power | 2W | ||
| Working Bandwidth | 2-8MHz adjustable | ||
| Encryption | AES | ||
| Transmission Distance | 1.5-3km | ||
| RF Interface | N Female Header | ||
| Video Parameters | Video Input Interface | High Definition: HDMI | |
| Standard Definition: RCA | |||
| Video Format | High Definition: 1080P, 1080i, 720P,720i self adaptive | ||
| Standard Definition: P/N self adaptive | |||
| Video Compression | H.264 | ||
| Voice Interface | K-head microphone jack | ||

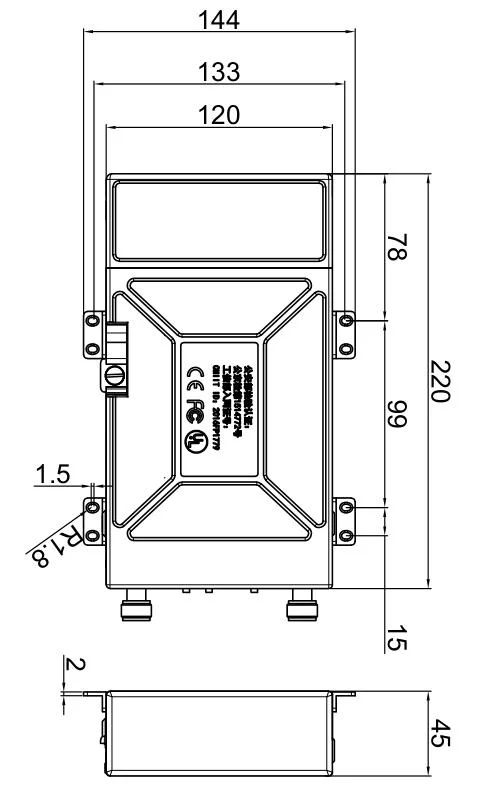

| Physicals/Environment | Dimension | 220*120*45(mm)(L×W×H)(Included battery) | |
| Weight | 1.3kg(Included battery) | ||
| Working Temperature | -20ºC~+65ºC | ||
| Electrical Characteristics | Power Supply | DC 12V | |
| Battery Capacity | 4500mAh | ||
| Power Consumption | <237dBm | ||

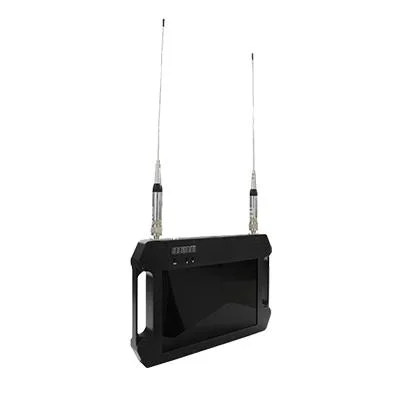

For use with handheld receiver device ZKManet1102R
