Product Details
Place of Origin: Guangdong, China
Brand Name: ZKMANET
Certification: CE, ISO9001
Model Number: ZKManet1371T
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD 3599~4499 per piece
Packaging Details: carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per year
| Modulation: | COFDM | Modulation Type: | QPSK(4QAM), 16QAM, 64QAM |
| Working Frequency: | 300MHz-2.7GHz (Default 700MHz) | RF Output Power: | 43dBm (Adjustable) |
| RF Bandwidth: | 2/4/6/8MHz (Adjustable) | FEC: | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval: | 1/4, 1/8, 1/16, 1/32 | Parameter Control Method: | USB Programmer |
| Encryption: | AES256 (User-defined Password) | Working Voltage: | AC 220V |
| Modulation: | COFDM |
| Modulation Type: | QPSK(4QAM), 16QAM, 64QAM |
| Working Frequency: | 300MHz-2.7GHz (Default 700MHz) |
| RF Output Power: | 43dBm (Adjustable) |
| RF Bandwidth: | 2/4/6/8MHz (Adjustable) |
| FEC: | 1/2, 2/3, 3/4, 7/8 |
| Guard Interval: | 1/4, 1/8, 1/16, 1/32 |
| Parameter Control Method: | USB Programmer |
| Encryption: | AES256 (User-defined Password) |
| Working Voltage: | AC 220V |

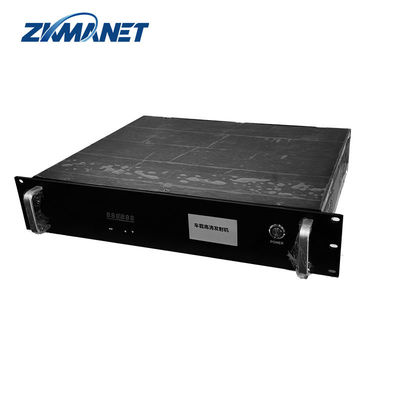

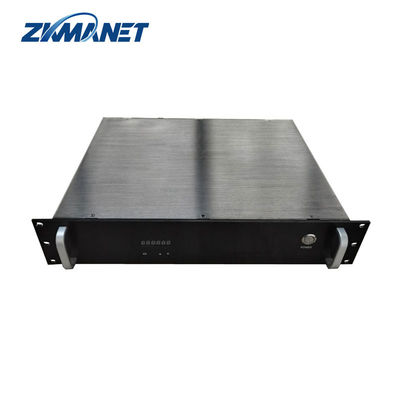

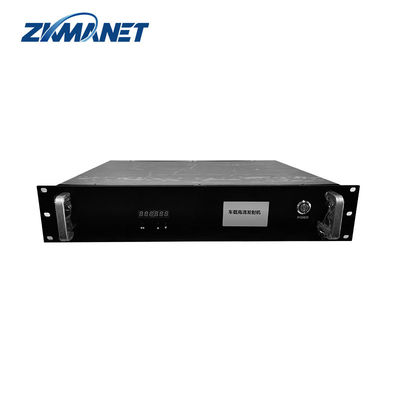

Cofdm Wireless Video Transmitter 10-40km 43dBm Broadcast Adjustable Bandwidth
ZKManet1371T is a long-distance transmission transmitter, serving as the transmitting end of a broadcast-grade HD real-time image transmission system. It adopts COFDM modulation technology with a relatively narrow airborne bandwidth (8MHz) and strong anti-multipath interference capabilities. This allows for real-time transmission of high-quality HD images even under high-speed motion or non-line-of-sight conditions, making it particularly suitable for use in complex environments. The audio and video encoding uses the H.264 standard, providing clear picture quality, vibrant colors, and smooth image flow.
* 300MHz~2700MHz customizable
* COFDM modulation and H.264 encoding
* Up to 10-Long Distance LOS transmission range

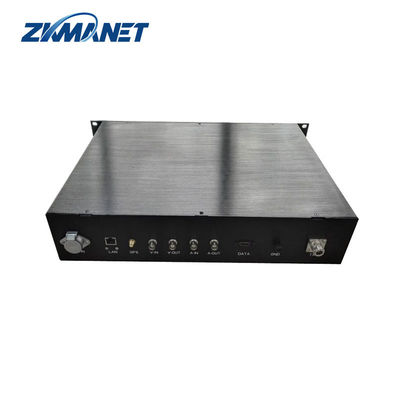

* Support HDMI and CVBS video and audio input
* Stable power and adjustable dynamic power of 28-43dBm
* 2U rack mount design
* Low latency
| Model | ZKManet1371T | Brand | ZKMANET |
| RF Parameters | Frequency | 300MHz-2.7GHz customizable | |
| Modulation | QPSK(4QAM),16QAM,64QAM | ||
| Output Power | 10-43dBm customizable | ||
| Bandwidth | 2-8MHz | ||
| Encryption | AES | ||
| RF Interface | N-F | ||
| Range | 10-Long Distance(LOS) | ||
| Video Parameters | Video Input | HD:HDMI | |
| SD:BNC | |||
| Video Modulation | HD:1080P,1080i,720P,720i | ||
| SD:P/N | |||
| Video Compression | H.264/H.265 | ||

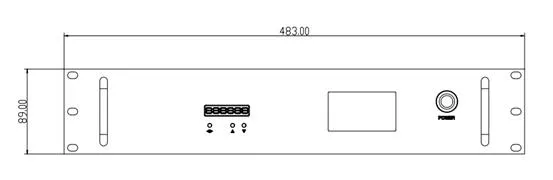

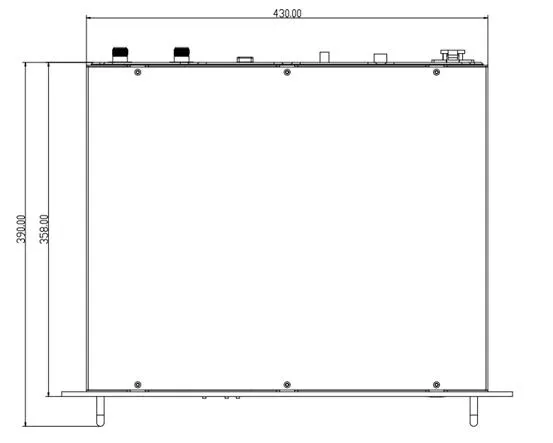

| Physical/Environment | Dimensions | 430*358*89(mm) 2U | |
| Weight | 10kg | ||
| Working Temp | -20ºC~+65ºC | ||
| Electrical Parameters | Power Supply | AC220V | |
| Power Consumption | <100W | ||
Zhongke Lianxun (Shenzhen) Technology Co., Ltd. was established in 2005, focusing on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. We leverage the technical expertise of renowned university network security institutes.
Adhering to the principles of "unity and dedication, technological innovation, and service innovation," we serve users both domestically and internationally. We uphold the tenet of "quality first, reputation first" to provide high-quality, efficient, and customized services to our clients worldwide. The company is committed to promoting an innovative spirit of "exploration and progress."

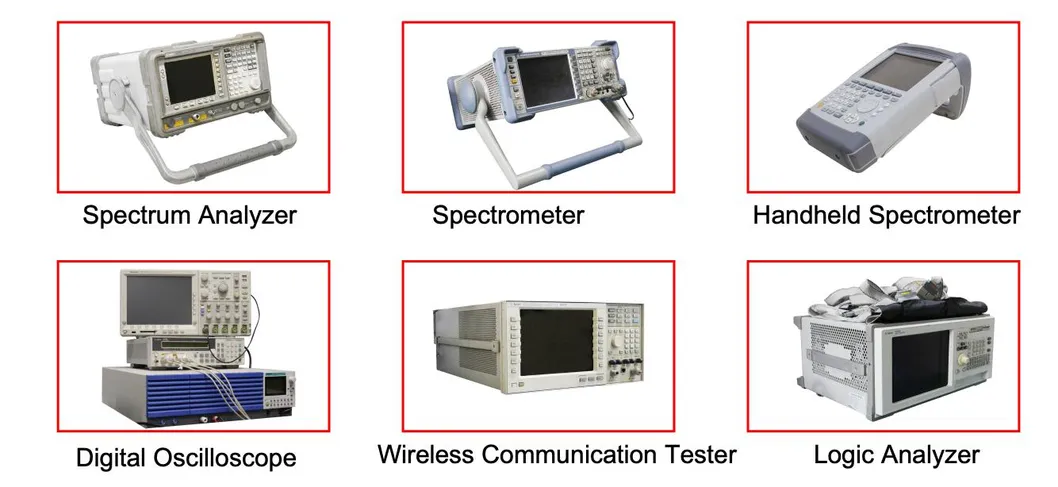

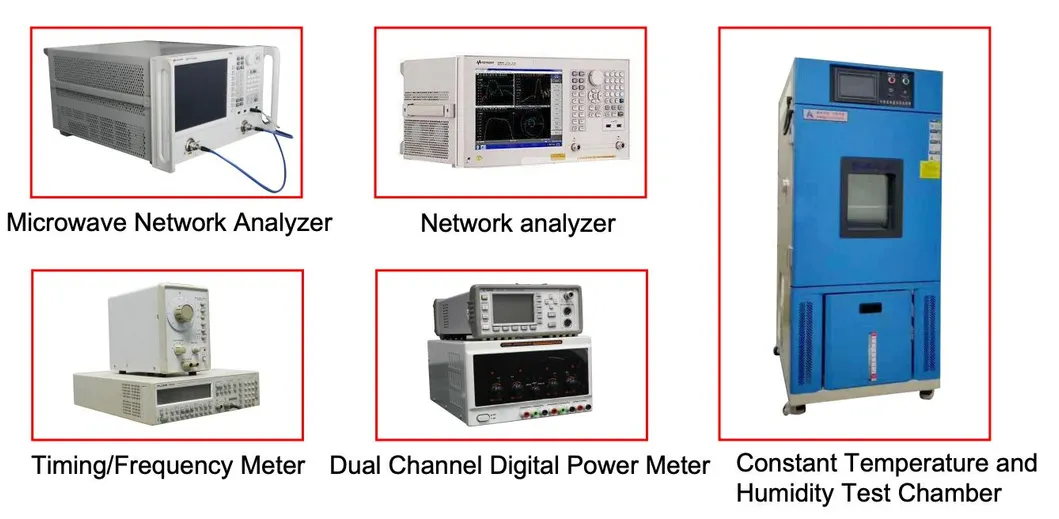

R&D Equipments
