Compact 30-49km 2T2R AES Encryption Mesh UAV Data Link Wireless HD Video Transmitter And Receiver

Name: Compact 30-49km 2T2R AES Encryption Mesh UAV Data Link Wireless HD Video Transmitter And Receiver
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet2451UM
Price: 2,199.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet2451UM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 1999～2399 per piece

Packaging Details: carton

Delivery Time: 3-7 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                hd video transmitter and receiver, uav datalink, data link uav


Working Frequency:	1400-1460MHz(300MHz-3.8GHz Customizable)	Working Bandwidth:	5/10/20/40MHz,20MHz(typical)
RF Channel:	2T2R	Transmit Power:	4W
Coverage Distance:	40-49KM(Line-of-sight)	Encryption:	AES
Throughout Rate:	82Mbps	Working Temperature:	-40ºC~+65ºC
Protection Rating:	IP54	Power Supply:	DC12-24V

Working Frequency:	1400-1460MHz(300MHz-3.8GHz Customizable)
Working Bandwidth:	5/10/20/40MHz,20MHz(typical)
RF Channel:	2T2R
Transmit Power:	4W
Coverage Distance:	40-49KM(Line-of-sight)
Encryption:	AES
Throughout Rate:	82Mbps
Working Temperature:	-40ºC~+65ºC
Protection Rating:	IP54
Power Supply:	DC12-24V

Compact 30-49km 2T2R AES Encryption Mesh UAV Data Link Wireless HD Video Transmitter And Receiver

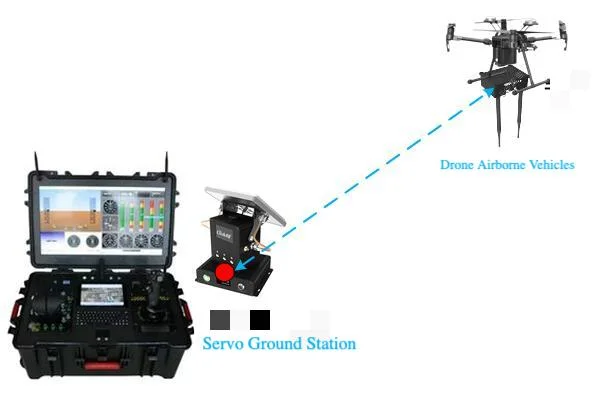

ZKManet2451UM is a very flexible MESH product, which can be used in a variety of communication combinations, applied to different use scenarios. It can be used on mobile vehicles, ships, robots, drones, unmanned boats, etc. It can be used anytime, anywhere, with one key on, without configuration and parameter change. It is mainly used to realize the multimedia interconnection and intercommunication between drones and soldiers, and between soldiers and base stations.

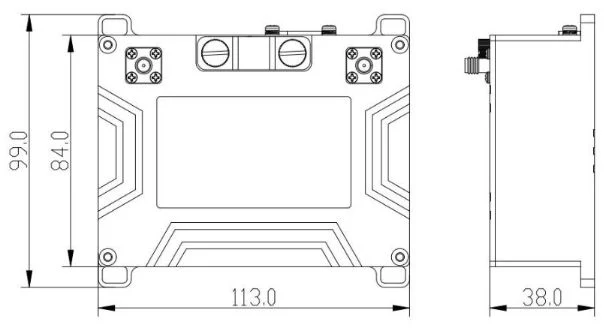

1. Body size 113*84*38mm;
2. Weight 450g;
3. Large bandwidth, up to 82Mbps;
4. Air-to-ground line-of-sight transmission distance of 40-49 kilometers;
5. IP data transparent transmission;
6. Support TTL serial port transmission;
7. Supports webcam access;
8. Support HDMI video input

Centerless self-organizing network, automatic path selection, flexible networking, easy to use.
Multi-hop to expand the coverage area and expand the coverage distance.
Strong anti-interference.
Good bypassing radioactivity.

Item No.	ZKMANET2451UM	Band
RF Parameters	Working Frequency	1400-1460MHz(300MHz-3.8GHz Customizable)
	Working Bandwidth	5/10/20/40MHz,20MHz(typical)
	RF Channel	2T2R
	Transmit Power	4W
Network Parameters	Nodes	8 nodes customizable
	Throughout Rate	82Mbps
	Encryption	AES
	Coverage Distance	40-49KM(Line-of-sight)
Physicals/Environment	Dimension	1138438mm
	Weight	450g
	Working Temperature	-40ºC~+65ºC
	Protection Rating	IP54
Electrical Characteristics	Power Supply	DC12-24V
	Power Consumption	<12W
Other	HDMI Interface	Support
	Network Port	Support
	TTL serial port	Support

4W 80Mbps High Anti-Interference Capability Wireless Mesh Drone Accessories HD Video Transmitter

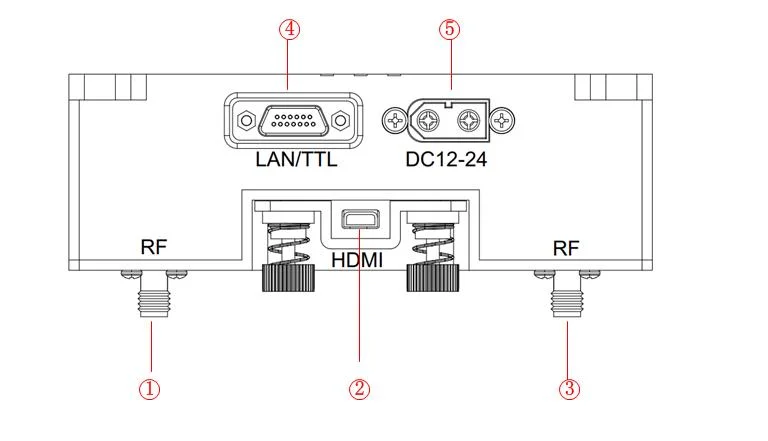

1. MESH Antenna Interface
2. HDMI Video Input
3. MESH Antenna Interface
4. Network port and TTL serial port
5. Power charge connector
