Wireless UAV/Drone Video Data Link for 15km Transmission with FHSS and working in Three Bands

Name: Wireless UAV/Drone Video Data Link for 15km Transmission with FHSS and working in Three Bands
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet2421UM
Price: 1,049.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet2421UM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 999~1099 per piece

Packaging Details: carton

Delivery Time: 3-7 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                video transmitter and receiver for drone, wireless video transmitter receiver, wireless video transmitter and receiver


Working Frequency:	800MHz, 1.4GHz, 2.4GHz	RF Channel:	1T2R
Transmit Power:	25dBm	Coverage Distance:	5-15km
Weight:	124g	Working Temperature:	-40ºC~+65ºC
Power Supply:	DC12V	Power Consumption:	<37dBm
FHSS:	Support	Application:	UAV/Drone

Working Frequency:	800MHz, 1.4GHz, 2.4GHz
RF Channel:	1T2R
Transmit Power:	25dBm
Coverage Distance:	5-15km
Weight:	124g
Working Temperature:	-40ºC~+65ºC
Power Supply:	DC12V
Power Consumption:	<37dBm
FHSS:	Support
Application:	UAV/Drone

Wireless UAV/Drone Video Data Link for 15km Transmission with FHSS and working in Three Bands

ZKManet2421UM is a compact and portable unmanned carrier device with high definition and stable image quality developed by our company. Adopting the current leading OFDM modulation technology, it can realize shooting and real-time transmission of high-quality images in non-line-of-sight (non-visual), high-speed movement, encrypting images and data during transmission, and supporting frequency hopping at 800MHz, 1.4GHz, 2.4GHz, transmission rate of 30Mbps and 5-15KM air-to-ground transmission, which is very suitable for long-time and high-dataflow wireless transmission applications.

1. IP data transparent transmission;
2. Support webcam access;
3. Long transmission distance, line-of-sight 5-15km;
4. Supports transmission at 800MHz, 1.4GHz, 2.4GHz frequency hopping;
5. Small and portable design, aluminum alloy with good thermal conductivity, impact resistant;
6. Supports unicast, multicast, and broadcast propagation methods, and any node can communicate with each other using these three methods.

Small in size, light weight.
Long transmission distance.
Low transmit power.
Low power consumption.
Network interface and serial interface.

Item No.	ZKManet2421UM	Band	ZKMANET
RF Parameters	Working Frequency	800MHz, 1.4GHz, 2.4GHz
	Working Bandwidth	1.4MHz/3MHz/5MHz/10MHz/20MHz
	RF Channel	1T2R
	Transmit Power	25dBm
	Coverage Distance	5-15KM
Network Parameters	Networking Methods	Point to point, point to multi-point
	Throughout Rate	30Mbps(Max)
	Encryption	ZUC,SNOW3G,AES 3 encryption methods available
	Conflict Management	When two or more self-organized networks interfere with each other, automatic frequency tuning or bandwidth reduction is performed.
Physicals/Environments	Dimension	1025221.5mm
	Weight	124g
	Working Temperature	-40ºC~+65ºC
Electrical Characteristics	Power Supply	DC12V
	Power Consumption	<37dBm
Other	Data Interfaces	RJ452,TTL1

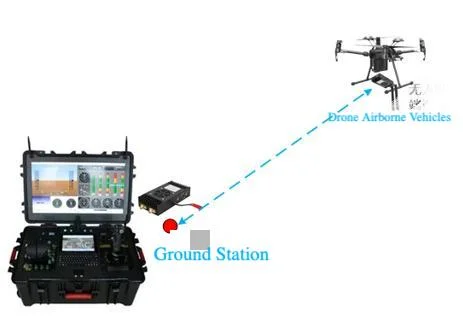

15km Coverage Distance Drone Airborne Vehicles Wireless Video Receiver Transmiiter

1. Power Cables - power supply input line, red is VDD, black is GND
2. Data UART Port (GND, Rx, Tx) - 3.3V TTL
3. Link Status Indicator - When the device works as an access node, if the connection with the central node is normal, the indicator will be always on. When the device works as a central node, this indicator is off.
4. Micro USB Port - For device software maintenance.
5. Indicator (Red) for Power - Always on during normal operation.
6. Indicator for Ethernet Port 2 - Flashes according to the data flow when works normally.
7. Ethernet Port 2 (RN, RP, TN, TP) - Ethernet port 1 and 2 are internally bridged
8. Indicator for Ethernet Port 1 - Flashes according to the data flow when works normally.
9. Ethernet Port 1 (RP, RN, TP, TN) - Ethernet port 1 and 2 are internally bridged.

1. Product Label
2. Air Inlet - for the cooling fan
3. ANT2 Port - Auxiliary antenna, works as auxiliary receiving, NO transmitting.
4. ANT1 Port - Main antenna, work mode is TDD transmitting/receiving.
