Product Details
Place of Origin: Guangdong, China
Brand Name: ZKMANET
Certification: CE, ISO9001
Model Number: ZKManet1102R
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD 1599~2699 per piece
Packaging Details: carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per year
Modulation Type: |
QPSK (4QAM), 16QAM, 64QAM |
Working Frequency: |
300-860MHz (Default 700MHz) |
RF Bandwidth: |
2MHz-8MHz (Adjustable) |
FEC: |
1/2, 2/3, 3/4, 5/6, 7/8 |
Receiving Sensitivity: |
-106dBm@1.25MHz |
Encryption: |
AES128 Or AES256 |
RF Interface: |
N F Head (50Ω, Dual Channel Diversity Reception) |
Screen: |
10.1 Inches HD |
Modulation Type: |
QPSK (4QAM), 16QAM, 64QAM |
Working Frequency: |
300-860MHz (Default 700MHz) |
RF Bandwidth: |
2MHz-8MHz (Adjustable) |
FEC: |
1/2, 2/3, 3/4, 5/6, 7/8 |
Receiving Sensitivity: |
-106dBm@1.25MHz |
Encryption: |
AES128 Or AES256 |
RF Interface: |
N F Head (50Ω, Dual Channel Diversity Reception) |
Screen: |
10.1 Inches HD |

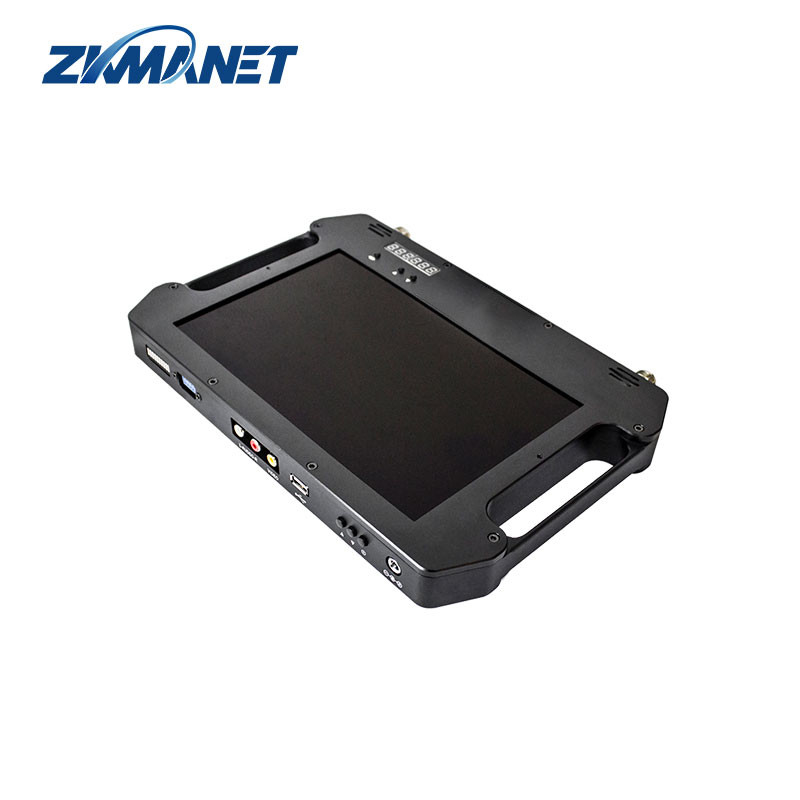

Handheld COFDM Video Receiver with AES128 AES256 & 10.1 inches HD Screen
The ZKManet1102R is a portable receiver designed for use as a temporary command center during routine police and armed forces operations. It features a built-in display, making it easy to transport and operate. Employing COFDM modulation technology, the ZKManet1102R ensures that images and data are encrypted during transmission. When used in conjunction with the ZKManet1131T transmitter, it can deliver real-time, stable audio and video even in fast-paced situations and urban environments with obstacles. Its compact design makes it ideal for offering decision-making support to on-site commanders.
* Compact size and light weight
* Portable design for easy operation
* 10.1 inch high brightness HD display
* Receiving signal under high-speed and NLOS conditions
* With AV output for connecting to external large display
* AES256 encryption
* Built-in battery up to 4 hours endurance
| Model | ZKManet1102R | Brand | ZKMANET |
| RF Parameters | Frequency | 300MHz-2.7GHz Customizable | |
| Modulation | QPSK(4QAM),16QAM,64QAM | ||
| Bandwidth | 2-8MHz | ||
| Receiving Sensitivity | -106dBm | ||
| Encryption | AES | ||
| Range | 1-3km | ||
| RF Interface | N-F | ||
| Video Parameters | Screen | 10.1 inches HD | |
| Video Output | HD:HDMI | ||
| SD:RCA-F | |||
| Video Modulation | HD:1080P@60 | ||
| SD:720*480 | |||
| Video Compression | H.264 | ||
| Video Memory | TF Card(128G Max); File system:FAT32 |
||
| Physical/Environment | Dimensions | 300*200*30mm | |
| Weight | 1.5kg | ||
| Working Temp | -10ºC~+65ºC | ||
| Electrical Parameters | Power Supply | DC 12V | |
| Battery Capacity | 4000mAh | ||
| Power Consumption | <40dBm | ||
Zhongke Lianxun (Shenzhen) Technology Co., Ltd is a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, and police investigation communication systems, and police noncombat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc. The products are widely used in law enforcement agencies and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime affairs.
We have multiple patents with independent intellectual property rights, has established a sound quality system and national standard system that comply with ISO9001 standards, and strictly produces products in accordance with national standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
