ZKManet2441 is a communication ground station designed for long distance, with built-in antenna tracking module, supporting all kinds of directional antenna tracking airborne modules. It realizes the automatic tracking function of directional antenna to improve the communication distance.
Features
1 Simultaneously equipped with an inertial compass (gyroscope) and a magnetic compass
2 Simultaneously equipped with image transmission and Lora dual link communication
3 Integrated tripod and suction cup installation, with a 360 degree non winding sliding ring design
4 Using high gain directional antennas to increase point-to-point communication distance, resulting in longer transmission distances
5 Easy to operate and use in emergency situations
6 Both the ground station and onboard modules are equipped with positioning modules, which can provide real-time positioning and refresh pointing angles.
7 Using 1T2R mode with directional antenna as the transmitting and receiving function and omnidirectional antenna as the receiving function can better transmit signals.
| Working Frequency |
800MHz,1.4GHz ,2.4GHz |
| RF Bandwidth |
5/10/20MHz |
| RF Channel |
1T2R |
| Transmission power |
33dBm |
| Motor torque |
30N*m |
| Rotation angle |
360 degree horizontally, 90 degree vertically |
| Angular accuracy |
2 Degree |
| Max. motor speed |
0.13s/60degree |
| RF interface |
N*1,SMA*2 |
| Network interfaces |
Waterproof Air Interface |
| Power interface |
Waterproof DC Interface |
| Coverage distance |
30km, Long Distance, Long Distance, over Long Distance(can be customized) |
| Max Throughput |
30Mbps(Max) |
| Encryption |
AES128 |
| Size |
306*396*416mm |
| Weight |
4.2kg |
| Working temperature |
-20C+60C |
| IP rate |
IP65 |
| Power input |
DC12V |
| Power consumption |
<High Power |

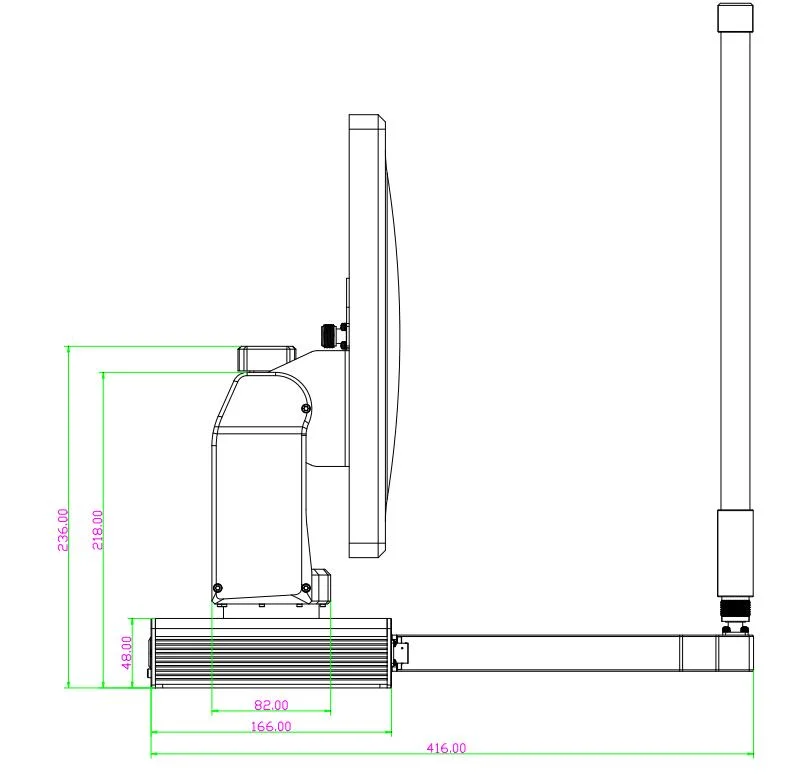

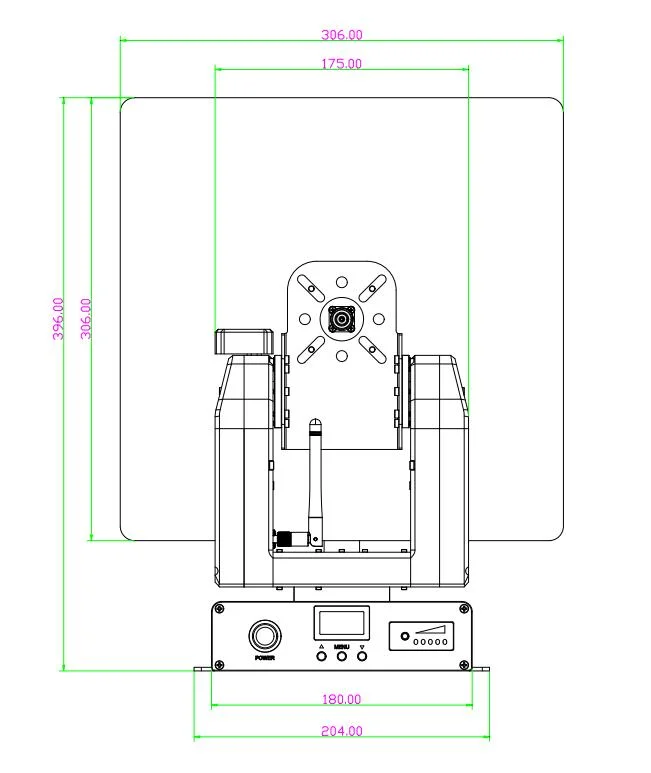

Dimensions

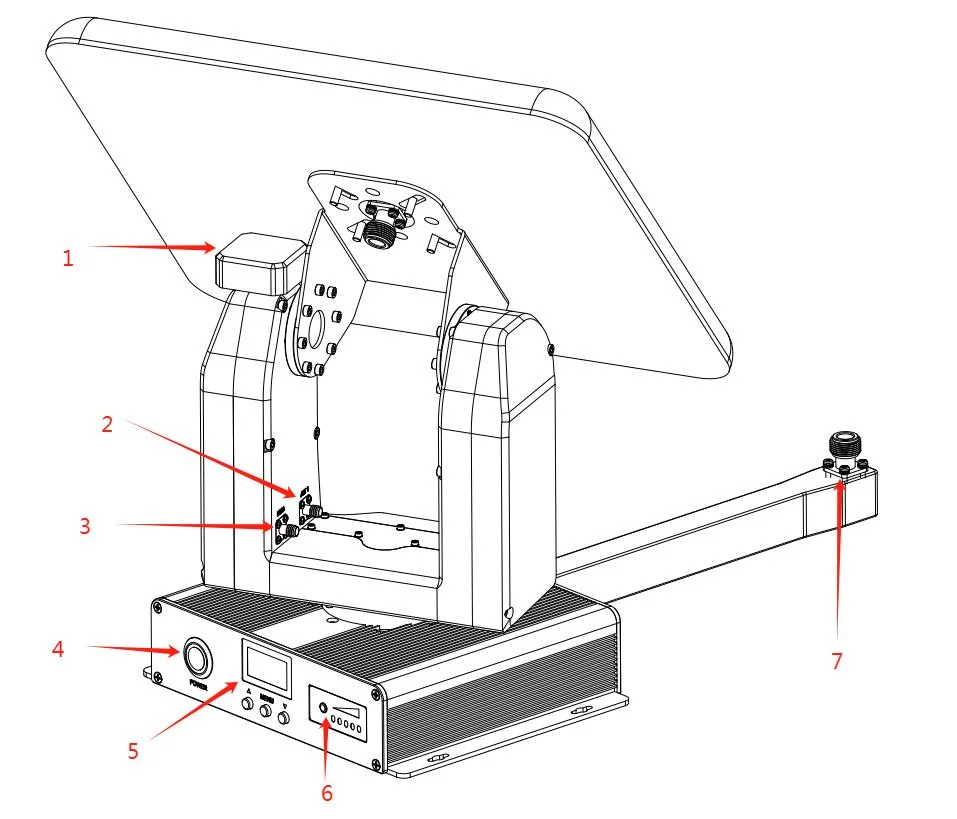

1- GPS antenna 6- battery indicator
2- MESH directional antenna 7- Omni Antenna Interface

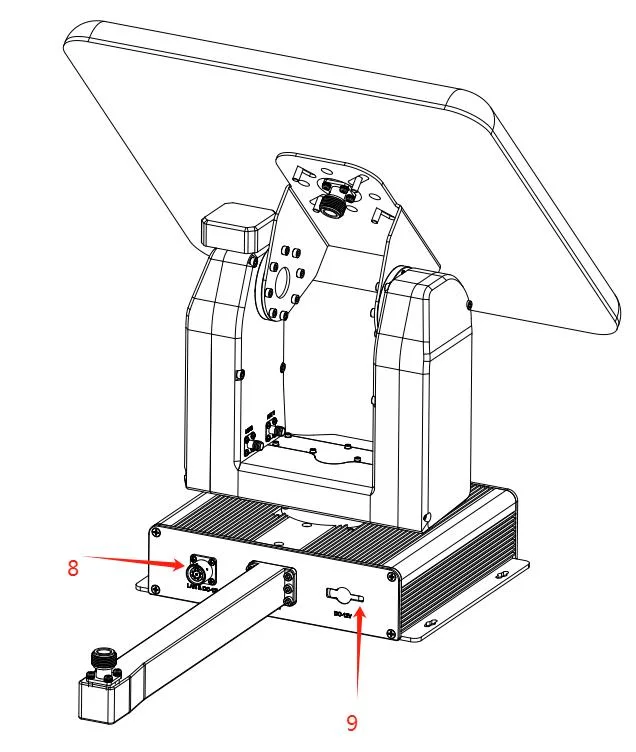

3- Lora antenna port 8- Ethernet & Serial Ports
4- Power on button 9- Waterproof DC charging port
5- OLED screen, buttons

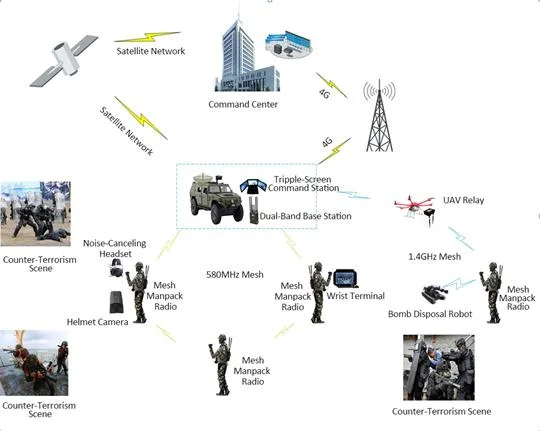

We are a high-tech R&D enterprise. Our products mainly use Mesh and LTE as core technologies and auxiliary decision-making software to form underground building emergency communication systems, and police investigation communication systems, and police non combat training communication systems, urban emergency communication systems, emergency communication vehicle communication systems, etc., suitable for law enforcement forces and government departments such as public security, armed police, , forest fire prevention, civil air defense, and maritime. Especially the intelligent communication products of special robots have solved the long-distance communication and control problems of robots in complex environments.
Zhongke Lianxun (Shenzhen) Technology Co.,Ltd has multiple patents with independent intellectual property rights, has established a sound quality system and national standard system that comply with ISO9001 standards, and strictly produces products in accordance with national standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
Our Patents

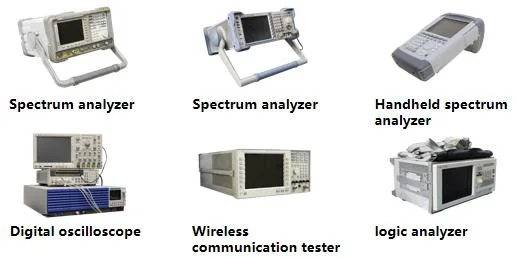

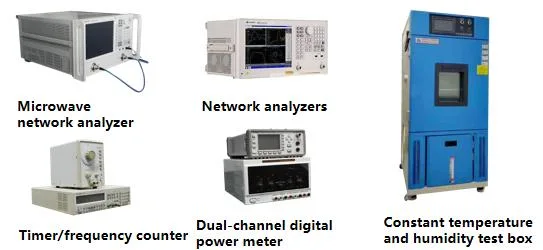

Test Equipments
