Home > products > Vehicle Mounted Data Link > PDT / DMR Portable Radios 50-70km MIL-STD-810 VHF UHF Dual Band 137dBm Customizable

PDT / DMR Portable Radios 50-70km MIL-STD-810 VHF UHF Dual Band 137dBm Customizable

Product Details

Place of Origin: Guangdong, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet4371D

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 4499~6499 per piece

Packaging Details: carton

Delivery Time: 3-7 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10000 pieces per year

Get Best Price
Highlight:

hdmi sender and receiver

,

wireless video sender

,

wireless video sender and receiver

Working Band:
VHF:136-174MHz UHF:400-480MHz UHF2:450-520MHz UHF3:350-400MHz
Channel Quantity:
3773
Area:
Level 1 Area: 4 Level 2 Area: 1000 Level 3 Area: 1000
Channel Step:
12.5KHz/25KHz
Working Voltage:
10.8~12.6V
Battery Capacity:
16.5Ah
Battery Life (5/5/90):
21.4 Hours
Frequency Stability:
±0.5ppm
Antenna Impedance:
50Ohm
Transmission Range:
50-70km (w/ Tower)
Working Band:
VHF:136-174MHz UHF:400-480MHz UHF2:450-520MHz UHF3:350-400MHz
Channel Quantity:
3773
Area:
Level 1 Area: 4 Level 2 Area: 1000 Level 3 Area: 1000
Channel Step:
12.5KHz/25KHz
Working Voltage:
10.8~12.6V
Battery Capacity:
16.5Ah
Battery Life (5/5/90):
21.4 Hours
Frequency Stability:
±0.5ppm
Antenna Impedance:
50Ohm
Transmission Range:
50-70km (w/ Tower)
PDT / DMR Portable Radios 50-70km MIL-STD-810 VHF UHF Dual Band 137dBm Customizable

PDT / DMR Portable Radios 50-70km MIL-STD-810 VHF UHF Dual Band 137dBm Customizable

Product Description

The ZKManet4371D is a MESH narrowband portable base station specially designed to deal with emergencies and realize rapid deployment. The whole device is designed with all-cast aluminum structure according to the quality requirements of standard, which meets the requirements of IP67 dustproof and waterproof, and can adapt to various harsh working field environments and meet the needs of high-strength communication. The device supports the piggyback fast deployment method, supports the self-organized network co-frequency relay, and adaptively adjusts the transmit power according to different configurations.


Features

  • Flexible digital mode and analog mode switching

  • PDT/DMR multiple working modes

  • Supports up to 8 hops & 32 nodes

  • Easy channel configuration

  • Supports 5 types of encryption

  • Adaptive power output

  • Supports GPS/Beidou satellite positioning



Product Parameters

Working Band VHF:136-174MHz
UHF
:400-480MHz
UHF2
:450-520MHz
UHF3
:350-400MHz
Channel Quantity 3773
Area

Level 1 area: 4

Level 2 area: 1000

Level 3 area: 1000

Channel Step 12.5KHz/25KHz
Working Voltage 10.8~12.6V
Battery Capacity 16.5Ah
Battery Life (5/5/90) 21.4 Hours
Frequency Stability ±0.5ppm
Antenna Impedance 50Ohm
Dimensions 302(L)*218(W)*76(H)mm
Weight ≤5KG (w/ Battery)
Transmission Range 50-70km (w/ Tower)
Network Capacity Up to 8 hops and 32 nodes
Output Power 3-137dBm
4FSK Modulation

12.5kHz data only: 7K60FXD

12.5kHz data and voice: 7K60FXE

FM Modulation 12.5 kHz:8K50F3E
25 kHz
:16K0F3E
Modulation Limit ±2.5kHz@12.5kHz
±5.0kHz@25kHz
Emission Spurs -36dBm<1ghz -30dbm="">1GHz
Adjacent Channel Power ≤-60dB
Sensitivity 3%BER≤0.35µV
Intermodulation 60 dB
Adjacent Channel Selectivity 60 dB
Spurious Suppression 70 dB
Block 90 dB
Conducted Radiation -57dBm
GPS Positioning Accuracy Horizontal≤10m (Good signal conditions)
TTFF (First Fix) Cold Start <1 minute (Good signal conditions)
TTFF (First Fix) Hot Start <10 seconds (Good signal conditions)
Working Temp. -30ºC-+70ºC
Storage Temp. -40ºC-+85ºC
Moisture Proof MIL-STD-810C/D/E/F
Shock and Vibration Proof MIL-STD-810C/D/E/F
Dustproof & Waterproof IP67



Detailed Photos

PDT / DMR  Portable Radios 50-70km MIL-STD-810 VHF UHF Dual Band 137dBm Customizable 0

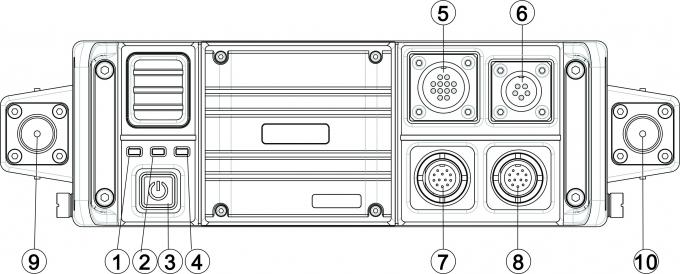

① LED Indicator for UHF

② LED Indicator for VHF

③ Power Button

④ Network Indicator

⑤ ACC Accessory Interface

⑥ LAN Interface

⑦ Microphone Interface 1

⑧ Microphone Interface 2

⑨ Antenna Interface 1

⑩ Antenna Interface 2

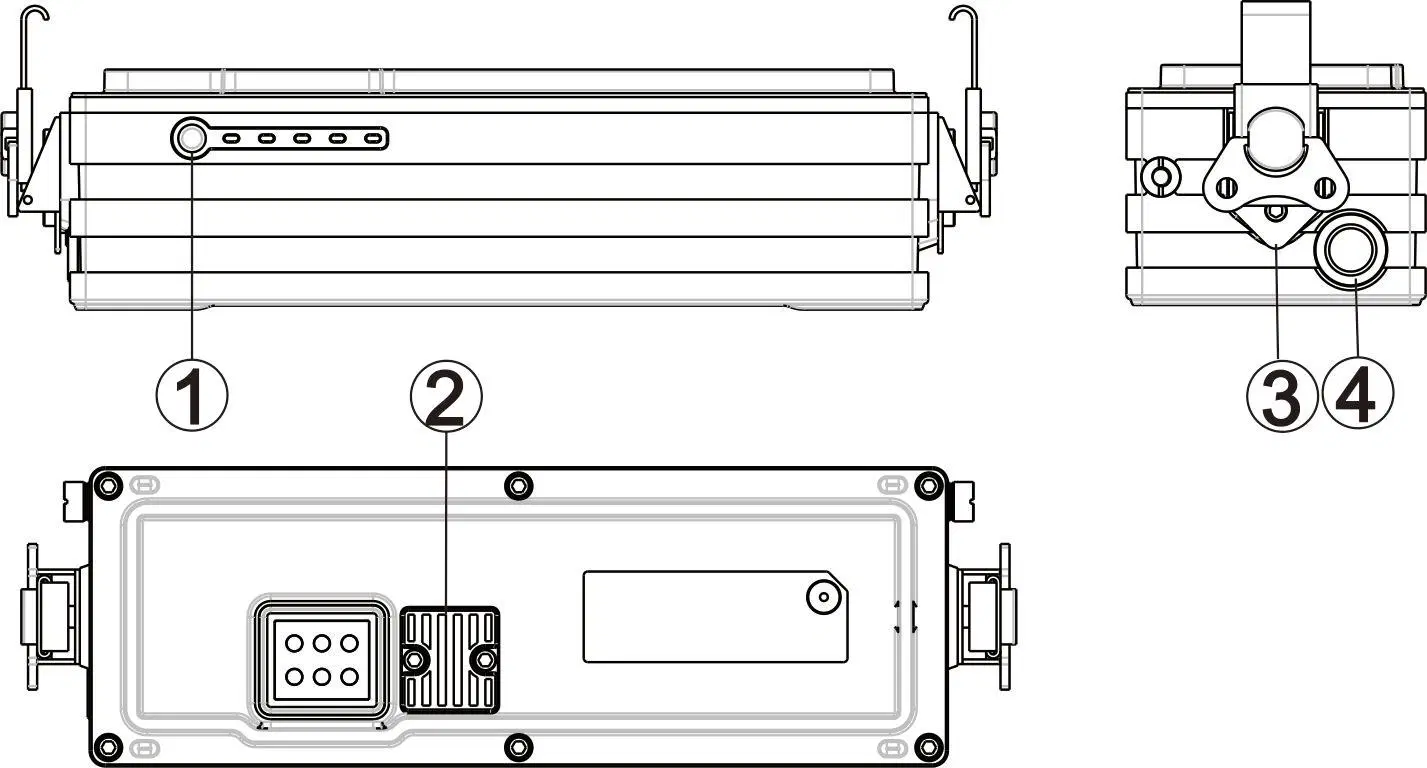

① Battery Level Button

② Fuse

③ Butterfly Buckle

④ Battery Charging Interface

PDT / DMR  Portable Radios 50-70km MIL-STD-810 VHF UHF Dual Band 137dBm Customizable 1

Company Profile

Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.

PDT / DMR  Portable Radios 50-70km MIL-STD-810 VHF UHF Dual Band 137dBm Customizable 2
PDT / DMR  Portable Radios 50-70km MIL-STD-810 VHF UHF Dual Band 137dBm Customizable 3
PDT / DMR  Portable Radios 50-70km MIL-STD-810 VHF UHF Dual Band 137dBm Customizable 4

Our PatentsPDT / DMR  Portable Radios 50-70km MIL-STD-810 VHF UHF Dual Band 137dBm Customizable 5

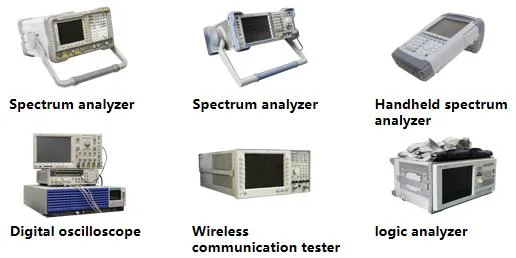

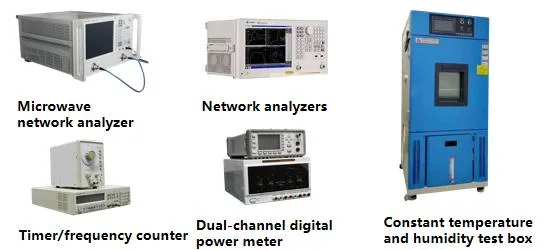

Test Equipments
