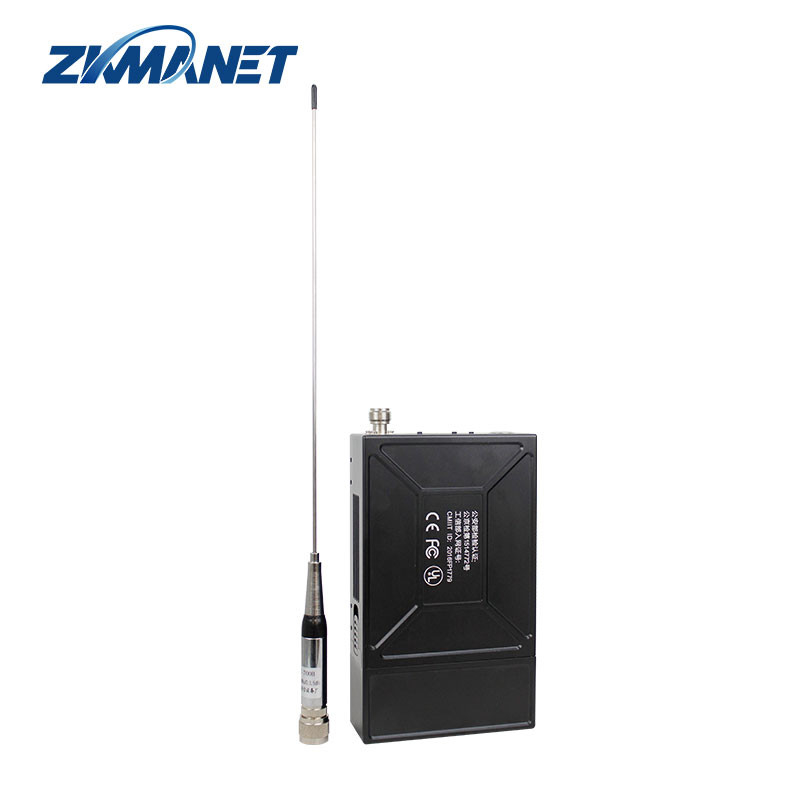

2W Wireless Manpack COFDM HDMI & CVBS Video Transmitter with AES256 Encryption

Product Details

Place of Origin: Guangdong, China

Brand Name: ZKMANET

Certification: CE, ISO9001

Model Number: ZKManet1242T

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 3499~5999 per piece

Packaging Details: carton

Delivery Time: 3-7 work days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 10000 pieces per year

Get Best Price
Highlight:
Modulation:
COFDM
Modulation Type:
QPSK(4QAM), 16QAM, 64QAM
Working Frequency:
300MHz-2700MHz
Transmission Power:
2W
RF Bandwidth:
2-8MHz
Delay:
60ms
Guard Interval:
1/4, 1/8, 1/16, 1/32
Encryption:
AES256 (User-defined Password)
Modulation:
COFDM
Modulation Type:
QPSK(4QAM), 16QAM, 64QAM
Working Frequency:
300MHz-2700MHz
Transmission Power:
2W
RF Bandwidth:
2-8MHz
Delay:
60ms
Guard Interval:
1/4, 1/8, 1/16, 1/32
Encryption:
AES256 (User-defined Password)
2W Wireless Manpack COFDM HDMI & CVBS Video Transmitter with AES256 Encryption

 2W Wireless Manpack COFDM HDMI & CVBS Video Transmitter with AES256 Encryption

Product Description

ZKManet1242T is a compact and portable backpack transmitter developed by our company with high definition and stable image quality. Adopting COFDM modulation technology, it can realize shooting and real-time transmission of high-quality images in non-line-of-sight (non-visual), high-speed mobile, encrypting images and data during transmission, and it can be used with receiver ZKManet1002R, which is especially suitable for use in complex environments and places where there are relatively many obstructions, and can be used for public security, armed police and other major activities such as on-site security, emergency response rescue and other activities.

Features

* Supports HDMl and CVBS dual video input
* Rugged aluminum alloy housing
* Range up to 1.5-3km
* Up to 5 hours battery life
* Strong anti-interference ability
* Manpack design for easy operation
* COFDM modulation and H.264 compression

Specifications

Model ZKManet1242T
RF Parameters Frequency Video: 300MHz-2.7GHz customizable;
Modulation QPSK(4QAM)/16QAM/64QAM
Output Power 2W
Bandwidth 2-8MHz
Encryption AES
Range 1.5-3km
RF Interface N-F
Video Parameters Video Input HD:HDMI
SD:RCA
Video Modulation HD:1080P,1080i,720P,720i
SD:P/N
Video Compression H.264
Physical/Environment Dimensions 220*120*45(mm)
Weight 1.3kg(w/ battery)
Working Temp -20°C~ +65°C
Electrical Parameters Power Supply DC 12V
Battery Capacity 4500mAh
Power Consumption <43dBm

Dimensions

Light Weight and Portable Backpack Transmitter for Easy Communication

Panel description

1.Antenna interface_ N type Female
2.LED control panel
3.Power push button
4.CVBS video input
5.Audio left channel input
6.Audio right channel input
7.HDMl video input
8.Power input DC 12V
9.Battery indicator
Light Weight and Portable Backpack Transmitter for Easy Communication

Application
