Product Details
Place of Origin: Guangdong, China
Brand Name: LINKAV
Certification: CE, ISO9001
Model Number: MANET3618-W
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Packaging Details: carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per year
MANET3618-W
LinkAV
| Working Frequency: | 1400~1460MHz | RF Channel: | 2T2R |
| Core Technology: | MESH | Weight: | 450g |
| Working Frequency: | 1400~1460MHz |
| RF Channel: | 2T2R |
| Throughout Rate: | 82Mbps |
| Core Technology: | MESH |
| Weight: | 450g |

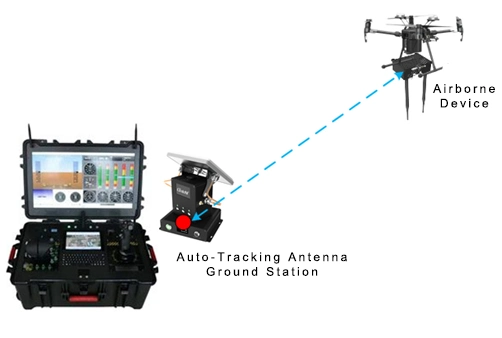

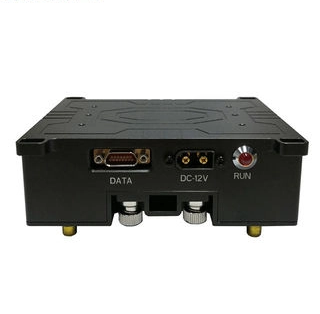

MANET3618-W is a MESH video data link that can be used in various communication combinations for different usage scenarios. It can be used on moving vehicles, ships, robots, drones, unmanned boats, etc., allowing for easy plug-and-play operation without the need for configuration or parameter changes. It is primarily used for multimedia interconnection between drones and individual soldiers, and between individual soldiers and base stations.
* Full transparent IP data transmission
* With HDMI input
* Small size and light weight
| Model | MANET3618-W | Brand | MANET3618-W |
| RF Parameters | Frequency | 1400-1460MHz (300MHz-3.8GHz Customizable) | |
| Bandwidth | 5/10/20/40MHz | ||
| RF Channel | 2T2R | ||
| Encryption | AES | ||

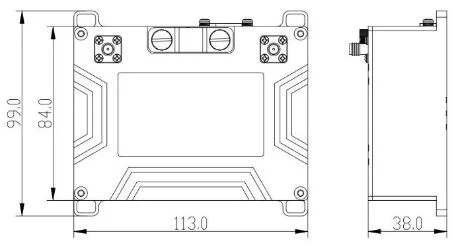

| Physical/ Environment | Dimensions | 113*84*38mm | |
| Weight | 450g | ||
| IP Rating | IP54 | ||
| Electronic Parameters | Power Supply | DC12-24V | |
| Other | HDMI Interface | Support | |
| LAN Port | Support | ||
| TTL Port | Support | ||

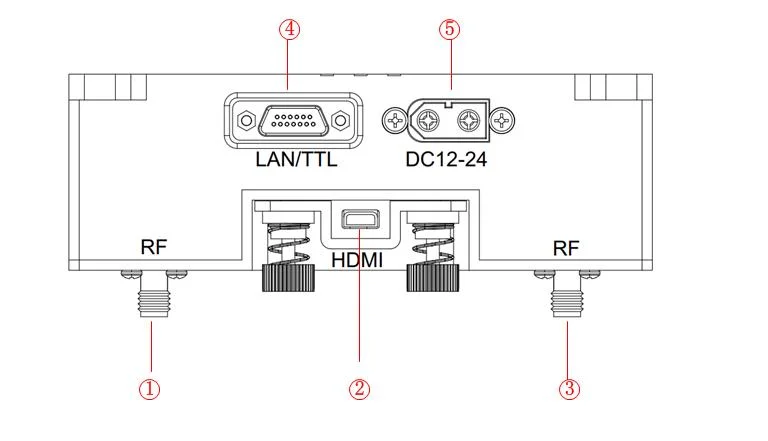

MESH antenna interface, SMA F
HDMI input interface
MESH antenna interface, SMA F
LAN/TTL interface (J30J-15TJ connector, PIN 1, 2, 3 and 4 for LAN, PIN 5, 6 and 7 for TTL GND, TX and RX)
Power input interface
