Product Details
Place of Origin: Guangdong, China
Brand Name: ZKMANET
Certification: CE, ISO9001
Model Number: ZKManet1102R
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 1 piece
Price: USD 1599~2699
Packaging Details: carton
Delivery Time: 3-7 work days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 10000 pieces per year
Working Frequency: |
300MHz-2.7GHz Customize |
Constellation Mode: |
QPSK(4QAM), 16QAM, 64QAM(Factory Default QPSK) |
Working Bandwidth: |
2-8MHz Adjustable |
Receiver Sensitivity: |
-106dBm |
Encryption: |
AES |
Transmission Distance: |
1-3km |
RF Interface: |
N-Female, High Performance Dual Channel Diversity Reception |
Dimension: |
300*200*30mm |
Weight: |
1.5kg |
Working Frequency: |
300MHz-2.7GHz Customize |
Constellation Mode: |
QPSK(4QAM), 16QAM, 64QAM(Factory Default QPSK) |
Working Bandwidth: |
2-8MHz Adjustable |
Receiver Sensitivity: |
-106dBm |
Encryption: |
AES |
Transmission Distance: |
1-3km |
RF Interface: |
N-Female, High Performance Dual Channel Diversity Reception |
Dimension: |
300*200*30mm |
Weight: |
1.5kg |

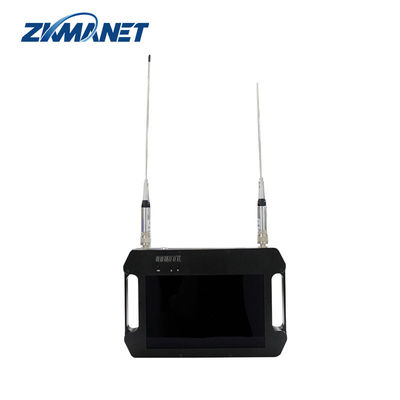

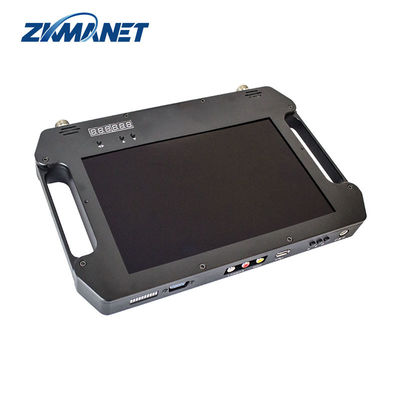

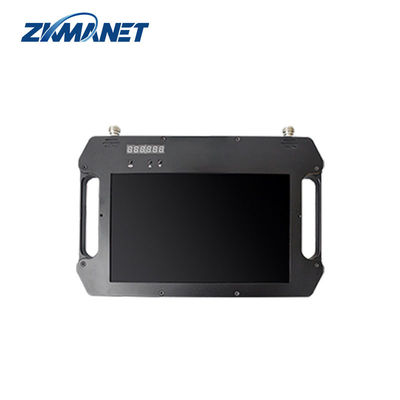

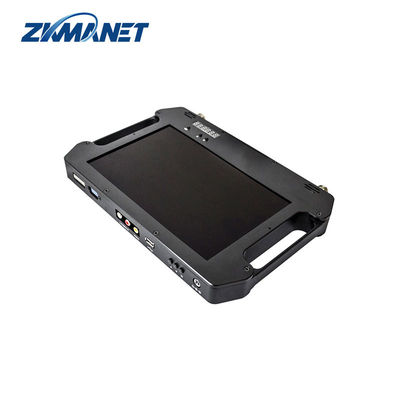

The ZKManet1102R is a portable receiver designed for use as a temporary command center during routine police and armed forces operations. It features a built-in display, making it easy to transport and operate. Employing COFDM modulation technology, the ZKManet1102R ensures that images and data are encrypted during transmission. When used in conjunction with the ZKManet1131T transmitter, it can deliver real-time, stable audio and video even in fast-paced situations and urban environments with obstacles. Its compact design makes it ideal for offering decision-making support to on-site commanders.
* Compact size and light weight
* Portable design for easy operation
* 10.1 inch HD display
* Receiving signal under high-speed and NLOS conditions
* With AV output for connecting to external large display
* AES256 encryption
* Built-in battery up to 4 hours endurance
| Model | ZKManet1102R | Brand | ZKMANET |
| RF Parameters | Frequency | 300MHz-2.7GHz Customizable | |
| Modulation | QPSK(4QAM),16QAM,64QAM | ||
| Bandwidth | 2-8MHz | ||
| Receiving Sensitivity | -106dBm | ||
| Encryption | AES | ||
| Range | 1-3km | ||
| RF Interface | N-F | ||
| Video Parameters | Screen | 10.1 inches HD | |
| Video Output | HD:HDMI | ||
| SD:RCA-F | |||
| Video Modulation | HD:1080P@60 | ||
| SD:720*480 | |||
| Video Compression | H.264 | ||
| Video Memory | TF Card(128G Max); File system:FAT32 |
||
| Physical/Environment | Dimensions | 300*200*30mm | |
| Weight | 1.5kg | ||
| Working Temp | -10ºC~+65ºC | ||
| Electronic Parameters | Power Supply | DC 12V | |
| Battery Capacity | 4000mAh | ||
| Power Consumption | <40dBm | ||
Zhongke Lianxun (Shenzhen) Co., Ltd was established in 2005. The company focuses on the research and development of products for drone defense/control, wireless video transmission, and network security encryption/decryption. It leverages the technical expertise of renowned university network security institutes. The company specializes in providing data encryption and decryption solutions as well as drone defense solutions for industries such as wind power, national power, oil and gas, firefighting, public security, road and bridge construction, and emergency management agencies.
We have multiple patents with independent intellectual property rights, has established a sound quality system and national standard system that comply with ISO9001 standards, and strictly produces products in accordance with national standards and internationally recognized standards such as CCC, CE, FCC, etc. It has obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China and has passed the wireless product testing certification of the Ministry of Public Security.
