5-15km 300mW 30Mbps Portable Drone Airborne Video Image Transmitter

Name: 5-15km 300mW 30Mbps Portable Drone Airborne Video Image Transmitter
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet2421UM
Price: 3,499.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: ZKManet

Certification: CE, ISO9001

Model Number: ZKManet2421UM

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1 piece

Price: USD 1999~4999

Packaging Details: carton

Delivery Time: 3-7 work days

Payment Terms: T/T, Western Union

Supply Ability: 10000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:

Frequency:	806~826MHz，1428~1448MHz，2401~2481MHz	RF Bandwidth:	1.4MHz/3MHz/5MHz/10MHz/20MHz
RF Channel:	1T2R	Output Power:	300mW
Max Throughput:	Max 30Mbps@20MHz	Modulation:	BPSK, 16QAM And 64QAM (TDD-OFDM)
Networking Mode:	One-to-one And One-to-many (one To Sixteen Max)	Serial Port:	1x UART Port (TTL232)

Frequency:	806~826MHz，1428~1448MHz，2401~2481MHz
RF Bandwidth:	1.4MHz/3MHz/5MHz/10MHz/20MHz
RF Channel:	1T2R
Output Power:	300mW
Max Throughput:	Max 30Mbps@20MHz
Modulation:	BPSK, 16QAM And 64QAM (TDD-OFDM)
Networking Mode:	One-to-one And One-to-many (one To Sixteen Max)
Serial Port:	1x UART Port (TTL232)

5-15km 300mW 30Mbps Portable Drone Airborne Video Image Transmitter

I. Produce Introduction

The ZKManet2421UM is a miniature OFDM IP radio that operates in the 800MHz, 1.4GHz and 2.4GHz frequency bands with frequency hopping spread spectrum (FHSS) to ensure good stability even in fast-moving situations. It supports data rates up to 30Mbps and air-to-ground range up to 5-20km, which is ideal for long range and high data stream wireless transmission applications such as surveillance/UAV/USV/robotics etc.

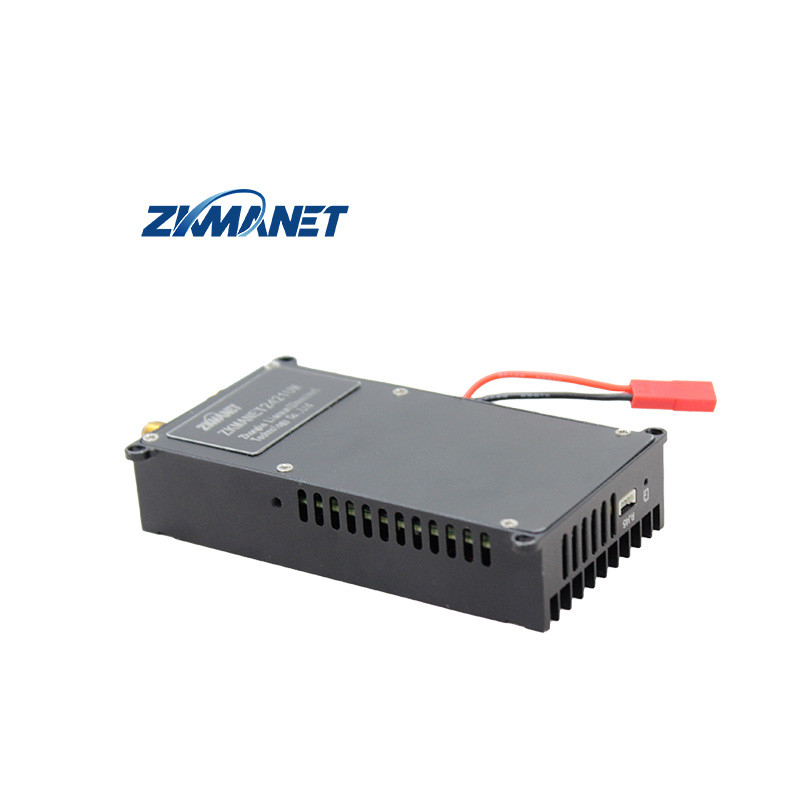

5-15km 300mW 30Mbps Portable Drone Airborne Video Image Transmitter 0

5-15km 300mW 30Mbps Portable Drone Airborne Video Image Transmitter 1

II. Product Features

* Up to 5-20km LOS (air-to-ground)

* AES128 encryption (user-defined)

* TDD-OFDM modulation

* Compact size and light weight

* Rugged aluminum alloy housing

* Max 30Mbps@20MHz throughput

* IP data transparent transmission

* 1.4/3/5/10/20MHz five channel bandwidths

* Supports one-to-one and one-to-many transmission

* Supports FHSS inside each band and across bands

* Supports 800MHz, 1.4GHz, 2.4GHz frequency hopping transmission

III. Product Details

5-15km 300mW 30Mbps Portable Drone Airborne Video Image Transmitter 2

a. ANT2 Port - Auxiliary antenna, works as auxiliary receiving, NO transmitting.

b. ANT1 Port – Main antenna, work mode is TDD transmitting/receiving.

IV. Product Parameters

Item	Parameters
Frequency	806~826MHz,1428~1448MHz,2401~2481MHz
RF Bandwidth	1.4MHz/3MHz/5MHz/10MHz/20MHz
RF Channel	1T2R
Output Power	25dBm±2
800MHz Sensitivity	10MHz:-103dBm 5MHz:-104dBm 3MHz:-106dBm
1.4GHz Sensitivity	10MHz:-103dBm 5MHz:-104dBm 3MHz:-106dBm
2.4GHz Sensitivity	20MHz:-99dBm 10MHz:-103dBm 5MHz:-104dBm 3MHz:-106dBm
Max Throughput	Max 30Mbps@20MHz
Modulation	BPSK, 16QAM and 64QAM (TDD-OFDM)
Networking Mode	One-to-one and one-to-many (one to Sixteen max)
Serial Port	1x UART Port (TTL232)
Baud Rate	115200bps
Video Input	IPCam
Channel Latency	10ms
Movement Speed	Supports no less than 120km/h
Power Input	12VDC (7V-30V)
Working Current	≤0.5A
Power Consumption	<6W (3.7W@7V, 4.37dBm@30V)
Working Temp.	-20℃ ~ +55℃
Storage Temp.	-40℃ ~ +65℃

V. Packing List

For reference only, subject to change for each project.

Item Name	Description	Qty
TX	Transmitter (Access Node)	1
RX	Receiver (Central Node)	1
Whip Antenna	1.4GHz, 2dBi, SMA Male	2
FRP Antenna	1.4GHz, 5dBi, N type Male	2
Ethernet Cable	4-pin to RJ45, 2m	2
Extension Cable	SMA M to SMA F, 30cm	2
Extension Cable	SMA M to Type N F with flange, 50cm	2
TTL 3-pin Cable	TTL 3-pin to 3-pin cable, 10cm	2
Power Supply	12V/1A DC power supply	2
