33dBm UAV Data Link | Multi-Band Bandwidth (1.4 to 40 MHz)
Key Specifications
| Attribute |
Value |
| Working Temp |
-40℃ to +65℃ |
| Output power |
33dBm |
| Power Supply |
DC12V |
| Transmission Range |
30km (LOS) |
| Data rate |
30Mbps |
| Weight |
142g |
| Encryption |
AES128 |
| Power consumption |
<12W |

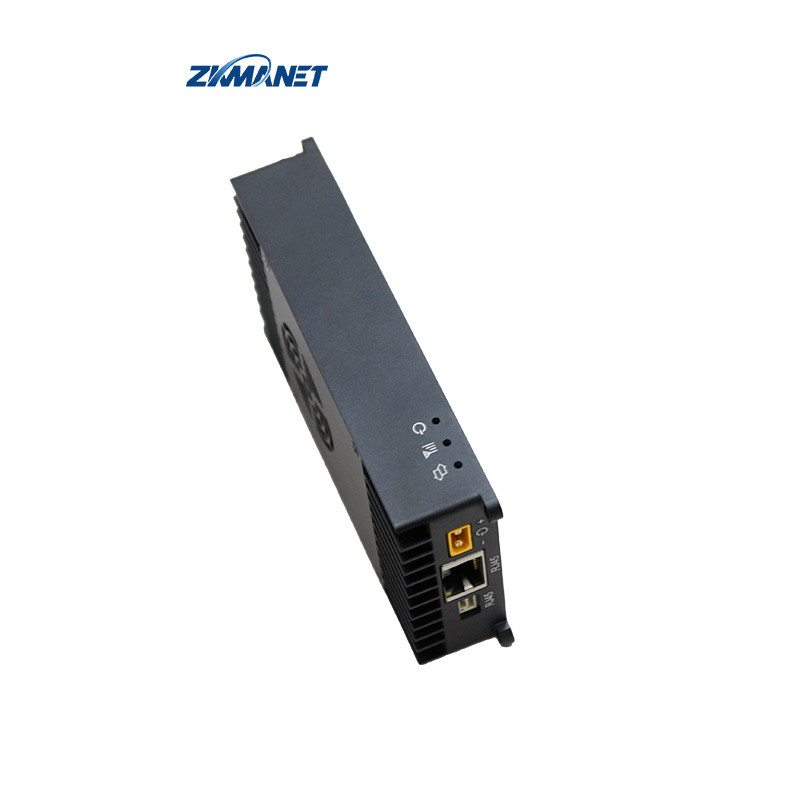

Product Overview
The Drone Data Link is a compact, lightweight (142g) communication system designed for reliable, secure, and efficient operation in demanding environments. Its IP65-rated enclosure offers protection against dust and water, making it ideal for harsh outdoor conditions where durability is critical.
Operating across 800 MHz, 1.4 GHz, and 2.4 GHz, the system supports a wide range of applications with robust, interference-resistant data transmission. Built-in AES-128 encryption ensures secure communication, protecting sensitive data even in high-risk scenarios.
With a power consumption of less than 12W, it's optimized for battery-powered drones, delivering high performance without compromising energy efficiency. Its plug-and-play design and wide compatibility make it suitable for both compact UAVs and larger platforms.
Technical Parameters
| Parameter |
Description |
| Product Type |
Aerial Robot Data Exchange Connection |
| RF Channel |
1T2R |
| LAN Interface |
RJ45×2, TTL×3 |
| Bandwidth |
1.4/2.5/5/10/20/40MHz |
| Size |
103.5×61.5×22mm |
| IP Rating |
IP65 |
| Frequency Band |
800MHz/1.4GHz/2.4GHz |
Applications
The ZKMANET2441UM Drone Data Link is ideal for:
- Search and rescue missions in remote areas
- Agricultural monitoring and spraying operations
- Industrial inspection and surveillance
- Military and defense applications
Packaging & Shipping
The product includes:
- Drone Data Link unit
- Antenna
- Power cable
- Instruction manual
Packaged in a sturdy box with foam padding (10×8×4 inches). Free shipping within the United States, international rates vary. Orders processed within 2 business days via UPS or FedEx with tracking provided.
Frequently Asked Questions
Q1. What is the brand name of the drone data link product?
A1. The brand name is ZKMANET.
Q2. What is the model number?
A2. The model number is ZKMANET2441UM.
Q3. Where is the product manufactured?
A3. Manufactured in Shenzhen.
Q4. Is the product certified?
A4. Yes, certified with CE.
Q5. What are the order details?
A5. Minimum order quantity: 1 unit at $500/PC. Delivery time: 15 days. Payment terms: TT. Supply capacity: 10,000 units/year.
