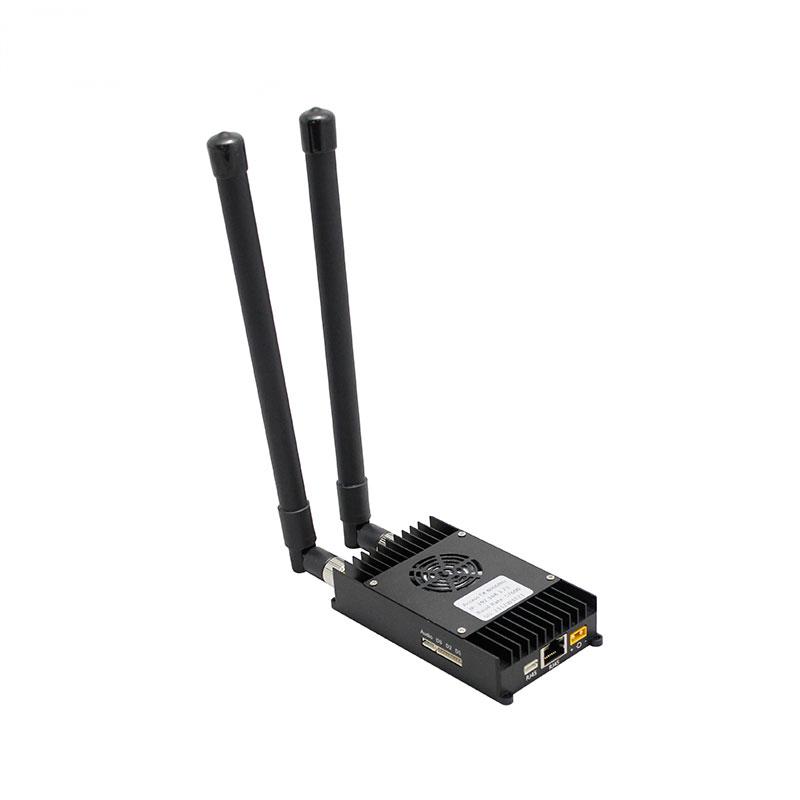

Uav Drone IP Video Transmitter Compact And Airborne Radio

Product Description

The UAV Drone IP Video Transmitter is a highly specialized compact airborne radio designed to meet the rigorous demands of modern unmanned aerial vehicle (UAV) operations. For drone manufacturers and system integrators, securing a stable, interference-resistant video and telemetry link is essential for mission success. This airborne radio serves as the reliable core of your communication payload, delivering clear, real-time video feeds and critical flight data over long distances.

Built with practical aerial deployment in mind, it addresses the common challenges of payload weight limits, power constraints, and environmental durability, ensuring your UAV systems can perform consistently in complex operational environments.

Core Features & Airborne Advantages

Supports 3 Bands (800MHz/1.4GHz/2.4GHz)

Operating in diverse environments often means facing unpredictable signal interference. This transmitter supports three distinct frequency bands-800MHz, 1.4GHz, and 2.4GHz. This multi-band capability provides operators and integrators with the flexibility to select the optimal frequency based on local regulations and environmental conditions. By switching to a less congested band, the airborne radio maintains a strong, continuous video link even in complex urban areas or dense industrial sites.

IP Transparent Data Transmission

To simplify system architecture, this device features true IP transparent data transmission. This means the transmitter acts as a direct, invisible bridge between your airborne cameras and ground control stations. It allows standard IP-based video streams and telemetry data to pass through without requiring complex protocol conversions. This efficient data handling reduces transmission latency, ensuring that operators receive real-time visual feedback for precise drone control and effective aerial surveillance.

Compact Size and Light Weight

In airborne applications, every gram directly impacts flight performance. Engineered for minimal footprint, this compact airborne radio weighs just 142g. The ultra-lightweight design significantly reduces the payload burden on the drone, directly contributing to extended battery life and longer flight endurance. Its small form factor also ensures it can be easily integrated into tight airframes, making it suitable for a wide range of multi-rotors, fixed-wing UAVs, and VTOL platforms.

Low Power Consumption

Power efficiency is a critical factor for any UAV payload. This transmitter features an optimized low power consumption design, ensuring it draws minimal current from the drone's primary power source. By conserving battery capacity, it leaves more energy available for propulsion and other essential onboard sensors, maximizing the overall operational time of the aerial system during extended mapping, inspection, or monitoring missions.

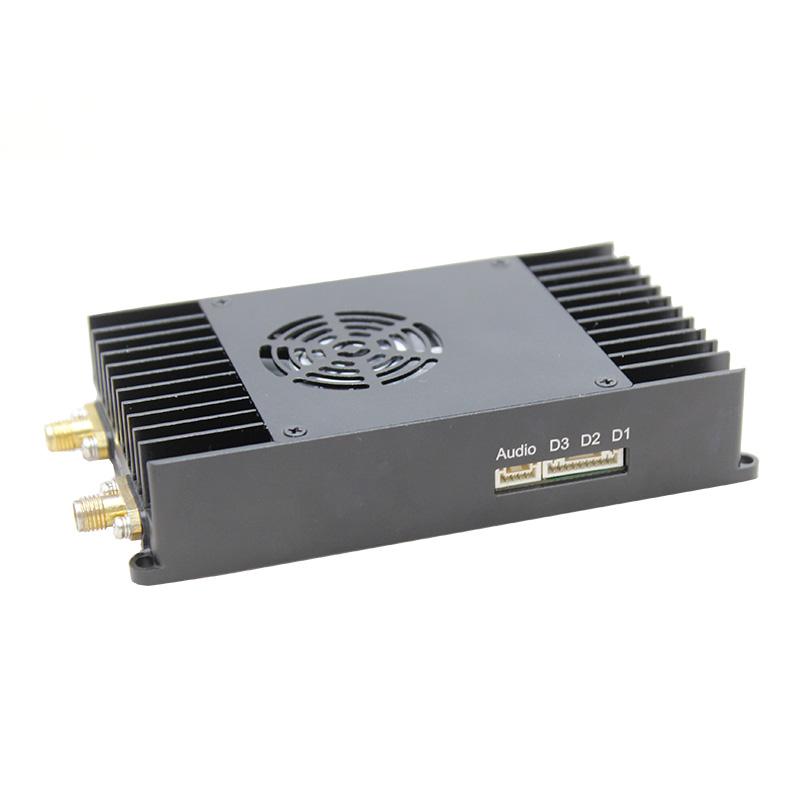

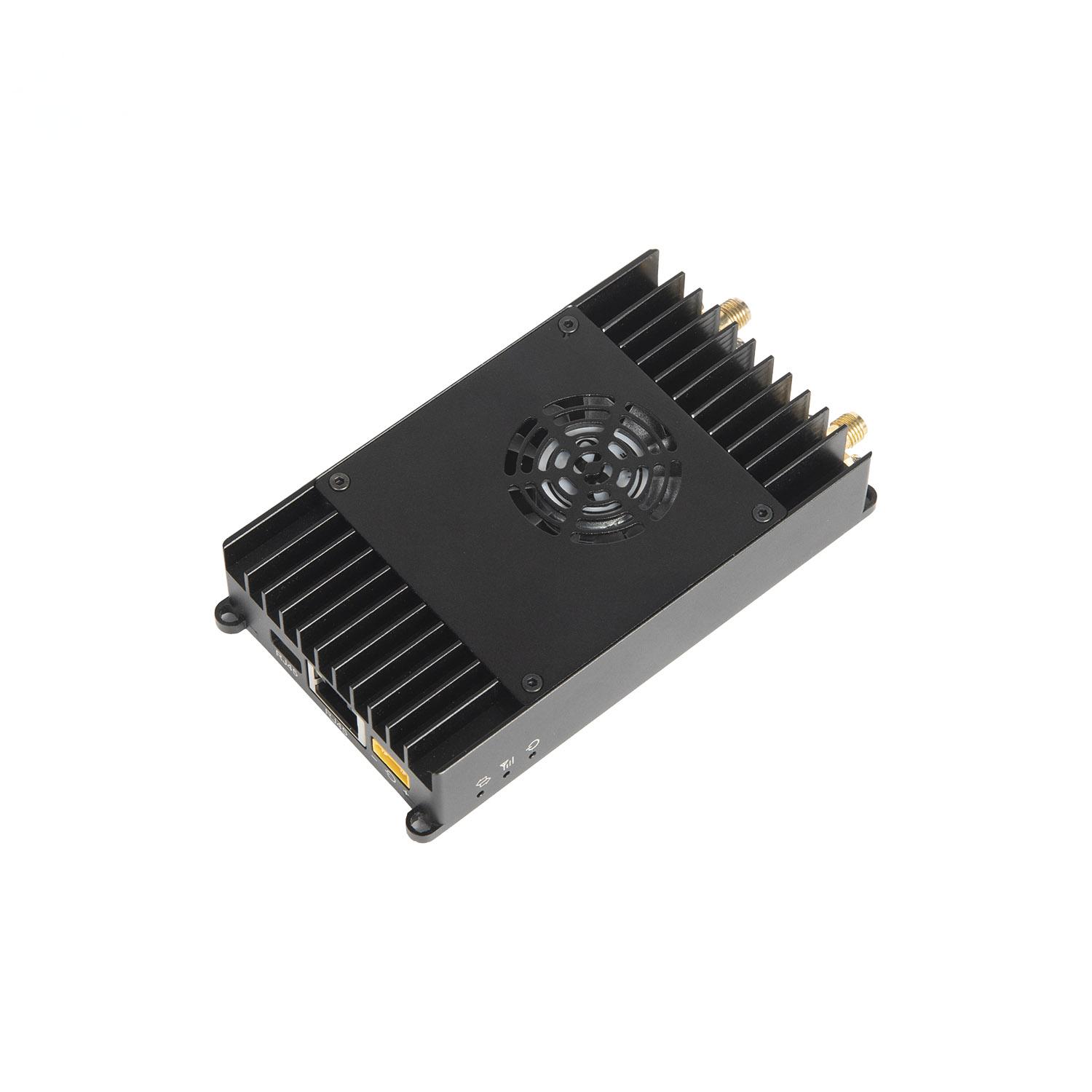

Rugged Aluminum Alloy Housing

Drones frequently operate in harsh outdoor conditions, exposing internal electronics to vibrations, dust, and temperature fluctuations. To ensure long-term reliability, the transmitter is enclosed in a rugged aluminum alloy housing. This durable shell not only protects sensitive internal components from physical impacts and electromagnetic interference but also acts as an efficient heat sink, maintaining optimal operating temperatures during continuous video transmission.

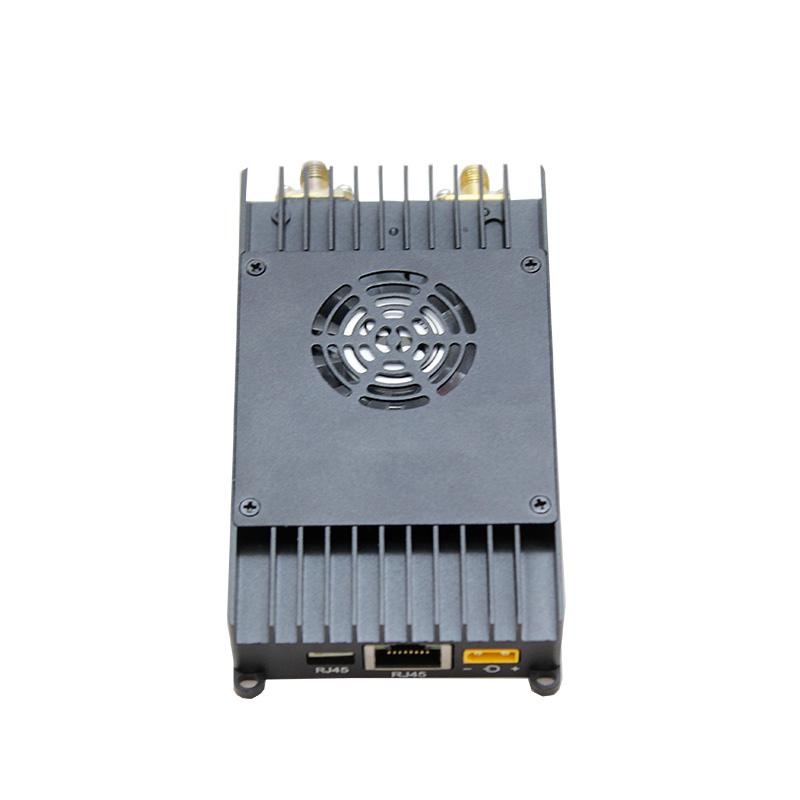

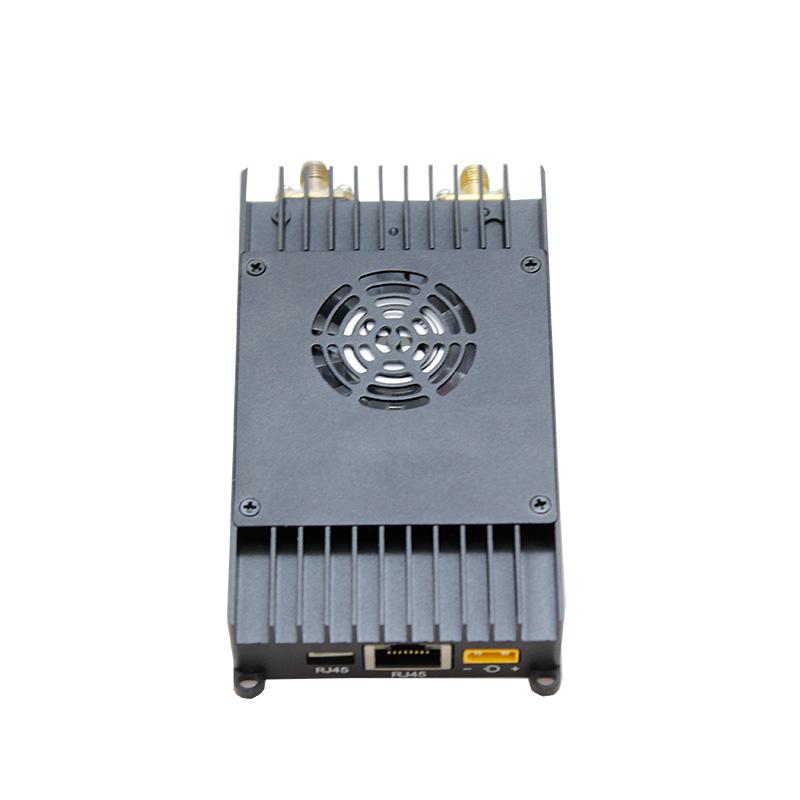

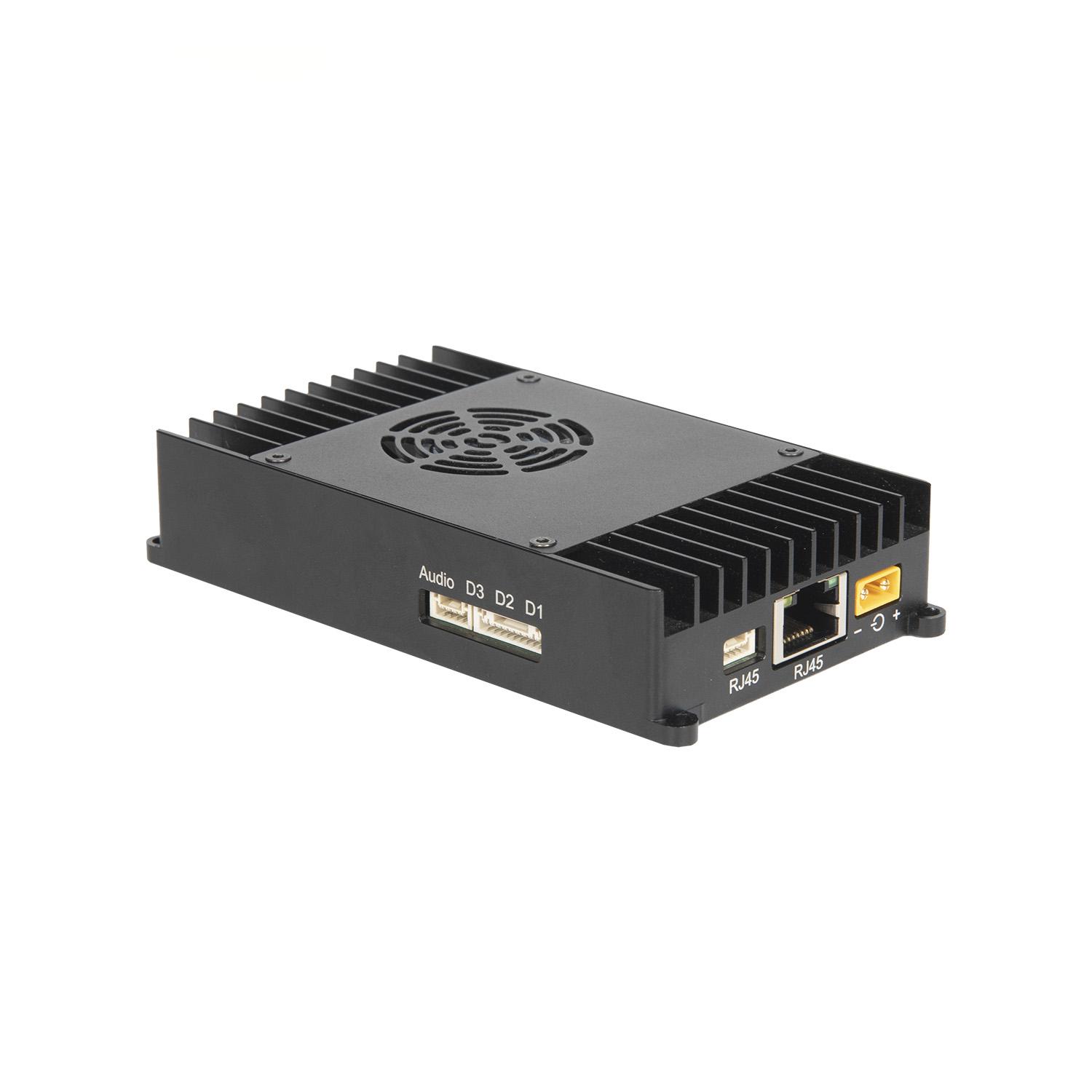

With TTL and RJ45 Port

Facilitating straightforward integration, the transmitter is equipped with standard TTL and RJ45 ports. The RJ45 interface provides a direct, high-speed connection for IP cameras and onboard network switches, while the TTL port is ideal for interfacing with flight controllers to transmit essential telemetry data. This dual-port configuration streamlines wiring and setup, allowing integrators to build comprehensive video and data links with minimal effort.

Technical Parameters

The following technical specifications detail the RF capabilities, network performance, and physical characteristics of the UAV drone IP video transmitter, providing essential data for system integration and compatibility assessment.
