UAV Data Link With MANET And AES256 Encryption

Product Description

The UAV Data Link featuring Mobile Ad Hoc Network (MANET) capabilities and AES256 encryption is engineered to provide secure, resilient, and high-capacity communication for unmanned aerial vehicles. Designed to meet the demanding requirements of modern drone deployments, this system ensures stable connectivity even in challenging environments. By integrating advanced network topologies with strict cryptographic standards, it delivers a dependable foundation for critical video, telemetry, and command data streams. For procurement teams and system integrators, selecting a reliable data link is essential to reducing operational risks and ensuring continuous control over valuable aerial assets. This module is specifically developed to address the complexities of long-range, multi-node communication, offering a scalable solution for diverse airborne missions.

Advanced MANET Architecture and Uncompromising Security

At the core of this transmission system is its comprehensive support for dynamic networking. Unlike traditional point-to-point architectures that rely on a single line of communication, MANET allows multiple nodes to dynamically route data, creating a self-forming and self-healing network. This means that if one node drops out or encounters interference, the network automatically reroutes the data through other available nodes. This capability significantly enhances operational range and reliability, especially in non-line-of-sight (NLOS) conditions, complex urban environments, or multi-drone swarming scenarios. To protect sensitive information during transmission, the system incorporates AES256 encryption. This advanced cryptographic protocol ensures that all transmitted video feeds, flight telemetry, and control commands remain secure against unauthorized interception or tampering. For industrial, tactical, and security-focused applications, this level of data protection is critical to maintaining mission integrity and safeguarding proprietary information.

High-Capacity Data Transmission and Frequency Adaptability

Bandwidth and frequency flexibility are critical factors for stable UAV operations. This data link provides an impressive data rate of up to 56Mbps, delivering ample capacity for high-definition video streaming, complex sensor data aggregation, and real-time telemetry without latency bottlenecks. The high throughput ensures that ground control stations receive clear, uninterrupted visual and operational data, which is vital for precise decision-making during active flights. Operating within the standard 1300-1500MHz frequency band, the system offers reliable signal penetration and distance capabilities, balancing range with data capacity. Furthermore, the frequency range is fully customizable from 70MHz to 6GHz. This broad customization spectrum allows purchasing managers and engineers to adapt the equipment to specific regional spectrum regulations, avoid local RF interference, or meet unique project requirements across different global markets.

Versatile Integration, Positioning, and User-Friendly Management

Designed for versatile payload and ground station integration, this system features full transparent IP data transmission. This enables straightforward compatibility with a wide range of IP-based devices, network infrastructures, and third-party software, significantly reducing integration time and development costs. The inclusion of an HDMI input facilitates a direct and dependable connection to high-resolution cameras and optical payloads, ensuring that video data is transmitted with maximum clarity. For precise tracking, synchronization, and spatial awareness, the unit fully supports multi-constellation GNSS, including GPS, BD, and GLONASS. This ensures accurate positioning data is always available for both the UAV and the network nodes. Managing the entire network infrastructure is streamlined through dedicated Web and PC software management interfaces. These intuitive platforms grant operators comprehensive control over network configurations, real-time monitoring, and system diagnostics, ensuring that the data link can be easily maintained and optimized in the field.

Features

Supports Mobile Ad Hoc Network (MANET)

Frequency 1300-1500MHz (70MHz-6GHz customizable)

Supports AES256 Encryption

Data rate up to 56Mbps

Supports GPS/BD/GLONASS (GNSS)

Full transparent IP data transmission

Supports Web and PC software management

With HDMI input

Technical Parameters

Review the comprehensive technical specifications of the UAV Data Link below. These parameters detail the RF performance, MANET networking capabilities, electrical requirements, and physical dimensions, providing essential data for precise system integration, mission planning, and secure communication deployment.

Product Uses

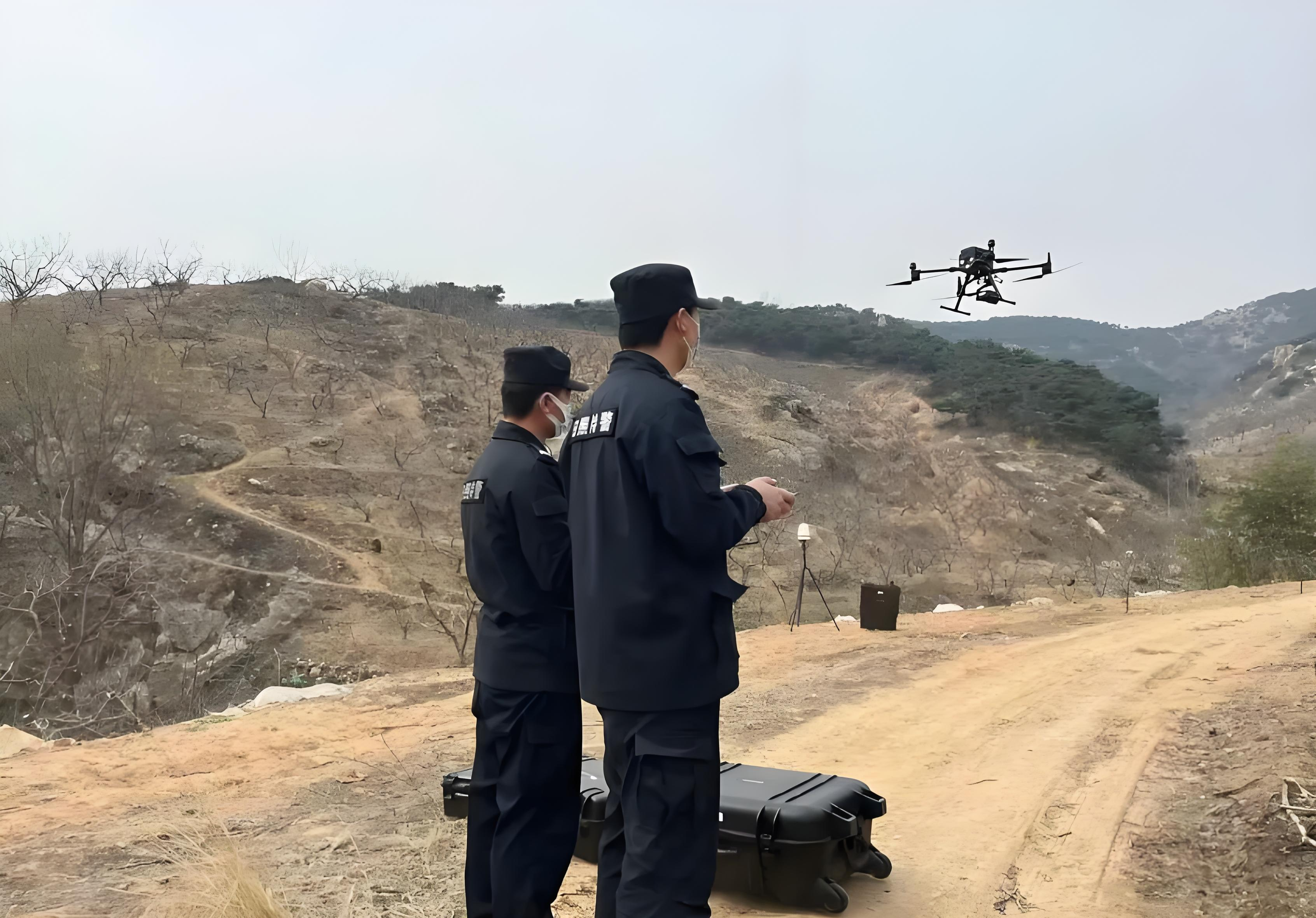

Designed for complex operational environments, this UAV data link supports robust, high-bandwidth communication for unmanned systems. Typical application scenarios include tactical drone swarms, beyond visual line of sight (BVLOS) surveillance, industrial inspections, and emergency response coordination. The integrated MANET (Mobile Ad Hoc Network) technology ensures seamless multi-hop routing in dynamic environments, while AES256 encryption secures critical data transmissions across all active nodes.
