UAV Data Link MANET AES256

Product Description

The UAV Data Link MANET AES256 is an advanced, high-performance communication solution specifically engineered for demanding unmanned aerial vehicle (UAV) operations, robotics, and complex tactical environments. By integrating advanced Mobile Ad Hoc Network (MANET) capabilities with a highly durable hardware design, this data link ensures resilient, high-bandwidth connectivity even when traditional communication infrastructures are unavailable or compromised. It serves as an essential component for modern drone fleets, autonomous vehicles, and critical field operations that require reliable, real-time data exchange and smooth network integration.

Core Features & Operational Advantages

Advanced MANET Technology for Dynamic Operations

At the core of this UAV data link is its comprehensive support for Mobile Ad Hoc Network (MANET) architecture. Unlike traditional point-to-point communication systems, MANET allows multiple nodes to dynamically route and relay information without relying on centralized infrastructure. This self-forming and self-healing capability is crucial for UAV swarms, mobile command centers, or operations in challenging terrains with physical obstructions. If one node is compromised, moves out of range, or experiences interference, the network automatically reroutes the signal through other available nodes, maintaining a continuous and stable connection for mission-critical communications.

High-Speed Data Rate and Flexible Frequency Range

Designed to handle data-intensive applications, the system delivers an impressive data rate of up to 56Mbps. This high throughput is fully capable of supporting the simultaneous transmission of telemetry data, control commands, and high-definition video streams without latency issues. Operating on a standard frequency of 1300-1500MHz, the data link also offers a highly adaptable, customizable frequency range from 70MHz to 6GHz, depending on specific project requirements and regional spectrum regulations. Furthermore, it features full transparent IP data transmission, ensuring smooth integration with existing IP-based networks, cameras, and sensors. An HDMI input is also available as an optional feature, providing direct and straightforward video feed integration for surveillance and monitoring tasks.

Uncompromised Security with AES256 Encryption

In professional, industrial, and tactical UAV deployments, data security is a paramount concern. This MANET data link supports advanced AES256 encryption, providing top-tier protection against unauthorized interception, eavesdropping, and data breaches. Whether transmitting sensitive flight coordinates, proprietary surveillance footage, or confidential operational commands, the AES256 encryption standard ensures that all communication streams remain secure and private from end to end, significantly reducing the risk of cyber threats in the field.

Rugged IP66 Housing and Reliable GNSS Positioning

Field operations often expose sensitive equipment to harsh environmental conditions. To address this challenge, the UAV data link is built with a rugged IP66-rated housing, offering superior resistance to dust ingress and powerful water jets. This durable construction ensures reliable performance in extreme weather, maritime environments, or heavy industrial sites, thereby reducing maintenance costs and extending the equipment's lifespan. Additionally, the system supports comprehensive GNSS capabilities, including GPS, BD (BeiDou), and GLONASS. This multi-constellation support guarantees precise positioning, navigation, and tracking, which is vital for autonomous flight control and accurate spatial data mapping.

Streamlined Configuration and Management

To simplify deployment and daily operations for system integrators and field operators, the data link supports intuitive management through both Web interfaces and dedicated PC software. Users can easily configure network parameters, monitor link status in real-time, adjust frequency settings, and manage encryption keys from a centralized, user-friendly dashboard. This streamlined management approach significantly reduces setup time, minimizes operational errors, and enhances the overall efficiency of complex field deployments.

Technical Parameters

The following technical specifications detail the performance capabilities of the UAV Data Link MANET AES256. Designed for demanding unmanned aerial vehicle operations, this system provides robust RF performance, extensive multi-hop network capabilities, and reliable environmental endurance to support complex project requirements and secure data transmission.

Product Uses

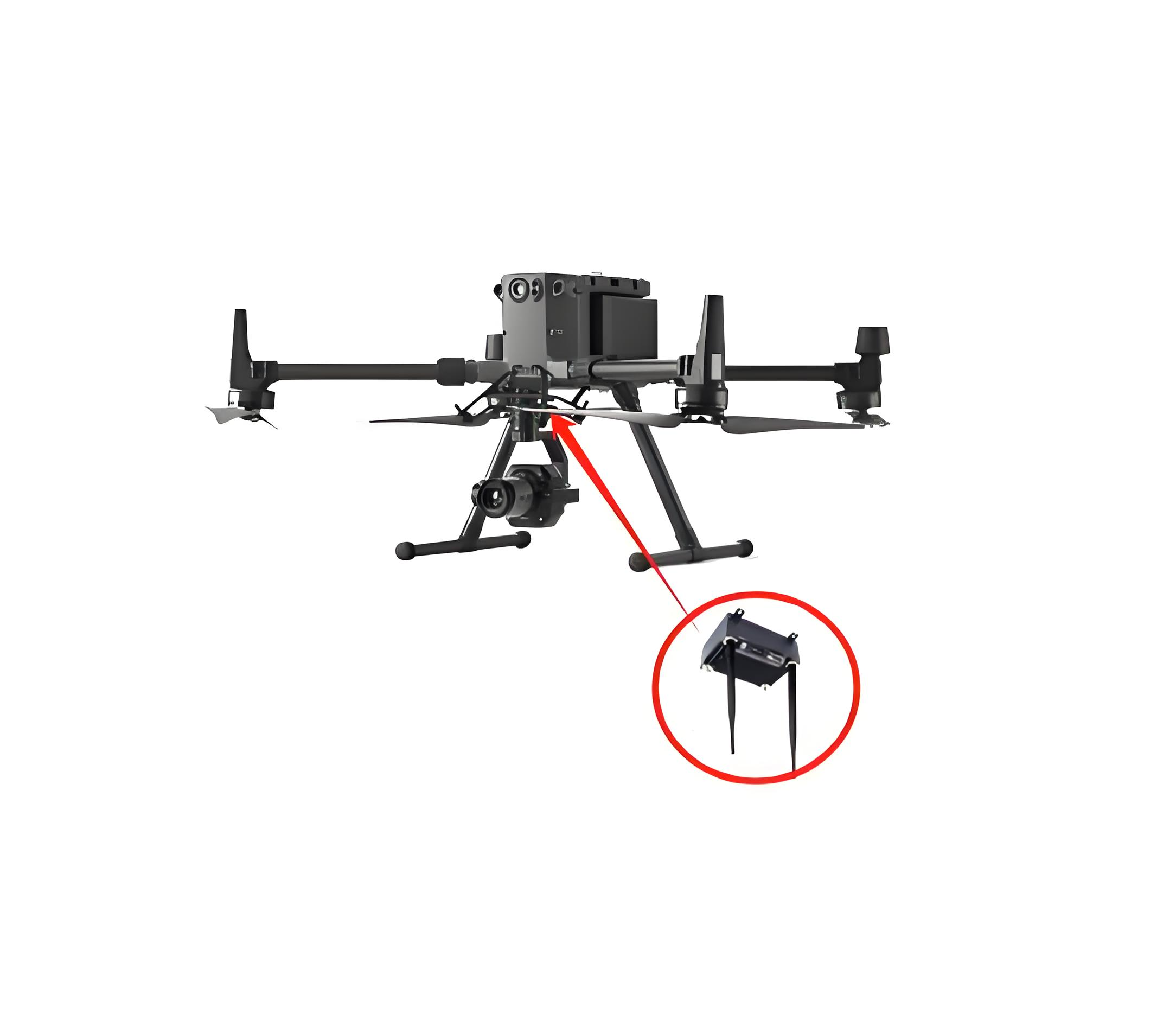

Our MANET data link is engineered for versatile integration across various UAV platforms, supporting non-line-of-sight (NLOS) communications, drone swarm networking, and secure video/data transmission in dynamic environments. The diagrams below illustrate typical network topologies and deployment configurations, demonstrating how the system maintains connectivity even in complex terrain.

Product Video

Watch the video below to see the UAV Data Link in action. This demonstration highlights the system's rapid network access, stable transmission capabilities, and seamless integration process, providing practical insights for procurement evaluation.
