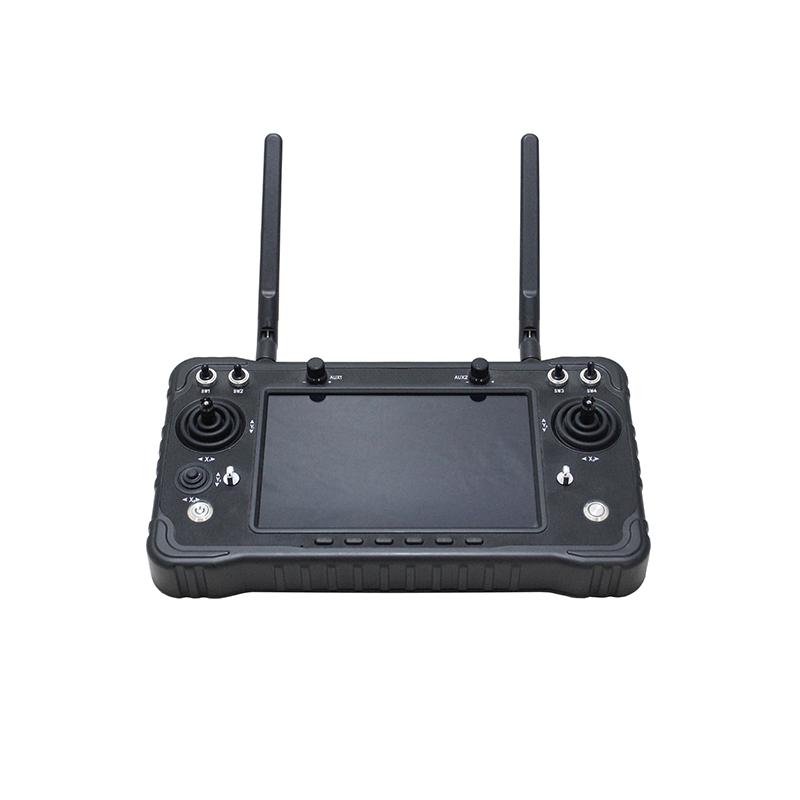

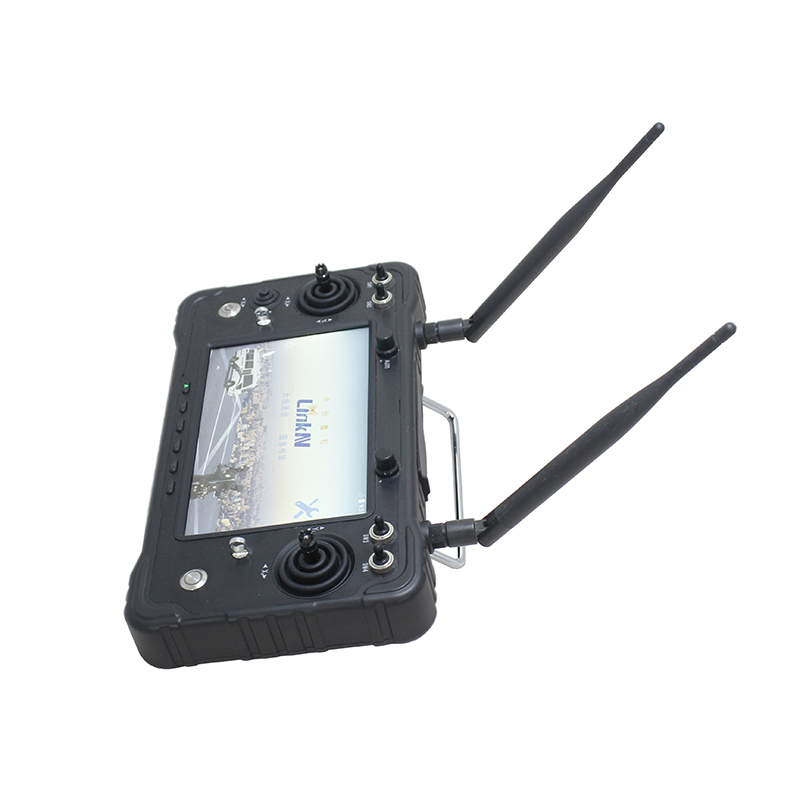

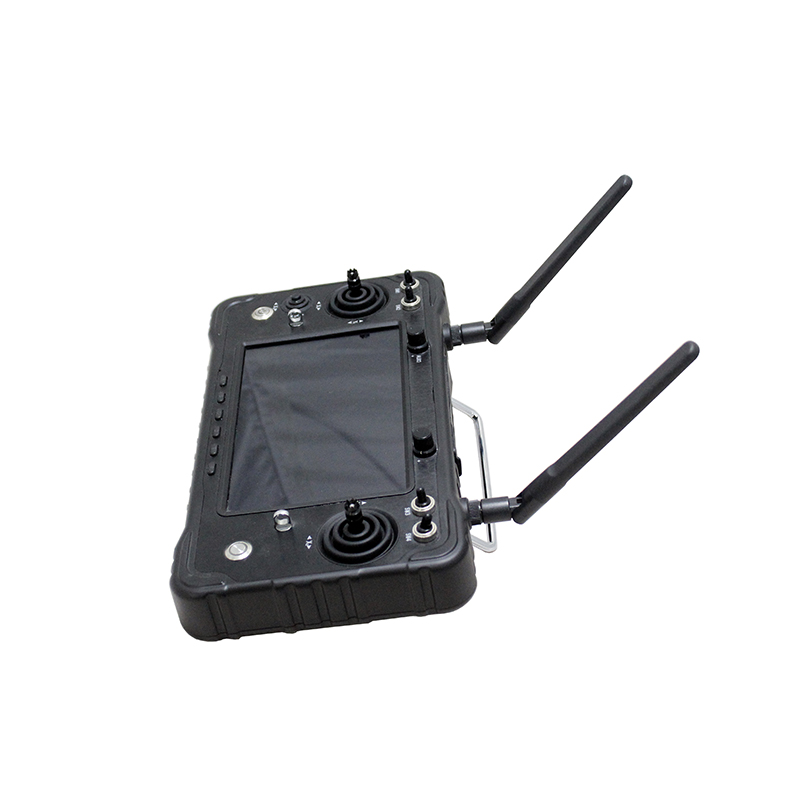

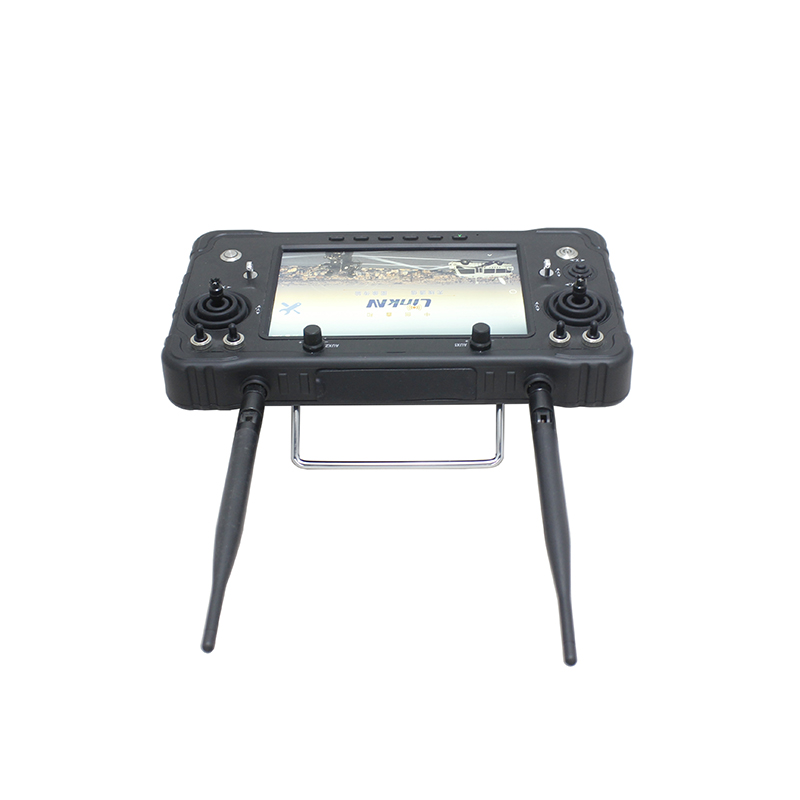

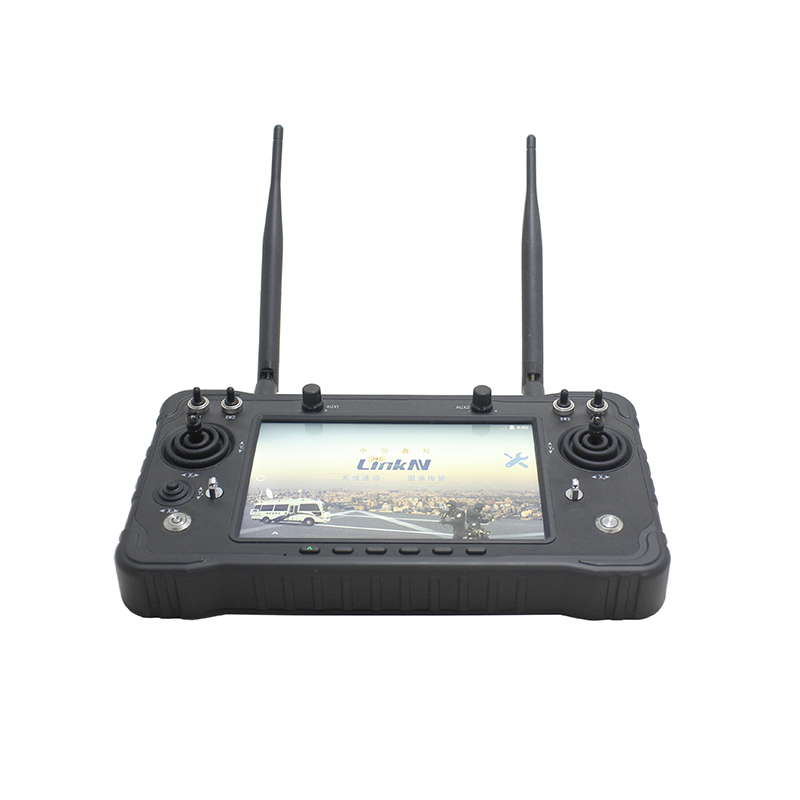

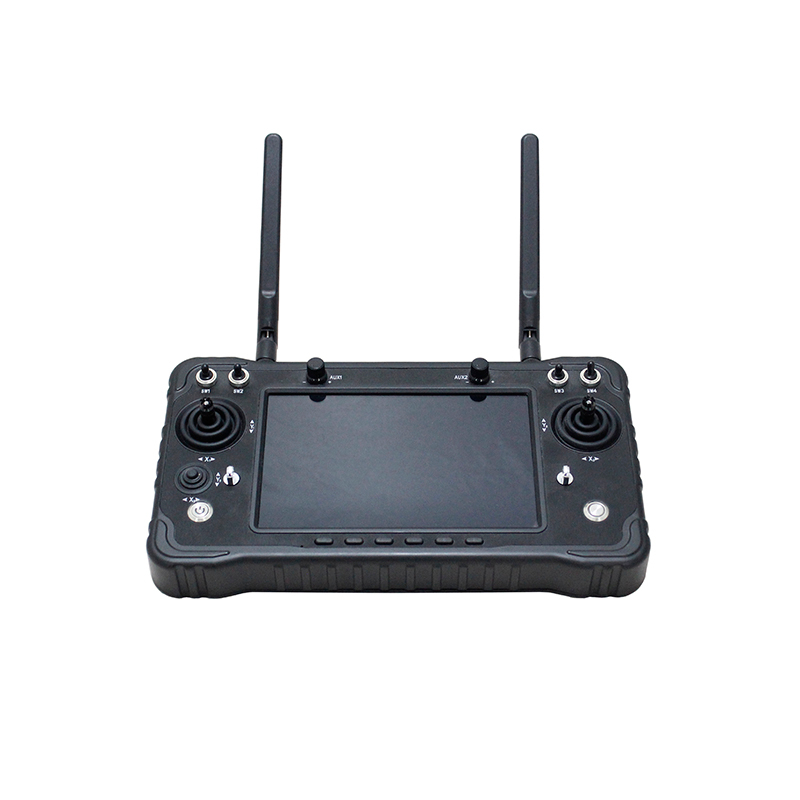

Portable Ground Control Station for UGV Robots with 7.1-inch Display And Battery

Product Description

The Portable Ground Control Station for UGV (Unmanned Ground Vehicle) Robots is engineered to deliver precise control, reliable communication, and dependable durability in the most demanding operational environments. Designed for professional operators, this advanced control unit integrates a high-performance processing system with a rugged exterior, ensuring that your robotic fleets perform optimally even under extreme conditions. Whether deployed for industrial inspections, security patrols, or specialized field operations, this ground control station provides a secure and highly responsive interface for efficient UGV management.

Core Features and Operational Advantages

Rugged Durability for Harsh Environments

Built to withstand the rigors of heavy-duty field use, the control station features a rugged aluminum alloy housing with strong heat dissipation. This premium construction not only protects internal components from physical impacts but also maintains optimal operating temperatures during extended missions. The device boasts an IP67 waterproof and dustproof rating, ensuring reliable functionality in rain, mud, or dusty industrial sites. Additionally, it comes equipped with a strap for easy operation in harsh environments, allowing for secure handling and reducing operator fatigue while moving through challenging terrains.

Superior Display and Transmission Performance

Visibility and situational awareness are critical for effective UGV operations. This ground control station is equipped with a 7.1-inch HD 1800nits high-brightness screen. This ensures that the display remains clearly visible even under direct, harsh sunlight. Powered by advanced SDR technology, the system enables clearer image rendering and lower latency. Operators can rely on the station as it transmits 1080P video and bi-directional data at the same time, providing real-time feedback and precise control over the robotic units without signal degradation.

Powerful Processing and Versatile Connectivity

At the core of this portable station lies a powerful Surge processor paired with an Android embedded system. This combination ensures smooth multitasking, rapid response times, and a familiar, user-friendly software environment. To accommodate diverse operational requirements, the device features a comprehensive suite of connections, including RJ45, USB Type-C, OTG, and TF card interfaces. These connections facilitate easy data transfer, network integration, and peripheral expansion. Furthermore, the system supports AES encryption, safeguarding your critical video feeds and control data against unauthorized access and ensuring highly secure communication channels.

Intuitive Operation and Extended Battery Life

Designed with the operator in mind, the control station features an ergonomic layout with easy operation rockers, switches, and buttons. This tactile interface allows for precise, eyes-free control of UGV movements and payload functions, which is essential during high-stakes operations. The system also supports one-to-multiple control, enabling a single operator to manage a fleet of robots efficiently from a centralized unit. To support long-duration missions, the integrated power system delivers up to 6-10 hours long battery life on a single charge, minimizing downtime and maximizing operational productivity in the field.

Technical Parameters

Product Uses & Application Scenarios

Designed for demanding field operations, this portable ground control station serves as a highly integrated command center for UGV (Unmanned Ground Vehicle) robots. In practical applications, operators rely on the remote control display to monitor live video feeds and critical environmental data-such as fire points and ambient oxygen concentration-in real time. To accommodate complex operational environments, the system supports flexible viewing configurations: users can choose to display multiple video streams simultaneously for comprehensive situational awareness, or isolate a single video feed for focused monitoring.

Beyond observation, the station empowers operators to issue precise control commands based on real-time front-end feedback from the scene. This bidirectional communication ensures rapid response capabilities during critical missions. The comprehensive command suite includes, but is not limited to:

• Mobility & Navigation: Precise robot motion control and dynamic vehicle speed control for navigating hazardous or confined terrains.

• Visual Inspection: PTZ (Pan-Tilt-Zoom) camera control to actively track targets and assess surroundings without repositioning the vehicle.

• Mission-Specific Actions: Water cannon control for firefighting and hazard mitigation applications.

• Signaling & Safety: Car light control for low-visibility environments, alarm triggers for emergency signaling, and a dedicated emergency stop button for immediate operational halt.

• Data Management: Screen selection and real-time video recording to document missions for post-operation analysis and reporting.
