MANET9304-W
The MESH Radio Wireless Transmitter with GPS and HDMI support is an advanced communication solution engineered for demanding operational environments. Designed to establish stable, self-forming, and self-healing networks, this transmitter ensures continuous connectivity when traditional infrastructure is unavailable. Whether deployed for emergency response, industrial monitoring, or complex field operations, it delivers exceptional performance in video and data transmission. By integrating multiple crucial functionalities into a single deployable unit, it significantly reduces operational complexity while enhancing situational awareness and team coordination for professional procurement needs.
Data rate up to 56Mbps: At the core of this wireless transmitter is its impressive data handling capacity, offering a reliable data rate of up to 56Mbps. This high-bandwidth capability is critical for modern operations that rely heavily on real-time information sharing. It effortlessly supports the simultaneous transmission of high-definition video streams, large telemetry files, and continuous background data without experiencing critical latency. For project managers and field commanders, this means receiving clear visual feeds and accurate sensor readings instantaneously, enabling faster and more informed decision-making in time-sensitive scenarios.
Supports two-way voice intercom and WIFI: Effective communication is paramount in any field operation. This MESH radio supports seamless two-way voice intercom, allowing frontline personnel and command centers to maintain constant verbal contact over secure channels. This streamlines equipment loads by minimizing the reliance on separate communication devices. Furthermore, the integrated WIFI support extends the network's accessibility. It allows local devices, such as tablets, smartphones, or laptops, to connect directly to the MESH network, creating a versatile local hub for data access and control, thereby maximizing operational flexibility.
Supports GPS/BD: Situational awareness is further enhanced by the built-in support for dual-mode GPS and BD (BeiDou) satellite navigation systems. This feature provides highly accurate, real-time location tracking of the transmitter unit. For fleet management and personnel safety, command centers can continuously monitor the exact geographic coordinates of deployed assets. This capability ensures optimal resource allocation and facilitates rapid response if an emergency arises in challenging or remote terrains.
Supports HDMI input and IP data transparent transmission: Designed for comprehensive multimedia integration, the transmitter features a direct HDMI input. This allows for straightforward connection to high-definition cameras, drones, or other video sources, bypassing complicated conversion processes and preserving original video quality. Complementing this is the support for IP data transparent transmission. This crucial function ensures that data packets are transmitted exactly as they are received, guaranteeing seamless compatibility with existing IP-based networks, software platforms, and proprietary control systems, which greatly simplifies system integration for technical procurement teams.
Easy operation: Despite its sophisticated internal technology, the MESH radio is characterized by its exceptionally easy operation. It is designed for rapid deployment, allowing users to establish a reliable communication network quickly, even in high-stress situations. The intuitive interface and automated network-forming capabilities minimize the learning curve, reducing the need for extensive technical training. This user-centric design lowers overall deployment costs and ensures that field teams can focus on their primary tasks rather than managing complex communication equipment.
The following technical specifications detail the core capabilities of the MESH Radio Wireless Transmitter. Designed for demanding communication environments, these parameters-including RF performance, network latency, and physical dimensions-provide essential data to help you evaluate the equipment for your specific project requirements and ensure reliable integration.
RF Parameters | |
Default Frequencies | 1300-1500MHz |
Channel Bandwidth | 2.5M/5M/10M/20MHz |
RF Waveform | TDD-COFDM + 2T2R |
Receive Sensitivity | -100dBm@2.5MHz |
Modulation Type | BPSK/QPSK/16QAM/64QAM (adaptive) |
Network Parameters | |
Data rate | Up to 28Mbps@10MHz & 56Mbps@20MHz |
Delay | 7ms@2.5MHz/hop |
Start Time | 27s |
Positioning | GPS/BD |
Network Access Time | <1s |
Network Extension | WIFI AP |
Physical/Environment | |
Weight | 12.5kg |
Dimensions | 2U (483*390*89mm) |
Electrical Parameters | |
Working Voltage | 24 VDC/230 VAC |
Interface | |
LAN Interface | *2 |
PTT Port | *1 |
Serial Port | RS422*1 |
HDMI Port (In or Out) | *1 |
GPS/BD | *1 |
WIFI interface | *1 |
MESH interface | *2 |
Power interface | *1 |

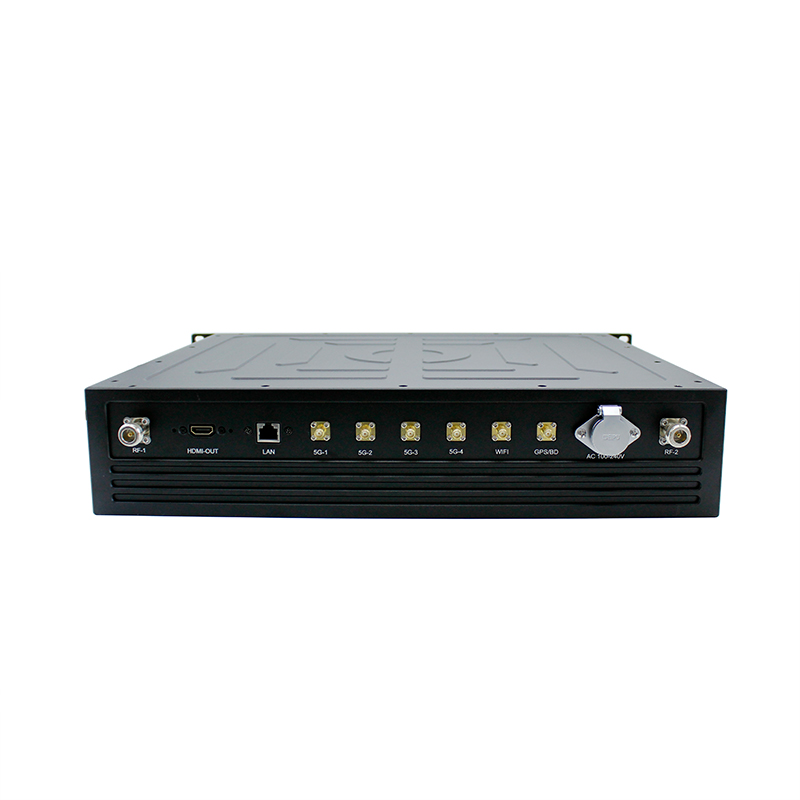

With a comprehensive range of interfaces (including LAN, HDMI, RS422, and PTT), this 2U form-factor transmitter is engineered for flexible integration into existing communication infrastructures. The dual power supply options (24 VDC / 230 VAC) further ensure adaptable deployment across various operational setups, minimizing installation complexity for your projects.
