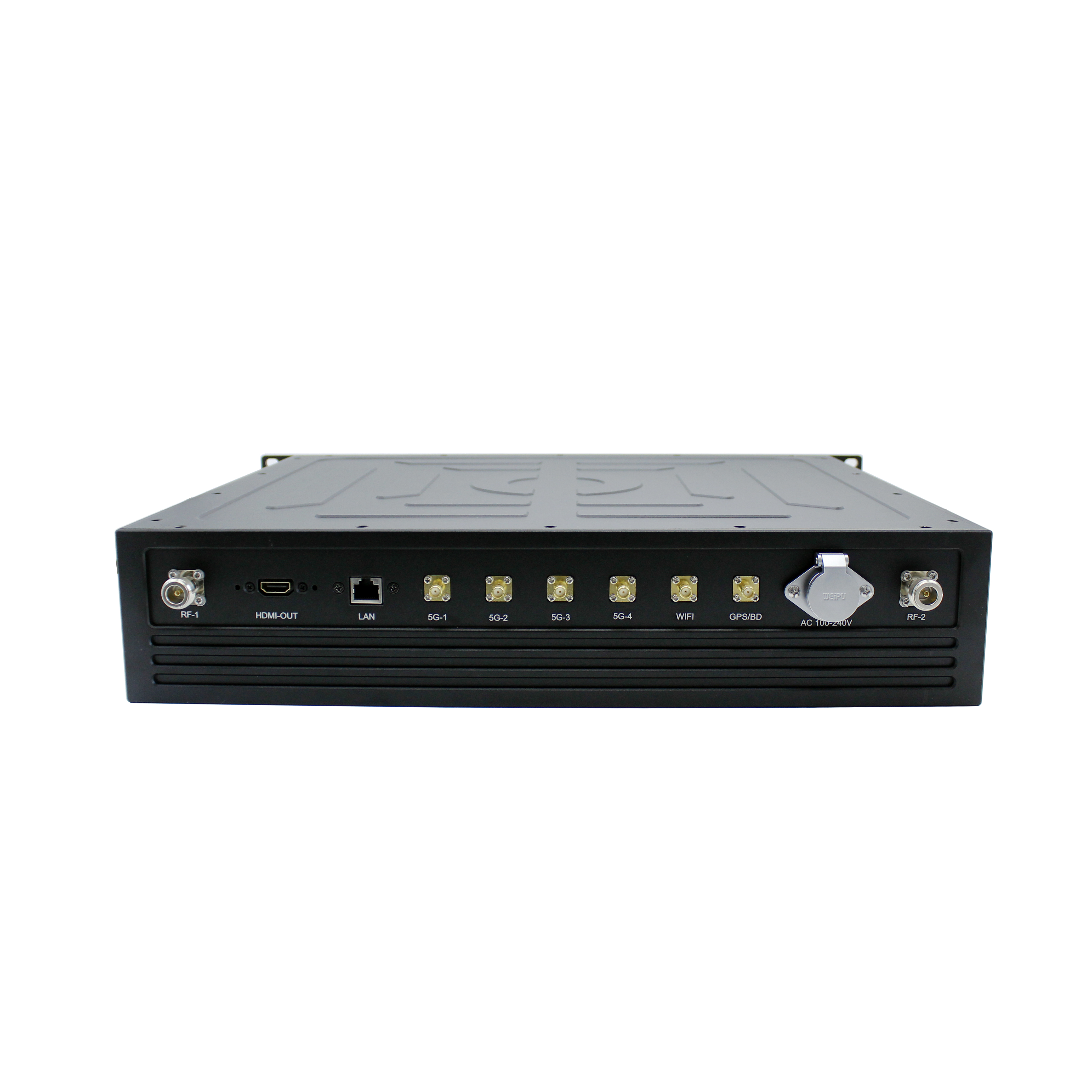

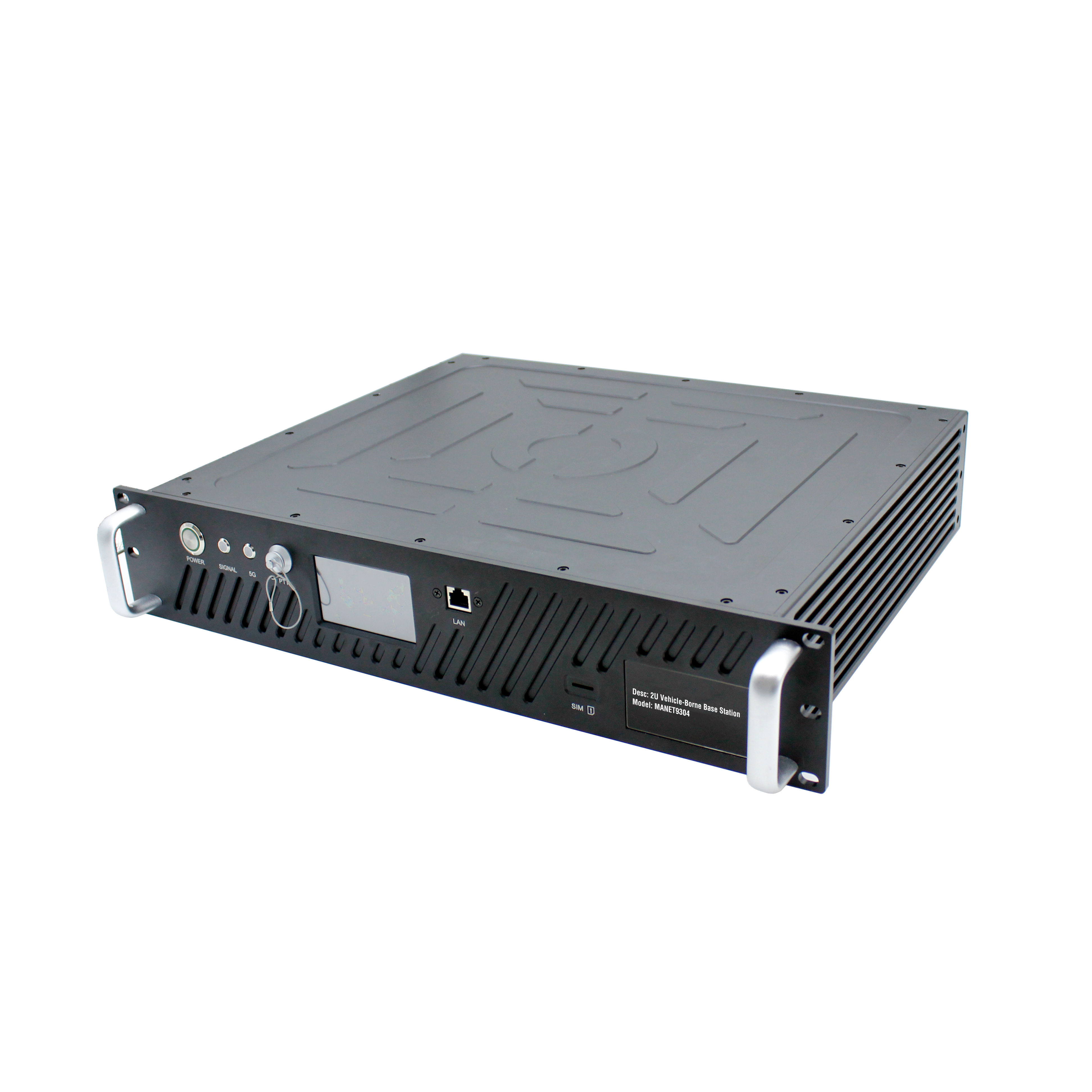

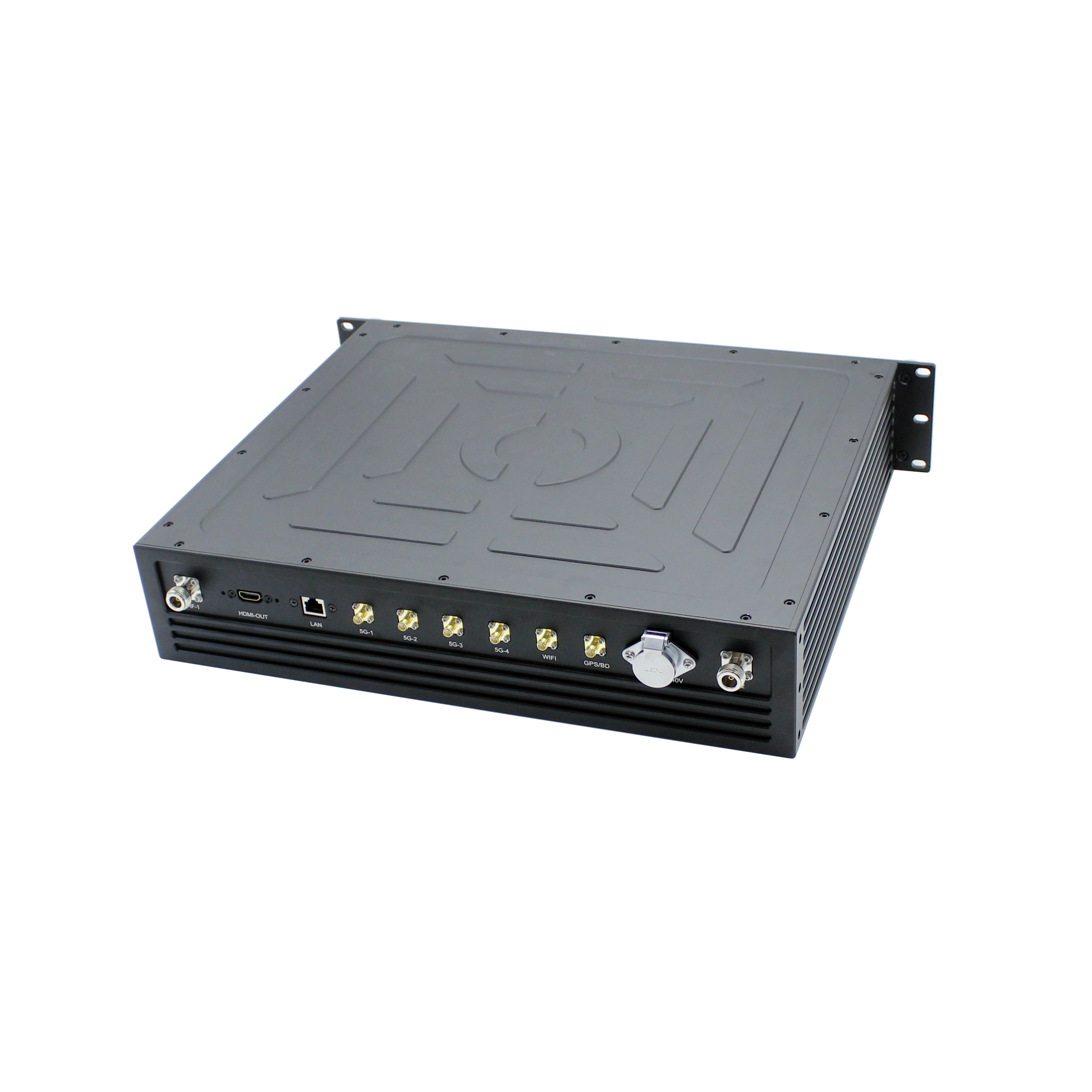

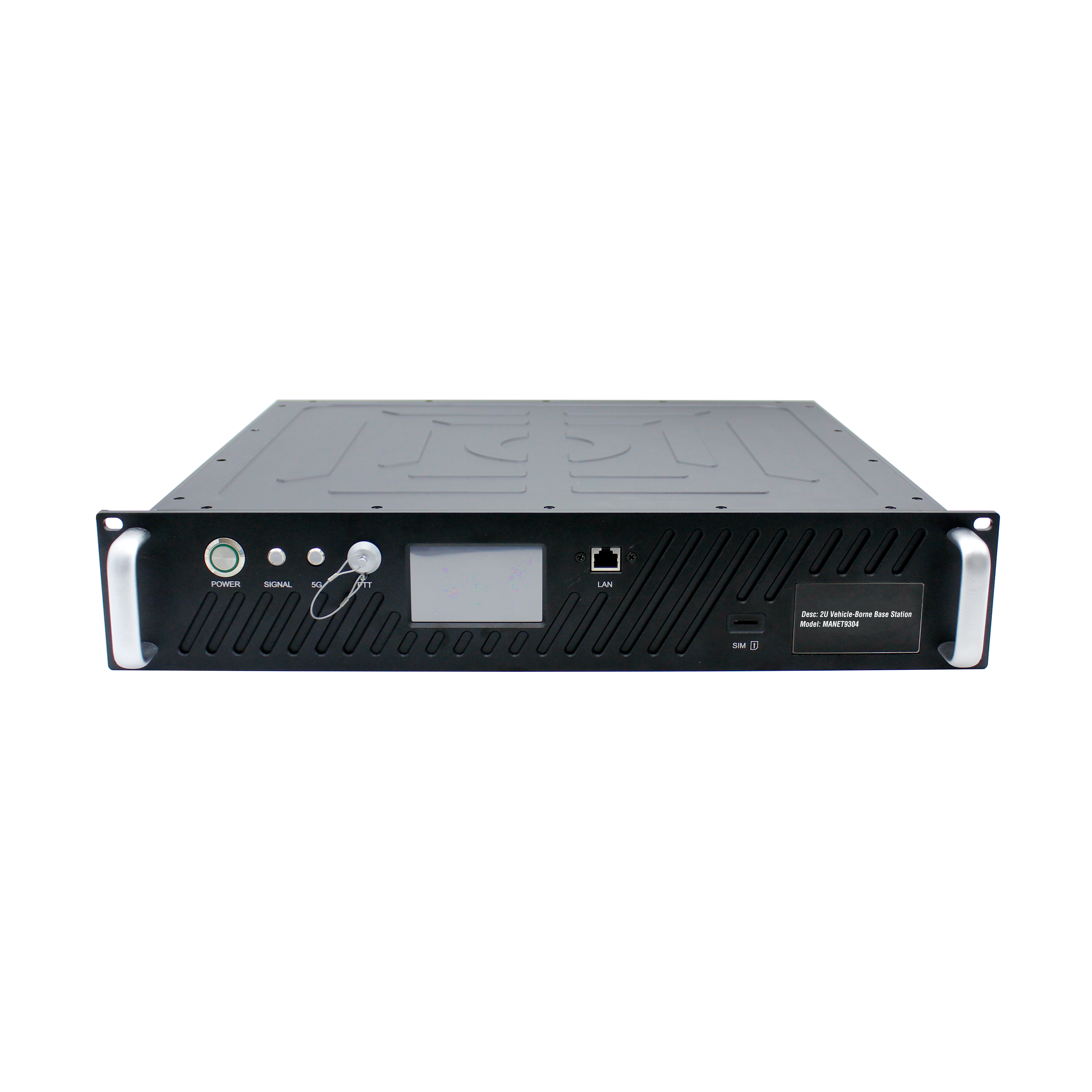

MANET9304-W Encryption Vehicle-Mounted IP Mesh Radio

MANET9304S-W is a high-power and high-data rate radio utilizing an FPGA solution. It has the capability to automatically select the optimal frequency in the presence of electromagnetic interference, enabling broadband service transmission in complex scenarios through self-organizing networks. The device is designed with professional shock absorption features, making it easy to install on vehicles, ships, and aircraft. It can be easily powered on with a single button press, without the need for configuration or parameter changes.
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

RF Parameters

Default Frequencies

1300-1500MHz(70MHz-6GHz Customizable)

Channel Bandwidth

2.5M/5M/10M/20/40MHz

RF Waveform

TDD-COFDM + 2T2R

Output Power

High power

Receive Sensitivity

-103dBm@5MHz

Modulation Type

BPSK/QPSK/16QAM/64QAM (adaptive)

Network Parameters

Data rate

96Mbps@40MHz

Delay

7ms@2.5MHz

Start Time

27s

Positioning

GPS/BD

Network Access Time

<1s

Network Extension

WIFI AP

Physical/Environment

Weight

12.5kg

Dimensions

2U (483*390*89mm)

Electrical Parameters

Working Voltage

24 VDC/230 VAC

Power Consumption

130W

Interface

LAN Interface

*2

PTT Port

*1

Serial Port

RS422*1

HDMI Port (In or Out)

*1

GPS/BD

*1

WIFI interface

*1

MESH interface

*2

Power interface

*1

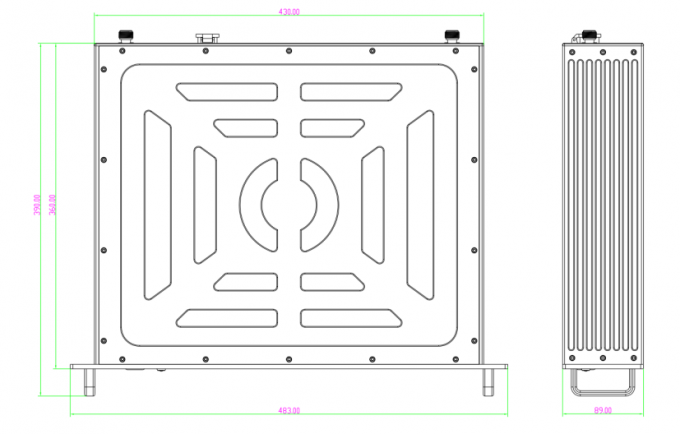

Dimensions

1.4GHz 2x40dBm 2U GPS/BD PPT WiFi AES256 Encryption Vehicle-Mounted IP Mesh Radio 0

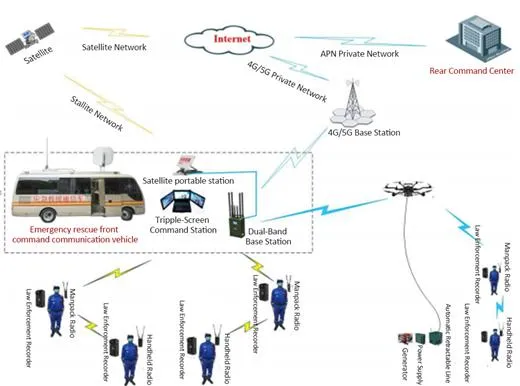

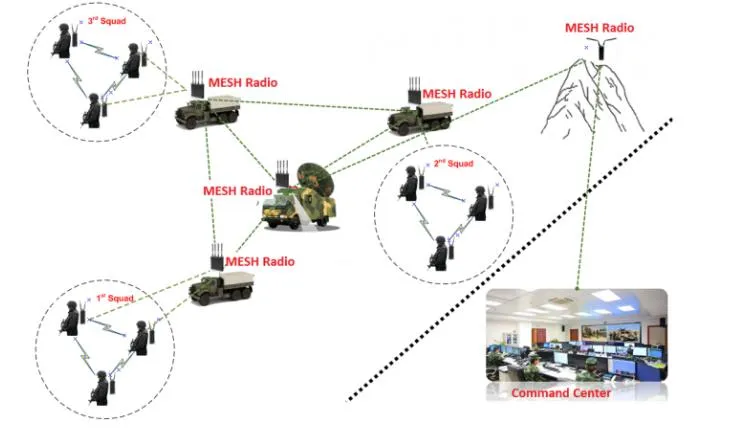

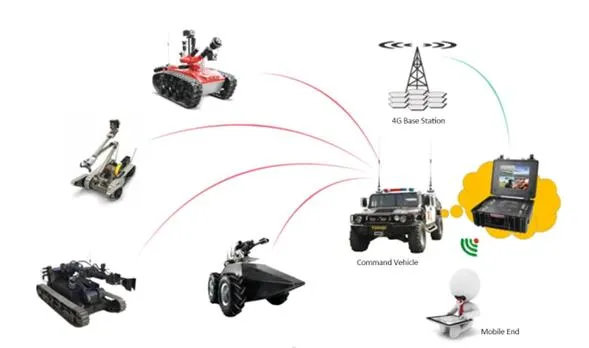

Application

1.4GHz 2x40dBm 2U GPS/BD PPT WiFi AES256 Encryption Vehicle-Mounted IP Mesh Radio 1

Company Profile

LinkAV Technology Co., Ltd is a high-tech R&D enterprise. Our products mainly take Mesh and LTE as core technologies, and are combined with auxiliary decision-making software to form a series of communication systems, including underground building emergency communication systems,  investigation communication systems, non-combat training communication systems, urban emergency communication systems, and emergency communication vehicle systems. These solutions are suitable for law enforcement agencies and government departments such as public security,forest fire prevention, civil air defense,and maritime authorities. Notably, our intelligent communication products for special robots have effectively solved the long-distance communication and control challenges of robots in complex environments.


We hold multiple patents with independent intellectual property rights, and have established a sound quality management system in line with ISO 9001 standards as well as a rigorous national standard system for critical applications. Our products are manufactured in strict compliance with such national standards and internationally recognized certifications including CCC, CE, and FCC. We have obtained the Radio Transmission Equipment Model Approval Certificate issued by the Ministry of Industry and Information Technology of China, and have passed the wireless product testing and certification by the Ministry of Public Security.


1.4GHz 2x40dBm 2U GPS/BD PPT WiFi AES256 Encryption Vehicle-Mounted IP Mesh Radio 2
1.4GHz 2x40dBm 2U GPS/BD PPT WiFi AES256 Encryption Vehicle-Mounted IP Mesh Radio 3
1.4GHz 2x40dBm 2U GPS/BD PPT WiFi AES256 Encryption Vehicle-Mounted IP Mesh Radio 4


1.4GHz 2x40dBm 2U GPS/BD PPT WiFi AES256 Encryption Vehicle-Mounted IP Mesh Radio 5

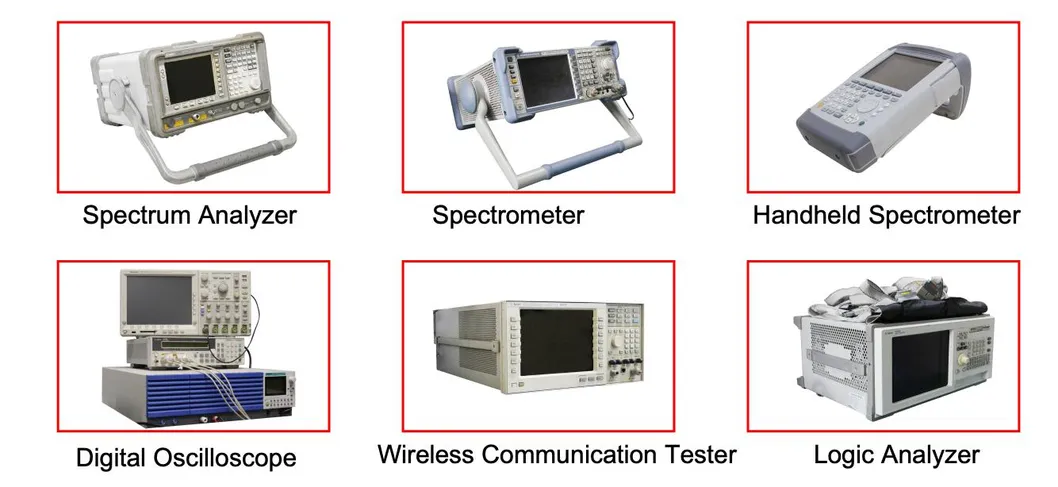

1.4GHz 2x40dBm 2U GPS/BD PPT WiFi AES256 Encryption Vehicle-Mounted IP Mesh Radio 6

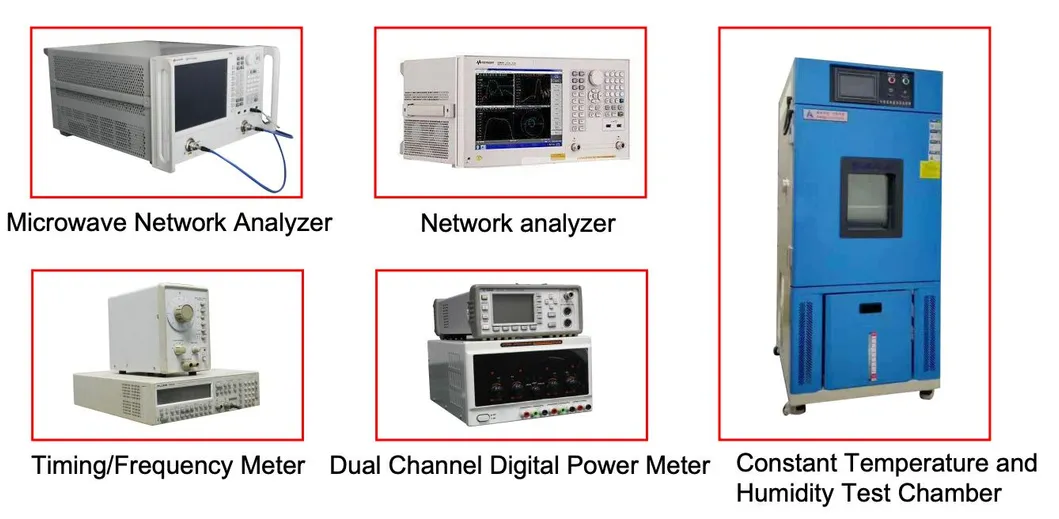

1.4GHz 2x40dBm 2U GPS/BD PPT WiFi AES256 Encryption Vehicle-Mounted IP Mesh Radio 7


FAQ

1.4GHz 2x40dBm 2U GPS/BD PPT WiFi AES256 Encryption Vehicle-Mounted IP Mesh Radio 8

1.4GHz 2x40dBm 2U GPS/BD PPT WiFi AES256 Encryption Vehicle-Mounted IP Mesh Radio 9
