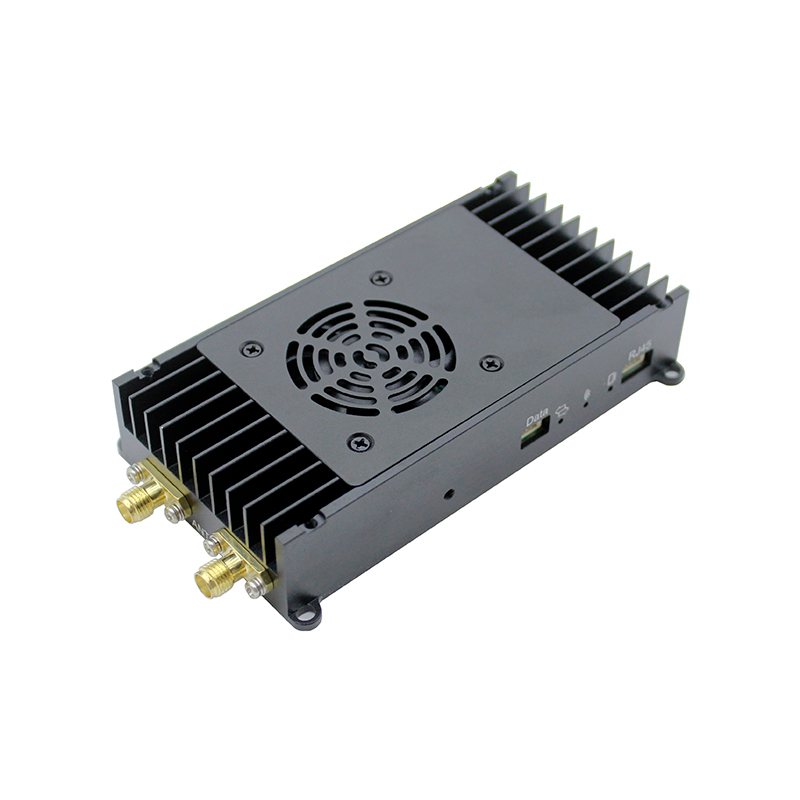

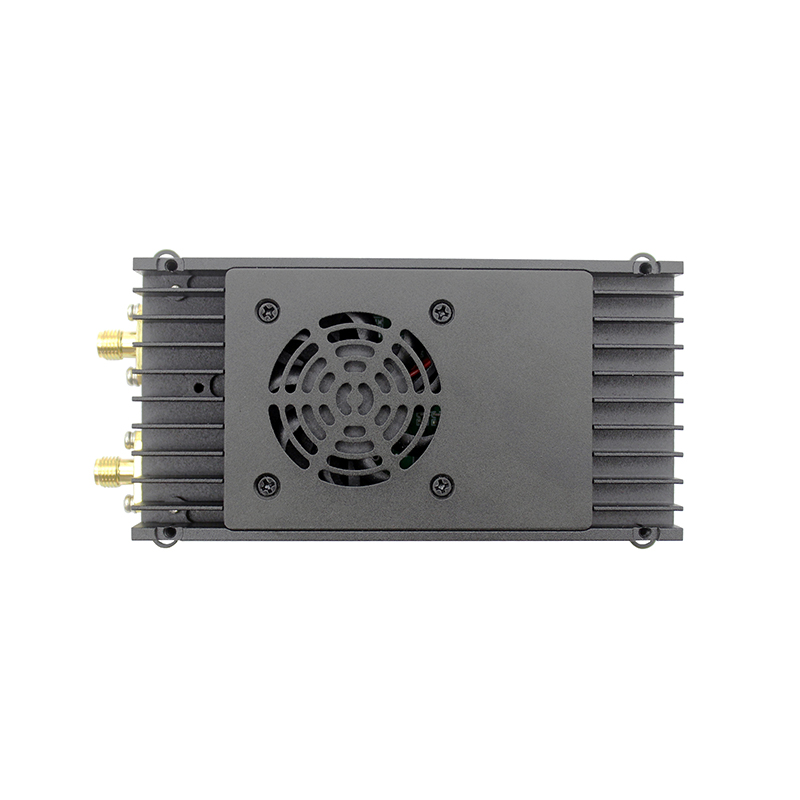

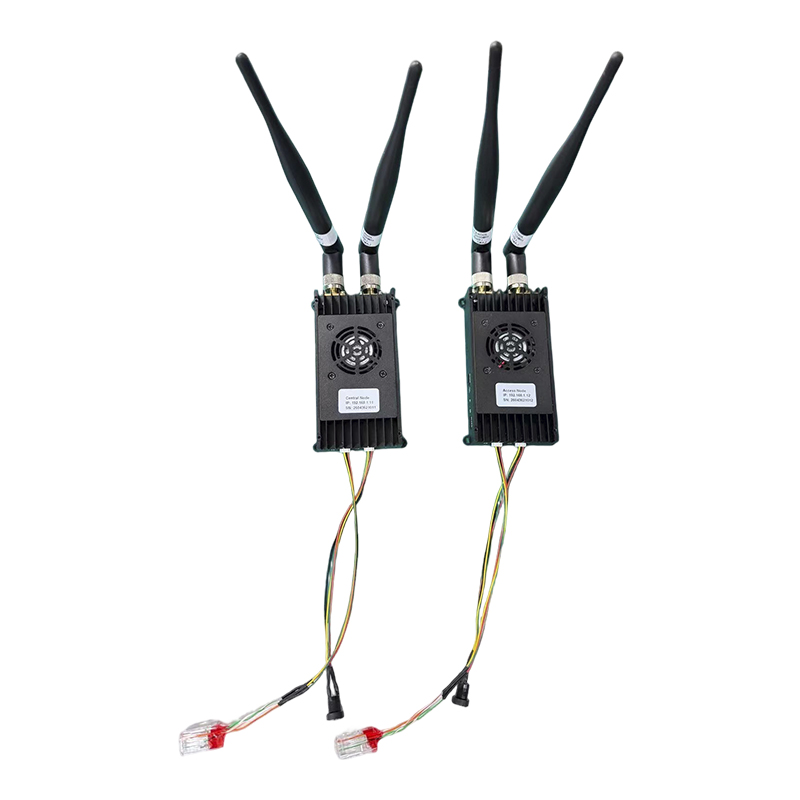

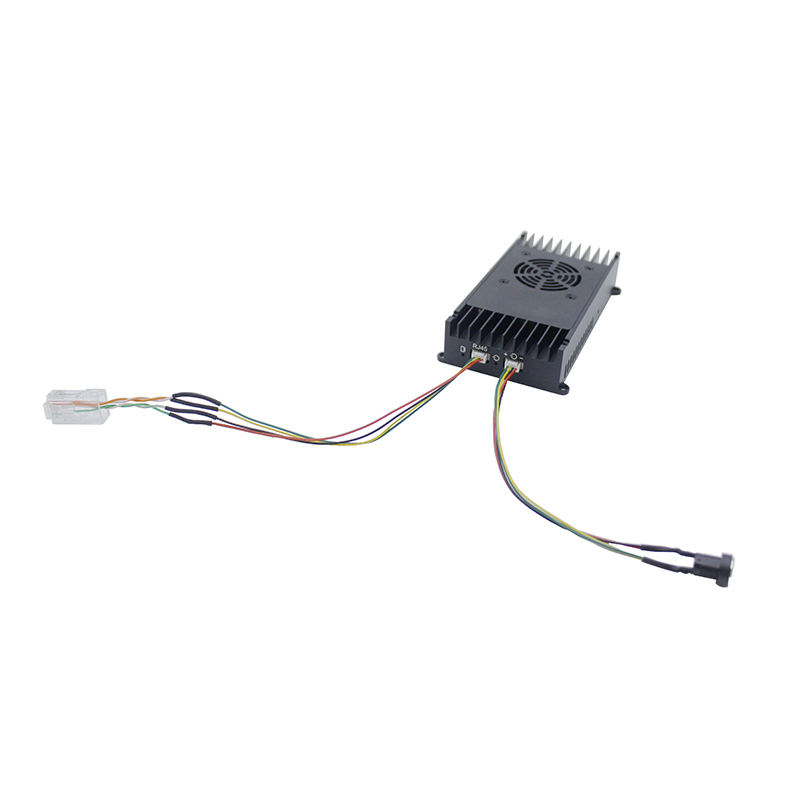

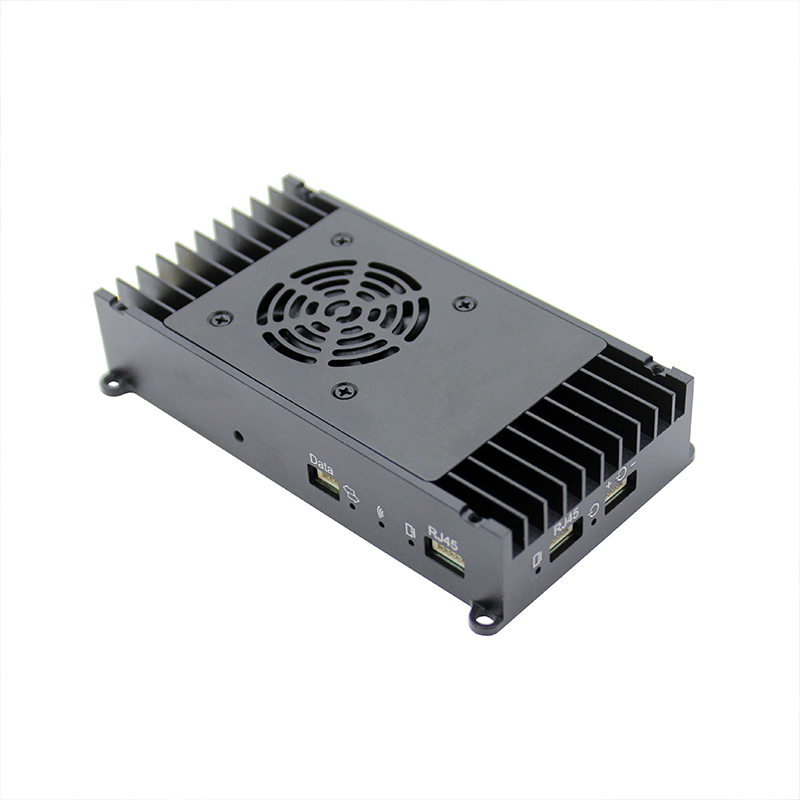

Drone Video UAV Data Link Mini Size Light Weight Low Latency

Product Description

The Drone Video UAV Data Link is an advanced, high-performance communication system engineered specifically for modern unmanned aerial vehicles. Designed to meet the rigorous demands of professional aerial operations, this data link provides a highly reliable foundation for real-time video streaming and telemetry transmission. By balancing stable signal integrity with an ultra-compact form factor, it serves as an ideal solution for drone manufacturers, system integrators, and operators who require dependable communication without sacrificing payload capacity or flight endurance.

Optimized for UAV Platforms: Mini Size, Light Weight, and Low Latency

In the field of UAV design and operation, minimizing payload weight is critical for maximizing flight time and operational efficiency. This data link system features a highly optimized mini size of just 102*52*21.5mm and an ultra-lightweight profile of only 124g. This compact footprint ensures smooth integration into various drone frames, from agile quadcopters to fixed-wing surveillance platforms, leaving ample capacity for additional sensors or larger batteries. Furthermore, the system delivers an impressive ultra-low latency of just 10ms. This near-instantaneous transmission is crucial for applications requiring real-time responsiveness, such as precise remote piloting, dynamic payload control, and critical inspection missions where split-second decision-making is required.

Advanced TDD-OFDM Modulation and Multi-Band Flexibility

Maintaining a stable connection in complex or interference-heavy environments is a primary concern for UAV operators. This system utilizes advanced TDD-OFDM modulation, which provides superior resistance to multipath fading and signal degradation, ensuring reliable connectivity even in challenging urban or mountainous terrains. To further enhance operational adaptability, the data link supports three distinct frequency bands (800MHz, 1.4GHz, and 2.4GHz) and offers five selectable channel bandwidths (1.4/3/5/10/20MHz). This multi-band flexibility allows operators to navigate diverse regional RF regulations and select the optimal frequency to avoid crowded spectrums, thereby significantly reducing the risk of signal loss during critical missions.

Versatile Networking: Simultaneous Video and Serial Data Transmission

Streamlining drone communication architecture is essential for reducing system complexity and potential failure points. This data link goes beyond standard video streaming by supporting both serial data and high-definition video at the same time. This dual-transmission capability allows integrators to consolidate flight controller telemetry and camera gimbal feeds into a single, unified communication link, eliminating the need for redundant radio equipment. Additionally, the system supports highly flexible networking topologies, accommodating standard one-to-one connections as well as complex one-to-many transmission setups. This makes it an ideal choice for coordinated drone swarm operations or scenarios requiring multiple ground control stations to monitor a single aerial feed simultaneously.

Secure Management and Durable Aluminum Housing

Data security and intuitive system management are vital for professional UAV deployments. The data link features user-defined AES128 encryption, safeguarding sensitive video feeds and proprietary telemetry data against unauthorized interception. Operators can easily configure network parameters and monitor system health through a user-friendly WebUI, which eliminates the need for cumbersome proprietary software. Precise uplink and downlink stream control further allows users to optimize bandwidth allocation based on specific mission requirements. All of these sophisticated electronics are securely housed within a rugged aluminum alloy enclosure. This durable housing not only provides effective electromagnetic shielding against internal drone interference but also functions as a highly efficient heatsink, ensuring sustained, reliable operation under demanding thermal conditions.

Features

TDD-OFDM modulation

Supports 3 bands (800MHz/1.4GHz/2.4GHz)

1.4/3/5/10/20MHz five channel bandwidths

Supports one-to-one and one-to-many transmission

Supports serial data and video at the same time

WebUI for management

AES128 encryption (user-defined)

Uplink and downlink stream control

Compact size and light weight

Rugged aluminum alloy housing
