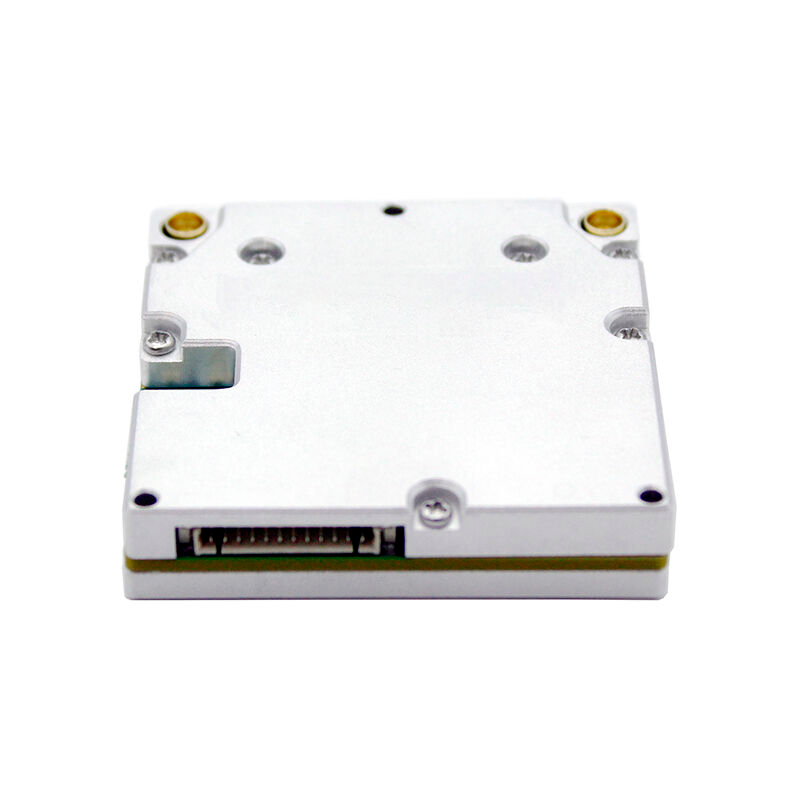

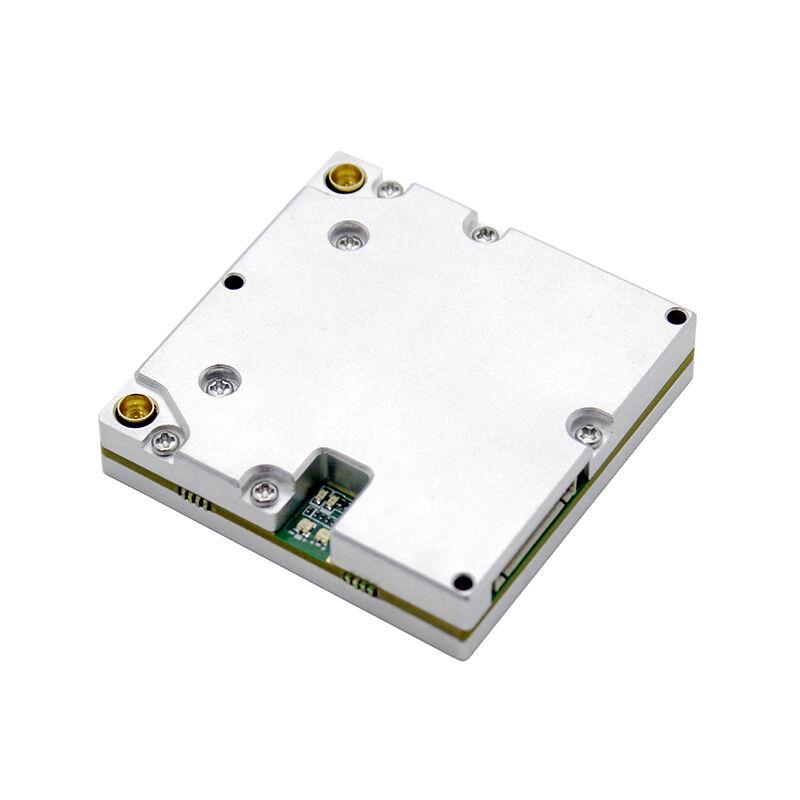

Drone FPV Video Data Link 2.4GHz 5.8GHz 3.3GHz 1.2GHz 900MHz

Product Description

The Drone FPV Video Data Link is an advanced, highly adaptable communication solution engineered specifically for unmanned aerial vehicles (UAVs) and First-Person View (FPV) flight systems. In the demanding field of drone operations, maintaining a stable, high-bandwidth connection for both video and telemetry is critical. This data link system is designed to meet these exact needs, providing operators with a reliable, low-latency bridge between the aircraft and the ground control station. Whether deployed for industrial inspection, aerial surveillance, or long-range FPV navigation, this video data link ensures that critical visual and flight data are transmitted securely and efficiently. By integrating video and data transmission into a single, highly capable unit, it significantly streamlines drone payload architecture and enhances overall mission success rates.

Features & Core Advantages

1. Frequency Customizable for Diverse Environments

Frequency customizable: Operating environments present varying levels of electromagnetic interference and line-of-sight challenges. To address this, our Drone FPV Video Data Link offers highly customizable frequency options, spanning 900MHz, 1.2GHz, 2.4GHz, 3.3GHz, and 5.8GHz. Lower frequencies like 900MHz and 1.2GHz provide superior obstacle penetration and extended range, making them ideal for complex terrains or non-line-of-sight (NLOS) conditions. Conversely, higher bands such as 5.8GHz deliver maximum data throughput for uncompressed, high-definition video streams in clear airspace. This customization capability allows procurement teams to tailor the communication link to specific project requirements and regional RF regulations, ensuring optimal performance and compliance.

2. Optimized for UAV Payloads

Compact in size and lightweight: In UAV design, every gram matters. A heavy payload directly impacts battery life, maneuverability, and overall flight endurance. This video data link is engineered with a strict focus on miniaturization, resulting in a device that is exceptionally compact in size and lightweight. By minimizing the physical footprint and weight burden on the drone, it allows operators to maximize flight times and allocate payload capacity to other essential sensors or larger batteries. This streamlined form factor also simplifies installation within tight drone frames, ensuring that aerodynamic performance remains uncompromised during high-speed FPV maneuvers.

3. Efficient Network Integration

Transparent IP data transmission: Modern drone ecosystems rely heavily on network-based communication. This system features transparent IP data transmission, which acts as a direct, invisible Ethernet connection between the drone and the ground station. This means that any IP-based data-whether it is encrypted video streams, sensor telemetry, or mission control commands-can pass through the link without requiring complex protocol conversions. This transparency significantly reduces integration time for engineers and ensures compatibility with a wide range of standard networking equipment, software platforms, and ground control stations, ultimately lowering the risk of system incompatibility.

4. Consolidated Communication Architecture

Supports TTL serial pass-through: Beyond high-definition video, maintaining a continuous flow of flight telemetry and control data is vital for safe UAV operations. This data link explicitly supports TTL serial pass-through, enabling the simultaneous, bi-directional transmission of serial data alongside the video feed. This feature is particularly valuable for connecting flight controllers, GPS modules, or specialized payload gimbals directly to the ground station. By consolidating video and serial data into a single RF link, it eliminates the need for a secondary telemetry radio, reducing onboard RF interference, saving weight, and simplifying the drone's overall electronic architecture.

5. High-Definition Visual Clarity

Supports network camera input: Visual clarity is paramount for FPV flying and aerial data collection. To support optimal video feeds, this system natively supports network camera input. Operators can easily connect standard IP cameras directly to the data link, bypassing the need for analog-to-digital converters or additional video processing boards. This direct digital pipeline ensures that the video retains its high definition, sharpness, and low latency from the camera lens to the operator's screen. It is an ideal setup for applications requiring precise visual inspection, target tracking, or immersive FPV piloting, providing a clear and reliable visual reference in real-time.

Designed for professional integrators and demanding aerial applications, this multi-band Drone FPV Video Data Link delivers the stability, flexibility, and performance required for modern unmanned systems. By offering tailored frequencies and comprehensive data integration in a highly portable form factor, it stands as a critical component for ensuring mission success and operational reliability in the field.

Technical Parameters

Review the detailed technical specifications of our Drone FPV Video Data Link below. Engineered for reliable and high-speed data transmission, this system provides flexible frequency options ranging from 900MHz to 5.8GHz, robust TDD-COFDM+2T2R waveforms, and an ultra-low MESH link delay of under 20ms per hop. These precise specifications are provided to help engineers and procurement teams verify system compatibility for professional UAV operations requiring stable, high-bandwidth video feeds.

Product Video Demonstration

Watch the demonstration below to see the Drone FPV Video Data Link in action. This video provides a direct visual reference of the system's operational stability, compact form factor, and real-time transmission capabilities, assisting you in evaluating its performance for your specific project requirements.

FAQ
