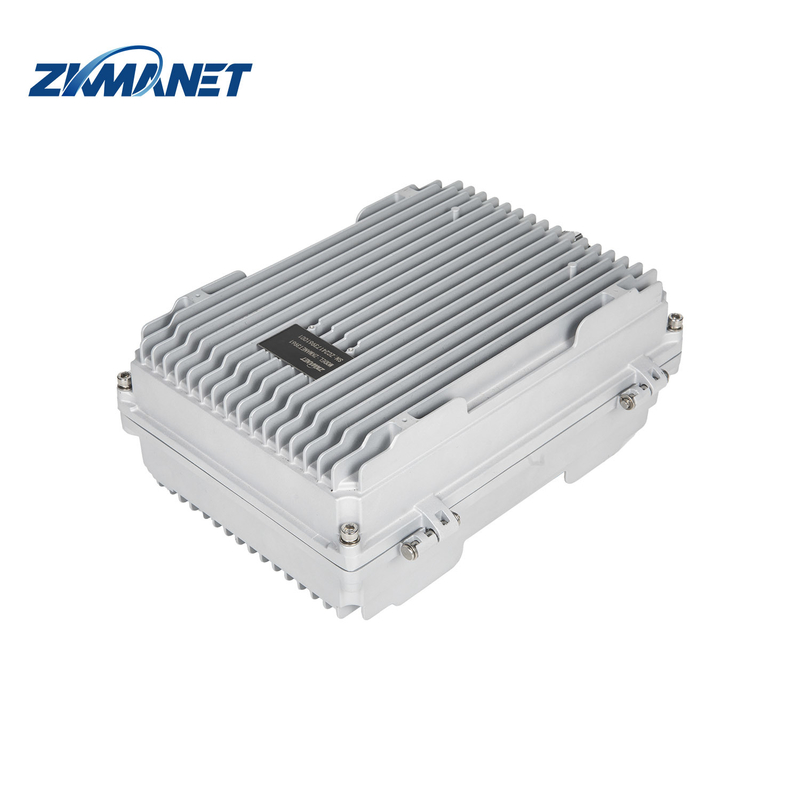

Drone Data Link with 96Mbps Throughput & Waterproof Connector

Name: Drone Data Link with 96Mbps Throughput & Waterproof Connector
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKMANET3561
Price: 999 USD
Availability: InStock

Product Details

Brand Name: ZKMANET

Certification: CE

Model Number: ZKMANET3561

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2

Price: 999USD/PC

Packaging Details: Carton

Delivery Time: 5-15days

Payment Terms: TT

Supply Ability: 100000pcs/year

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                Drone Data Link waterproof connector, Drone Data Link 96Mbps throughput, Drone Data Link high-speed transmission


Power Interface:	Waterproof Aviation Connector	Working Temp:	-20℃- +60℃
Working Method:	Point To Point Or Point To Multipoints, Multipoints To Multipoints	Power Consumption:	<95w
Working Voltage:	DC12V	Intelligent Frequency Selection(IFS):	Optional
Lan Interface:	RJ452,TTL3	Max Throughput:	48-96Mbps (Max)

Power Interface:	Waterproof Aviation Connector
Working Temp:	-20℃- +60℃
Working Method:	Point To Point Or Point To Multipoints, Multipoints To Multipoints
Power Consumption:	<95w
Working Voltage:	DC12V
Intelligent Frequency Selection(IFS):	Optional
Lan Interface:	RJ452,TTL3
Max Throughput:	48-96Mbps (Max)

Drone Data Link with 96Mbps Throughput & Waterproof Connector

FPGA MESH Outdoor Base Station MANET Long Range RF Radio

Key Specifications

Power Interface	Waterproof Aviation Connector
Working Temp	-20℃ - +60℃
Working Method	Point To Point Or Point To Multipoints, Multipoints To Multipoints
Power Consumption	<95w
Working Voltage	DC12V
Intelligent Frequency Selection(IFS)	Optional
Lan Interface	RJ452, TTL3
Max Throughput	48-96Mbps (Max)

Product Overview

The FPGA MESH Outdoor Base Station is a high-performance MANET long-range RF radio solution designed for demanding communication applications. With versatile interface options including LAN/TTL and HDMI, this system ensures compatibility with a wide range of devices and systems, allowing for seamless integration into existing setups.

Featuring long-range transmission distance that can be customized to specific requirements, this base station establishes stable and robust connections over extended distances. With a maximum throughput of 48-96Mbps, it enables high-speed data transfer for real-time communication and data exchange.

Key Features

High-Speed Data Transfer: Max throughput of 48-96Mbps
Versatile Connectivity: LAN/TTL and HDMI interfaces
Robust Construction: 6.5kg durable design
Energy Efficient: Power consumption <95w
Advanced Security: Optional Frequency Hopping (FHSS)

Technical Parameters

Transmission Distance	Long Range (customizable)
Modulation Types	QPSK(4QAM), 16QAM, 64QAM
Working Voltage	DC12V
Lan Interface	RJ452, TTL3
Dimensions	300×238×133mm
Frequency Hopping (FHSS)	Optional
Power Consumption	<95w
Power Interface	Waterproof Aviation Connector
Working Method	Point To Point Or Point To Multipoints, Multipoints To Multipoints
Operating Temperature	-20℃ to +60℃

Applications

The FPGA MESH Outdoor Base Station is ideal for UAV data relay and control link applications, providing seamless connections between ground control stations and unmanned aerial vehicles. Its robust performance makes it suitable for:

Aerial surveillance and monitoring
Search and rescue operations
Agricultural monitoring
Industrial inspections
Military communications

With CE certification and a working temperature range of -20℃ to +60℃, this product delivers reliable performance in various environmental conditions. The optional Frequency Hopping (FHSS) feature enhances security and interference resistance for mission-critical applications.
