Wireless Video Data Links for Drones & UAV COFDM Video Receiver Transmitter

Name: Wireless Video Data Links for Drones & UAV COFDM Video Receiver Transmitter
Brand: Zhongke Lianxun (Shenzhen) Technology Co., Ltd
SKU: ZKManet1303R
Price: 2,999.00 USD
Availability: InStock

Product Details

Place of Origin: Guangdong, China

Brand Name: ZKManet

Certification: CE, ISO9001

Model Number: ZKManet1303R

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1piece

Price: USD 1999~3999

Packaging Details: carton

Delivery Time: 3-7 work days

Payment Terms: T/T, Western Union

Supply Ability: 10000 pieces per year

Get Best Price

Product Details

Product Description

Highlight:

Modulation:	COFDM	Modulation Type:	QPSK(4QAM), 16QAM, 64QAM
Frequency:	200MHz-860MHz (Default 700MHz) 860MHz-2.7GHz For Customization	Sensitivity:	-106dBm@2MHz
RF Bandwidth:	2MHz-8MHz	FEC:	1/2, 2/3, 3/4, 7/8
Guard Interval:	1/4, 1/8, 1/16, 1/32

Modulation:	COFDM
Modulation Type:	QPSK(4QAM), 16QAM, 64QAM
Frequency:	200MHz-860MHz (Default 700MHz) 860MHz-2.7GHz For Customization
Sensitivity:	-106dBm@2MHz
RF Bandwidth:	2MHz-8MHz
FEC:	1/2, 2/3, 3/4, 7/8
Guard Interval:	1/4, 1/8, 1/16, 1/32

Wireless Video Data Links for Drones & UAV COFDM Video Receiver Transmitter

I. Product Introduction

The ZKManet1303R is a miniature COFDM wireless receiver with dual antenna diversity reception. It transmits HDMI/AV video with low latency. It operates in all environments including high speed mobile (NLOS) in a rugged, compact and lightweight housing.

Wireless Video Data Links for Drones & UAV COFDM Video Receiver Transmitter 0

II. Product Features

* High reception sensitivity

* AES256 encryption

* HDMI and CVBS video outputs

* TF card and USB video recording support

* COFDM and H.264 technology

* Rugged aluminium housing

* Low system latency

* Long transmission distance, can transmit 1-3km in open environment, ground to air can transmit 10-25KM;

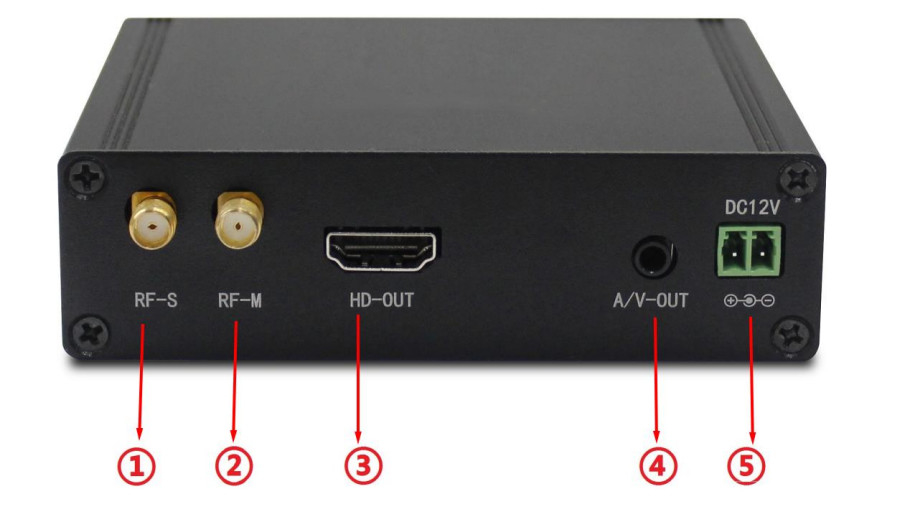

III. Product Details

Dimensions

Wireless Video Data Links for Drones & UAV COFDM Video Receiver Transmitter 2

Wireless Video Data Links for Drones & UAV COFDM Video Receiver Transmitter 3

IV. Product Parameters

Transmission Characteristics
Modulation	COFDM
Modulation Type	QPSK(4QAM), 16QAM, 64QAM
Frequency	200MHz-860MHz (Default 700MHz) 860MHz-2.7GHz for customization
Sensitivity	-106dBm@2MHz
RF Bandwidth	2MHz-8MHz
FEC	1/2, 2/3, 3/4, 7/8
Guard Interval	1/4, 1/8, 1/16, 1/32
Data Characteristics
Video Input	HDMI: 1080p/1080i/720p/720i AV : 720x480/60i (NTSC), 720x576/50i (PAL)
Video Compression	H.264
Parameter Settings	Using the USB programmer
Encryption	AES256 (user-defined password)
Electrical Characteristics
Working Voltage	DC6V-15V
Working Current	≤0.2A (@12V)
Power Consumption	≤2.37dBm
Physical Characteristics
Weight	≤248g
Dimensions	105x89.5x30mm
Working Temp.	-20°C~70°C

V. Packages Content

Item	Quantity
ZKManet-1303R Receiver	1
5dBi Omni FRP Antenna	2
USB Programmer	1
12V DC Power Adapter	1
AV Cable	1
HDMI Cable	1
